Home >> Chevrolet >> 2009 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Coil >> Diagrams

Ignition Coil: Diagrams




Component Connector End Views

Ignition Coil/Module 1





Ignition Coil/Module 2

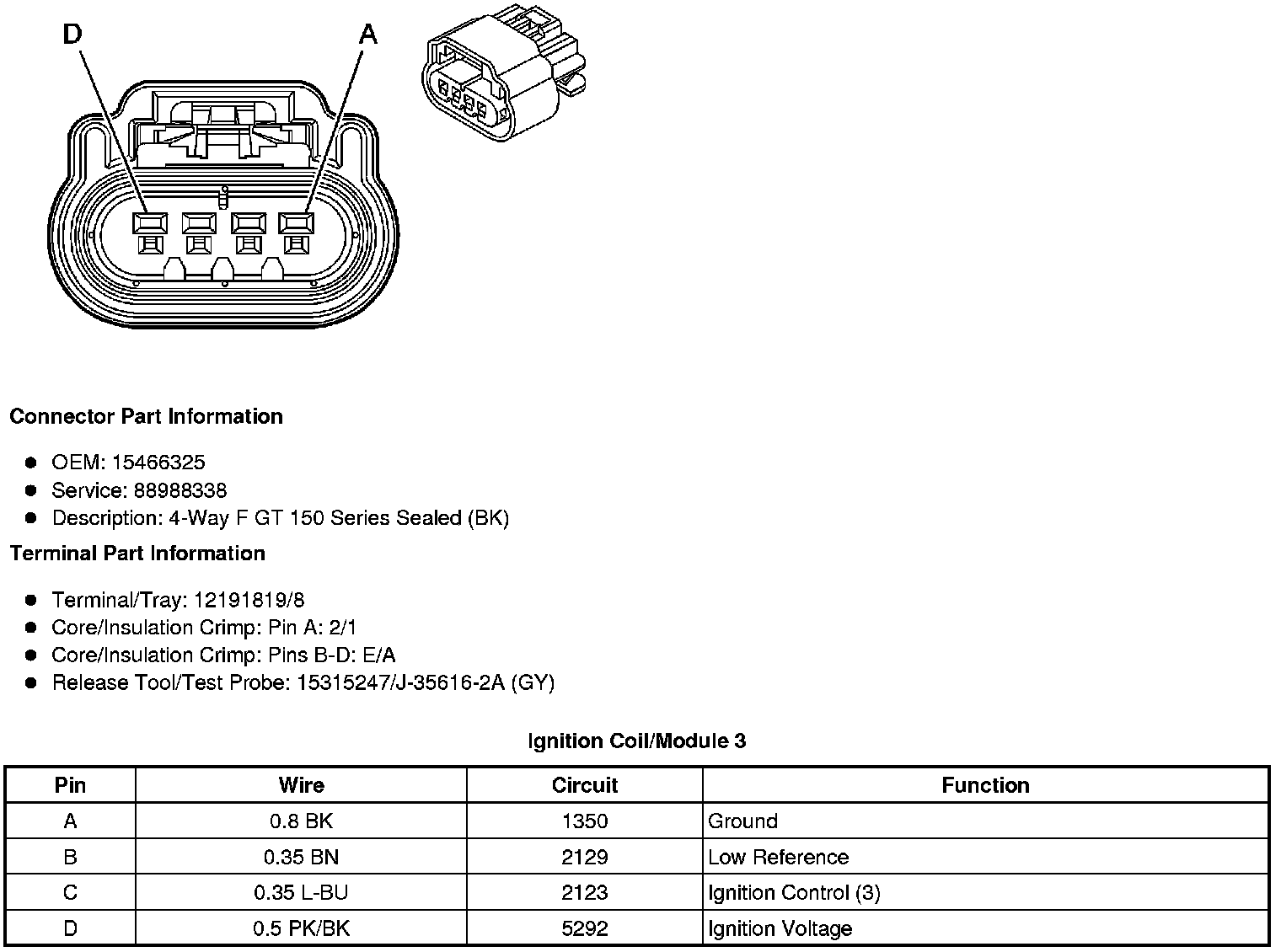

Ignition Coil/Module 3

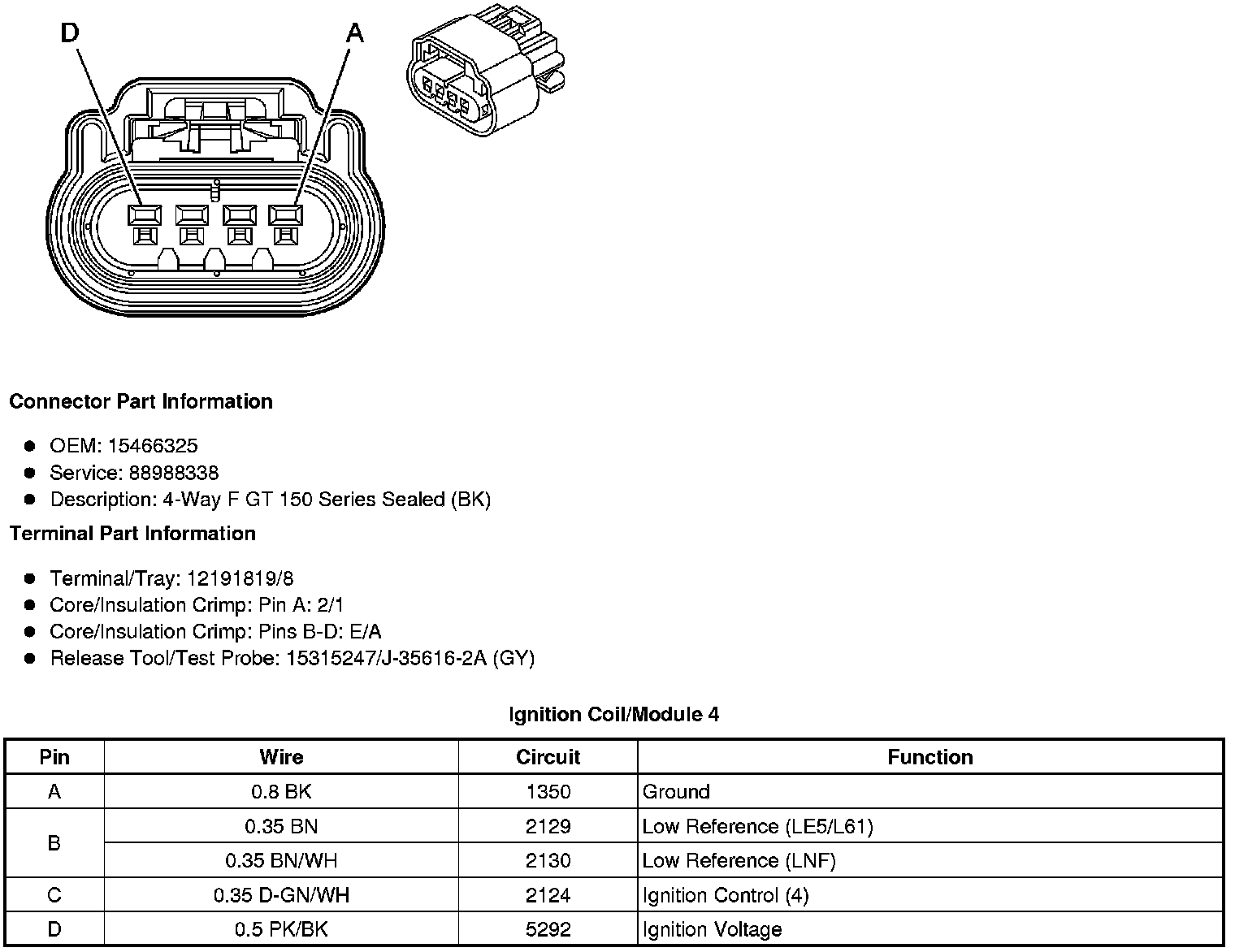

Ignition Coil/Module 4
