Canister Purge Solenoid: Diagrams




Component Connector End Views

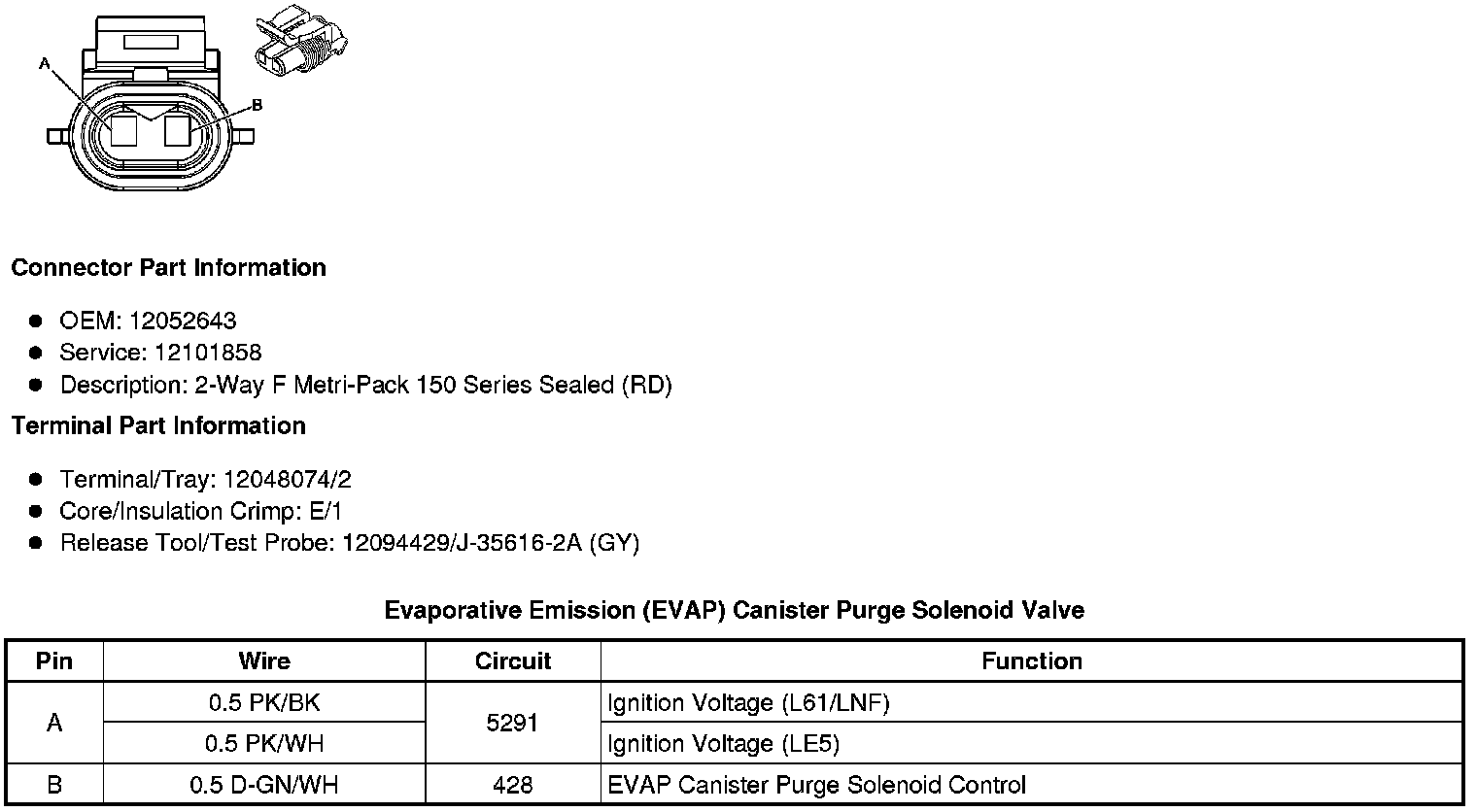

Evaporative Emission (EVAP) Canister Purge Solenoid Valve
