Air Injection Pump: Diagrams




Component Connector End Views

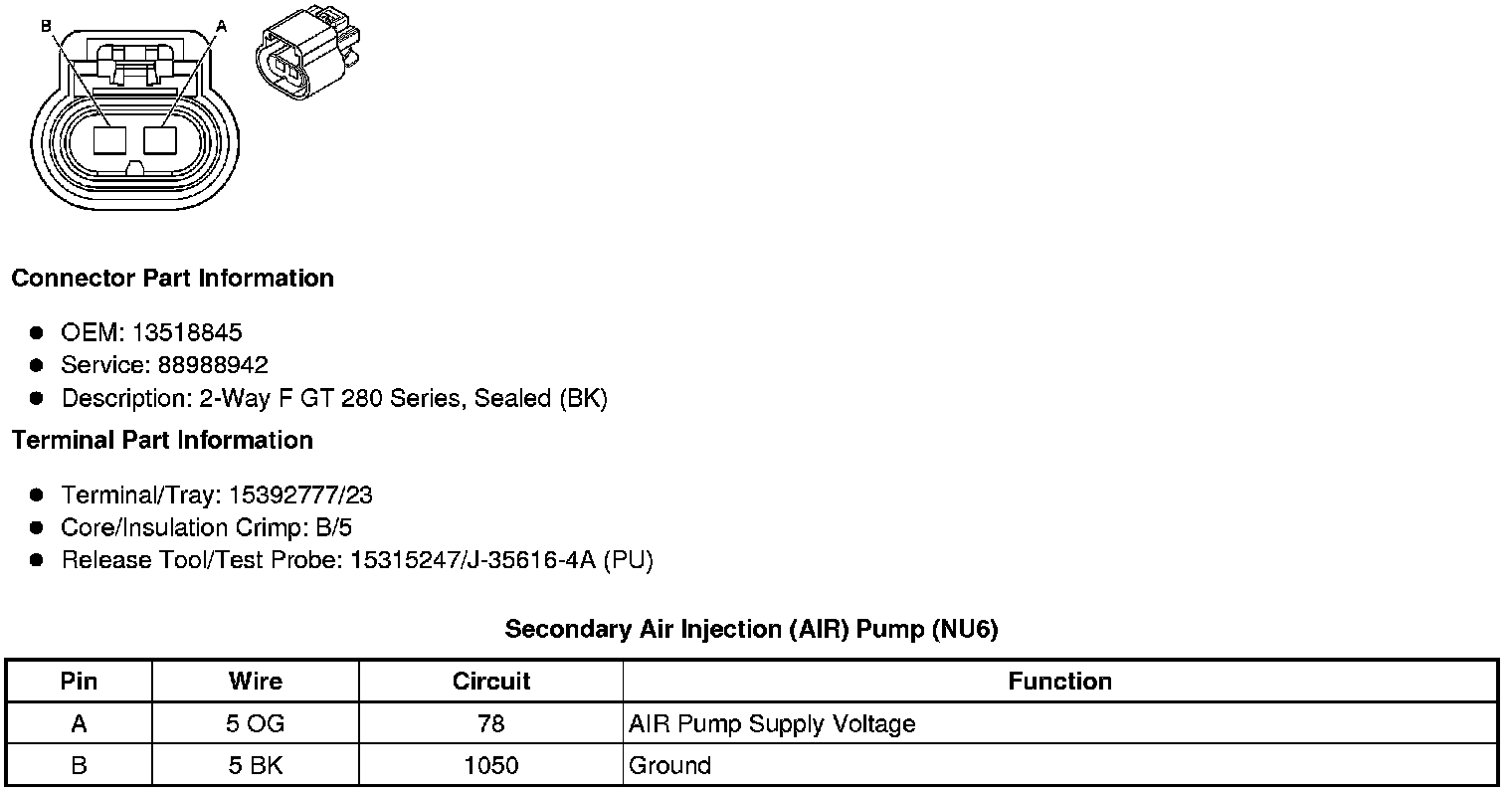

Secondary Air Injection (AIR) Pump (NU6)

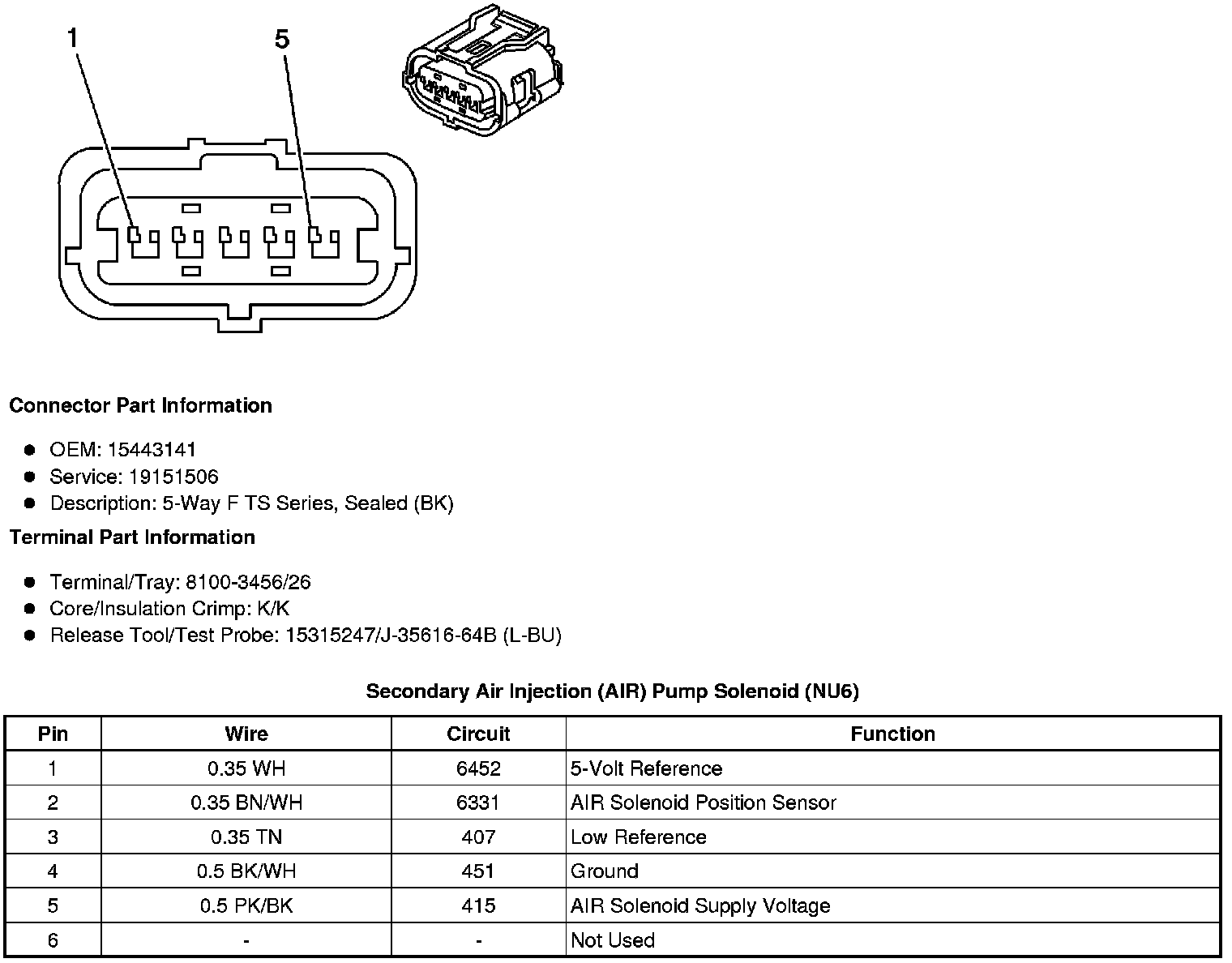

Secondary Air Injection (AIR) Pump Solenoid (NU6)
