Home >> Chevrolet >> 2009 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Mode 6 Data

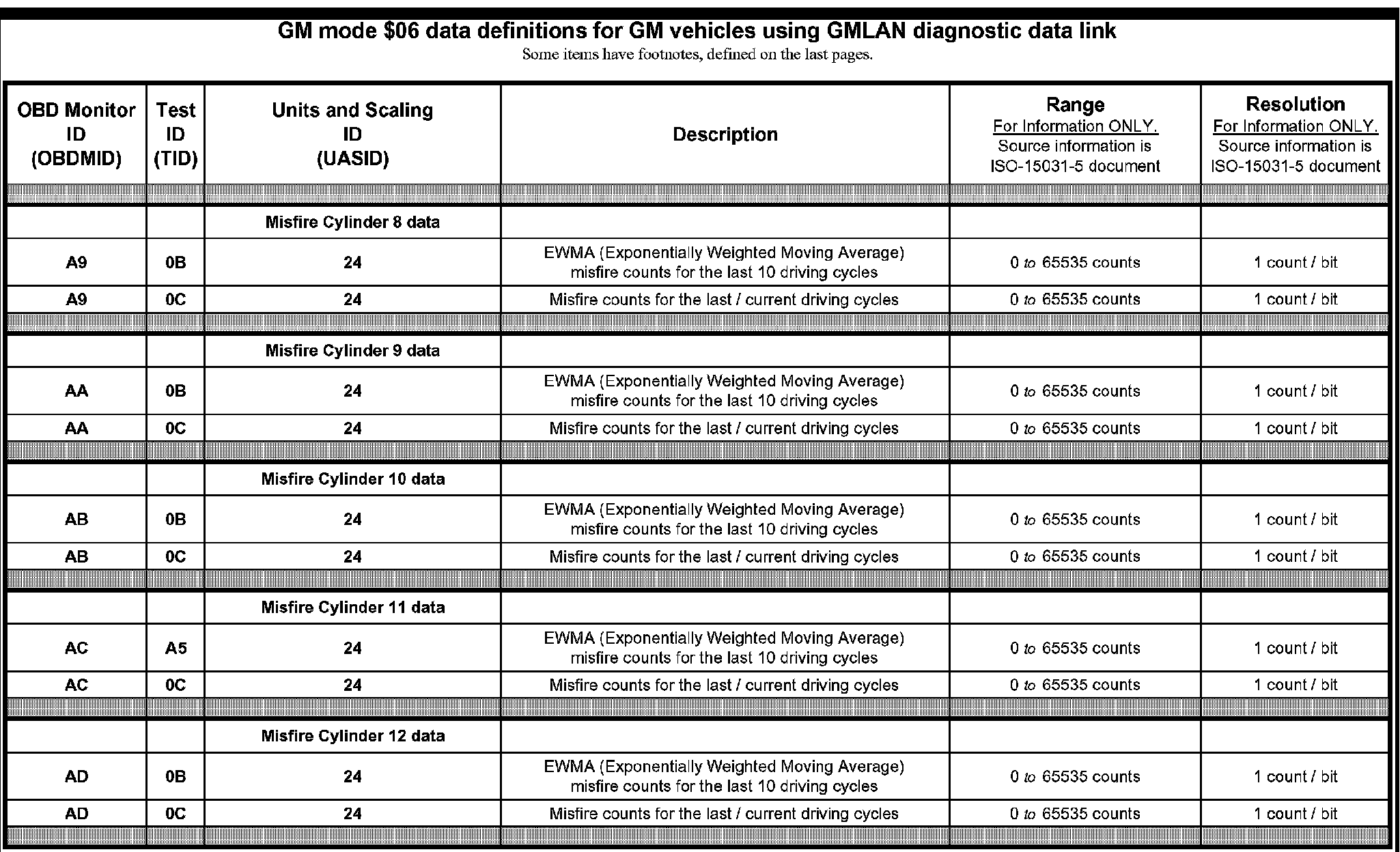

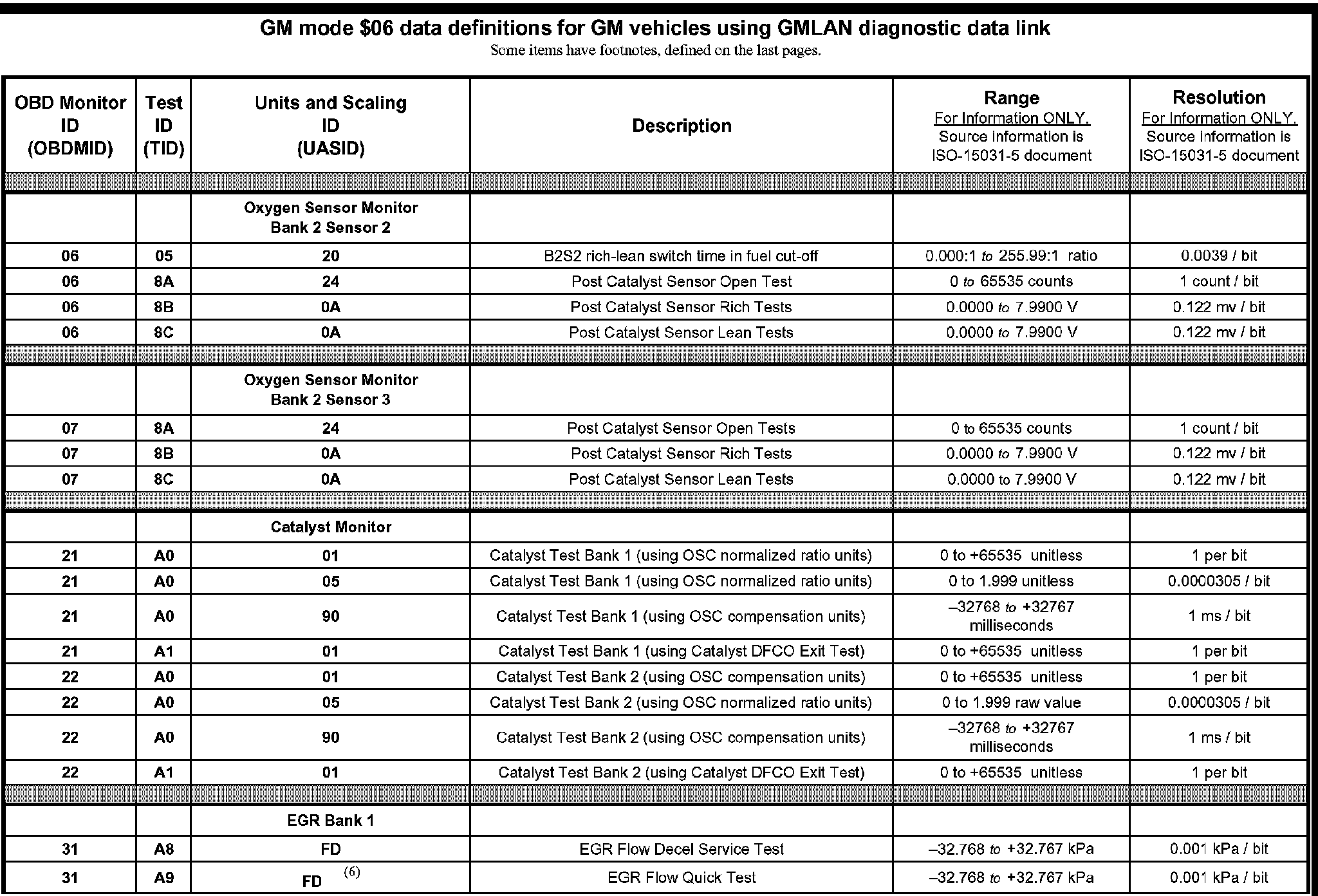

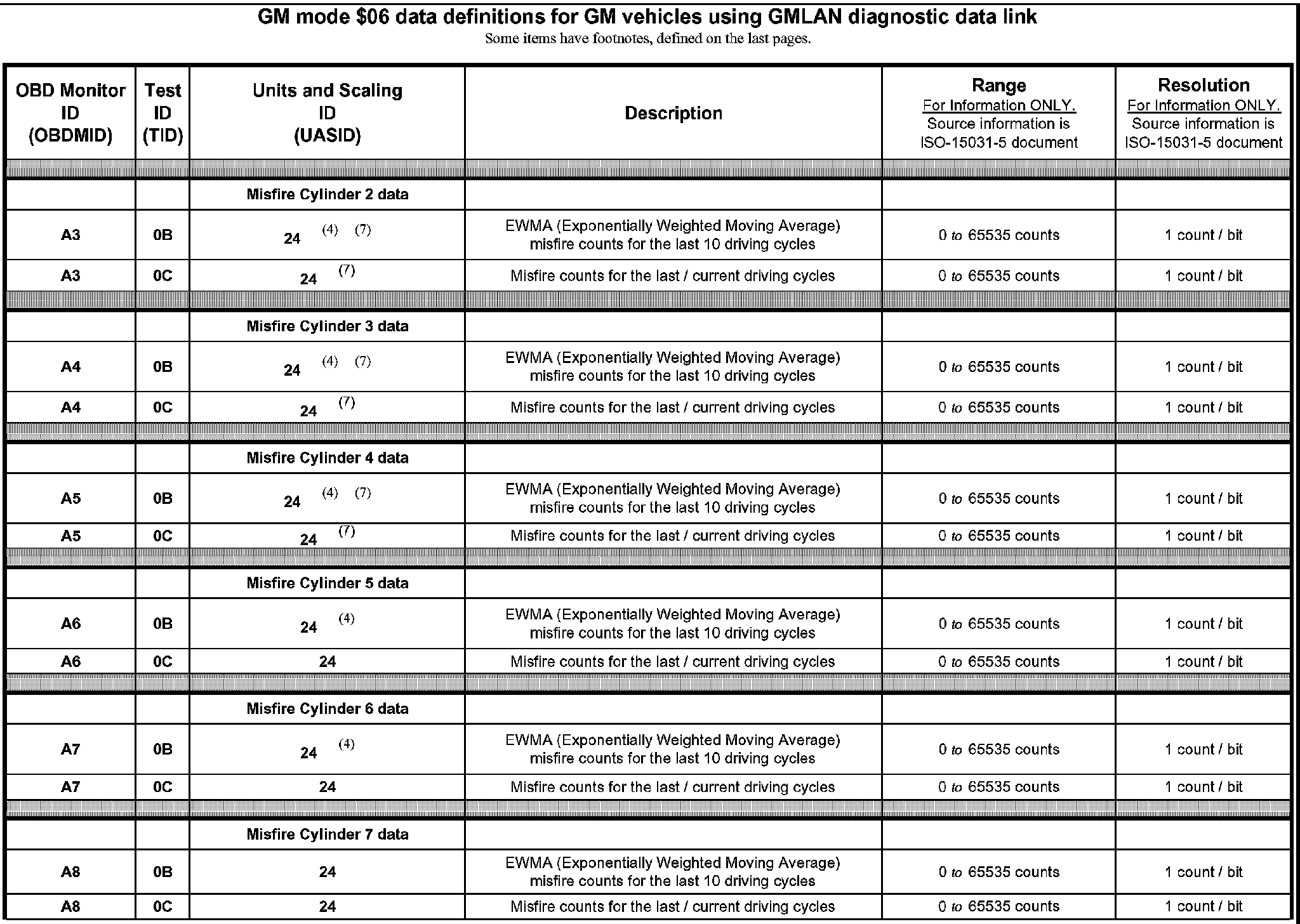

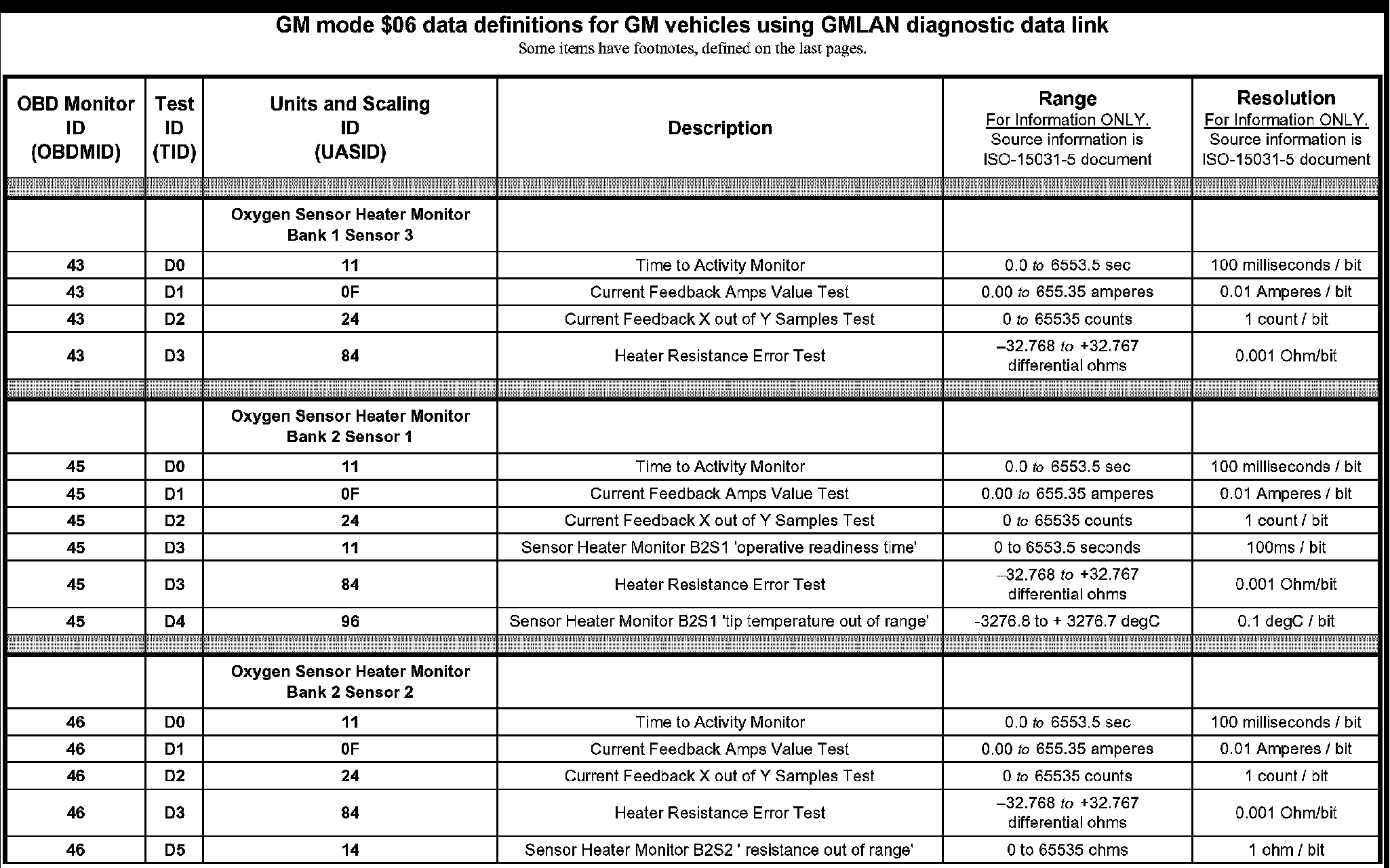

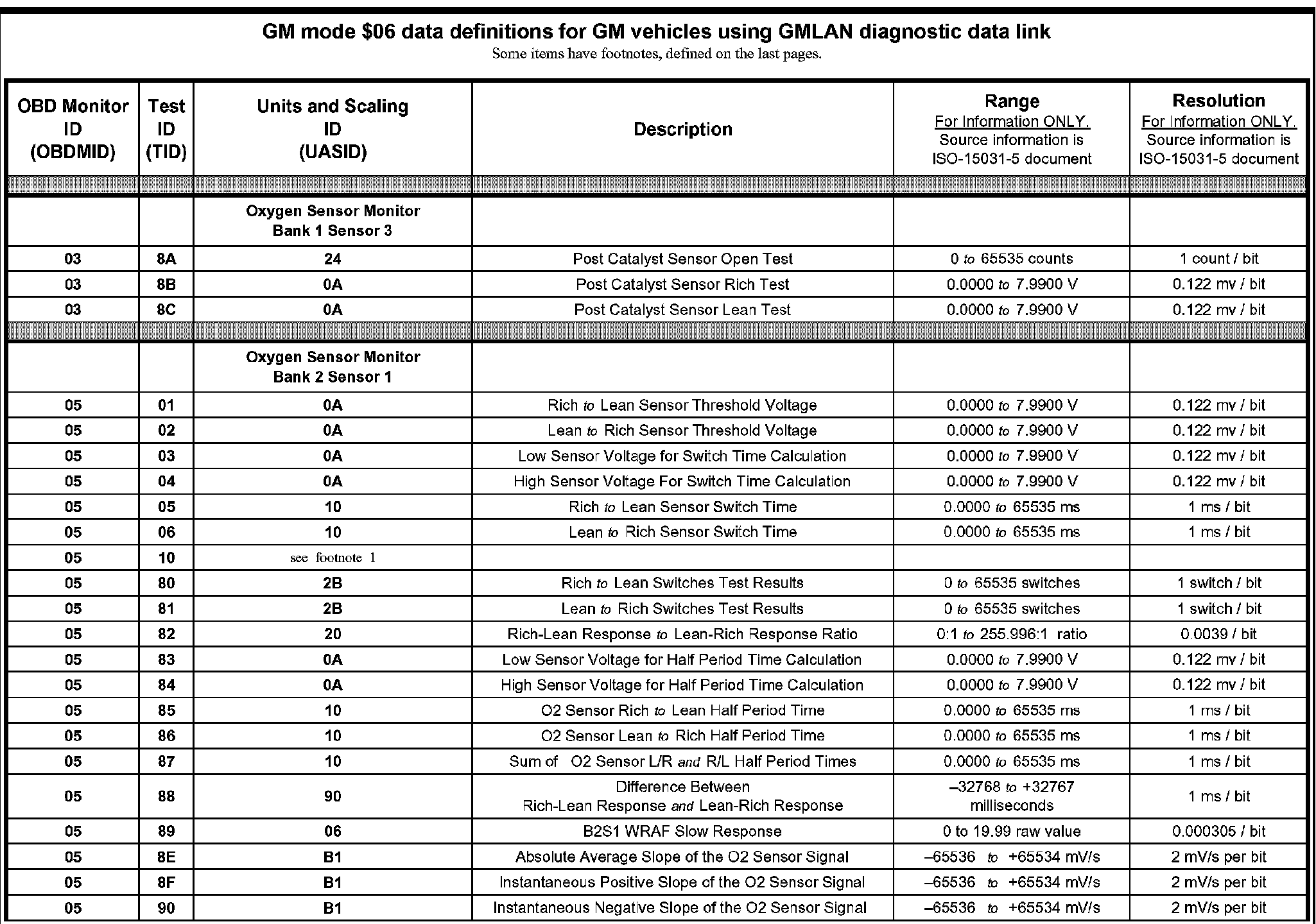

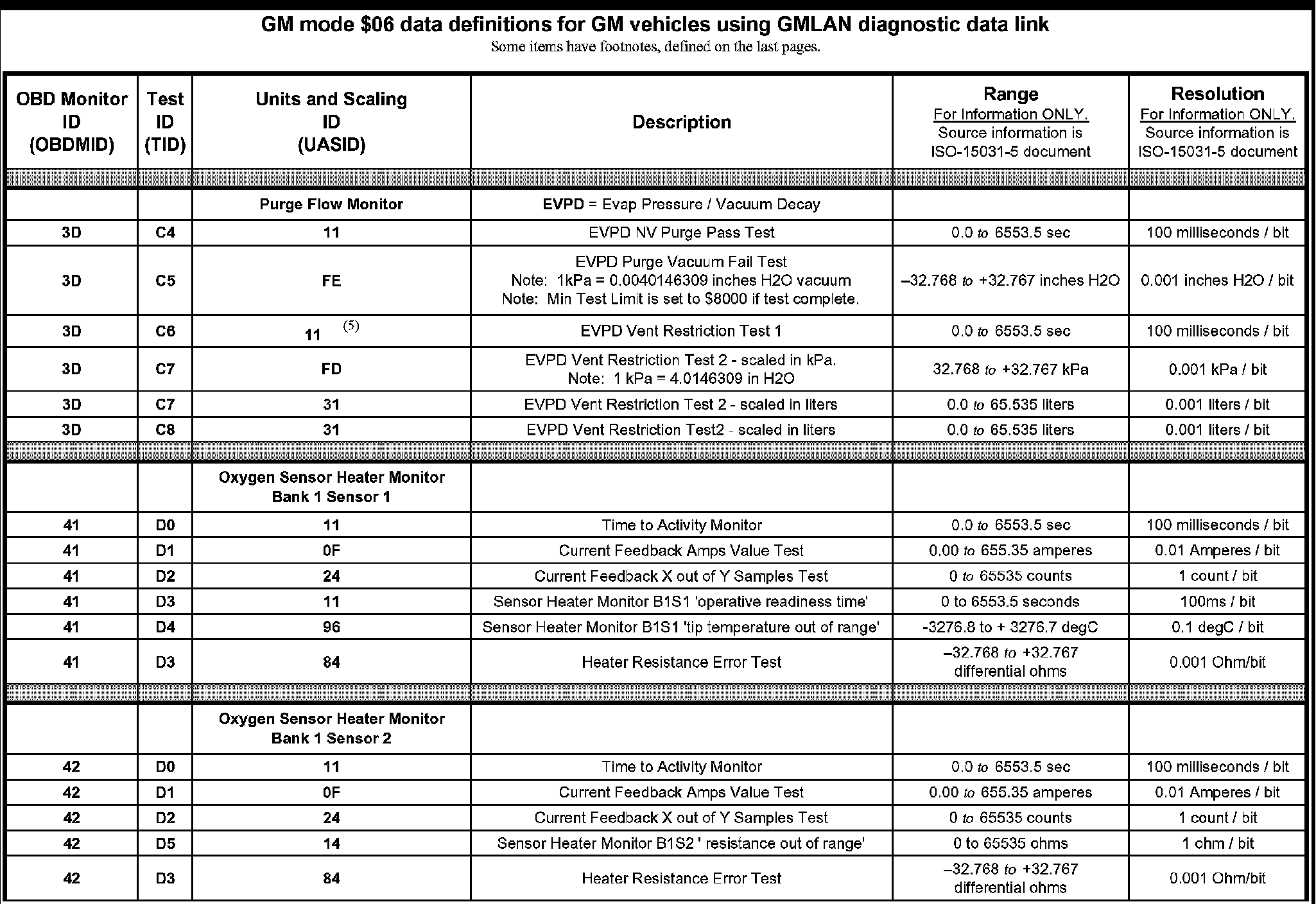

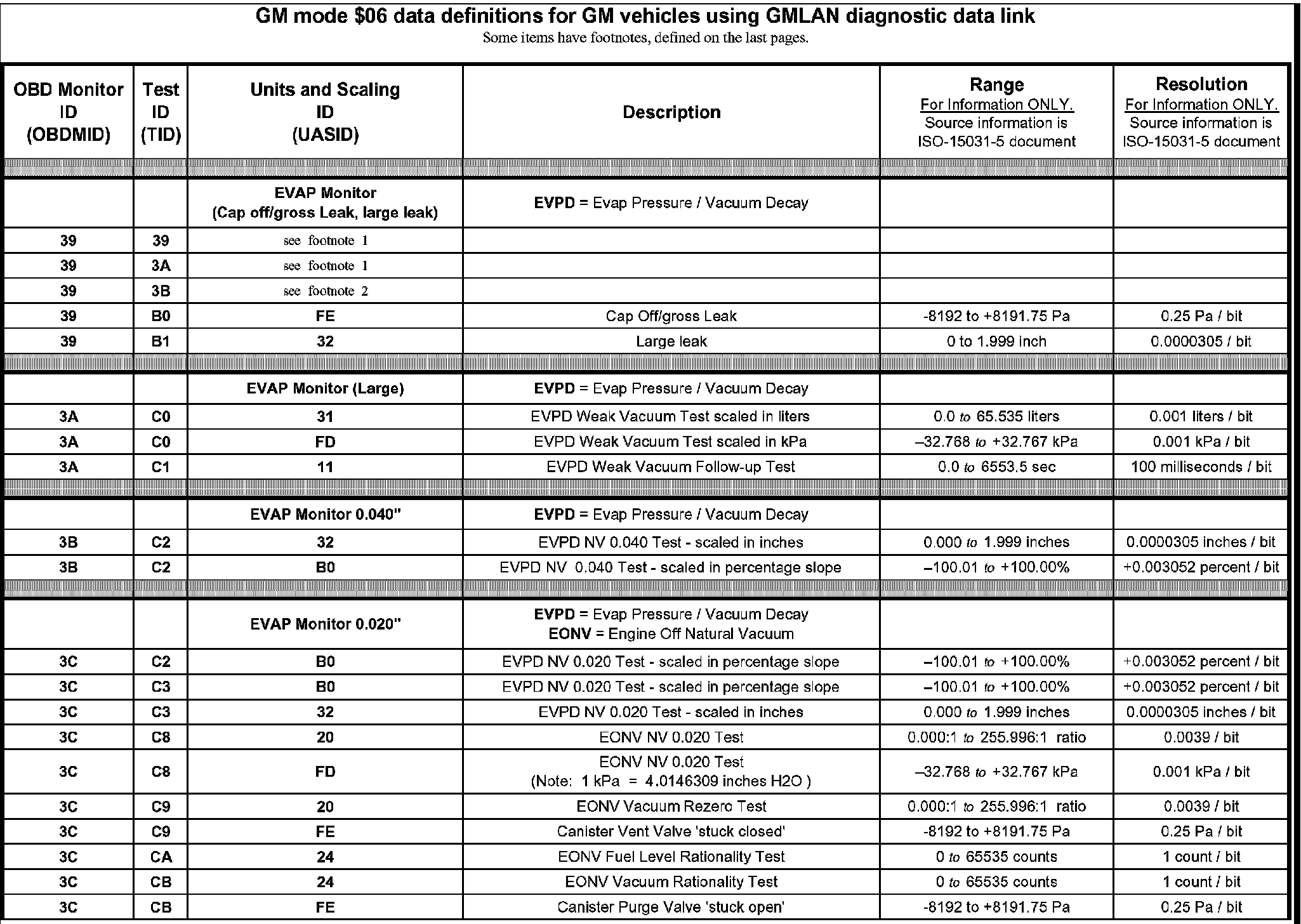

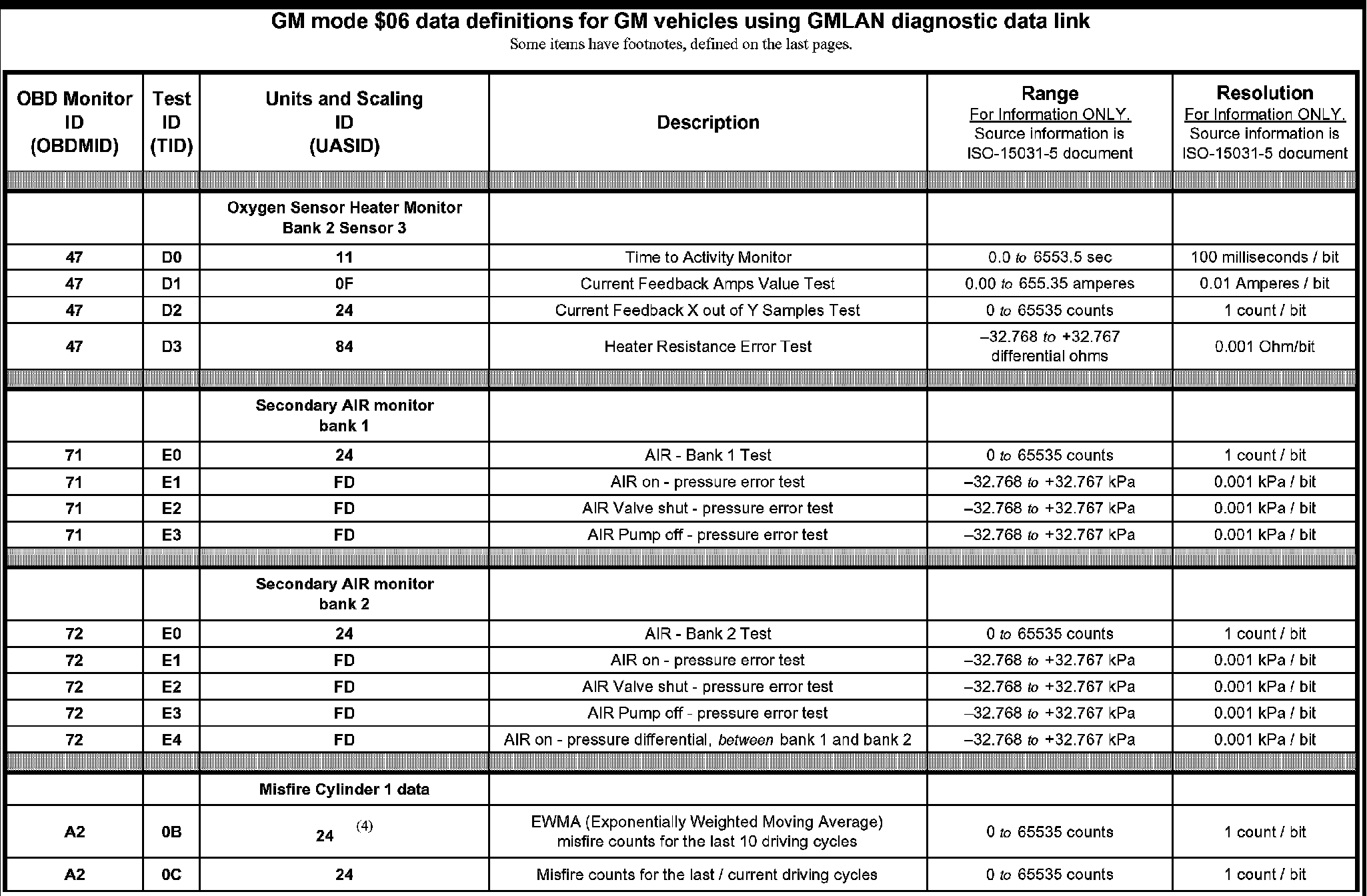

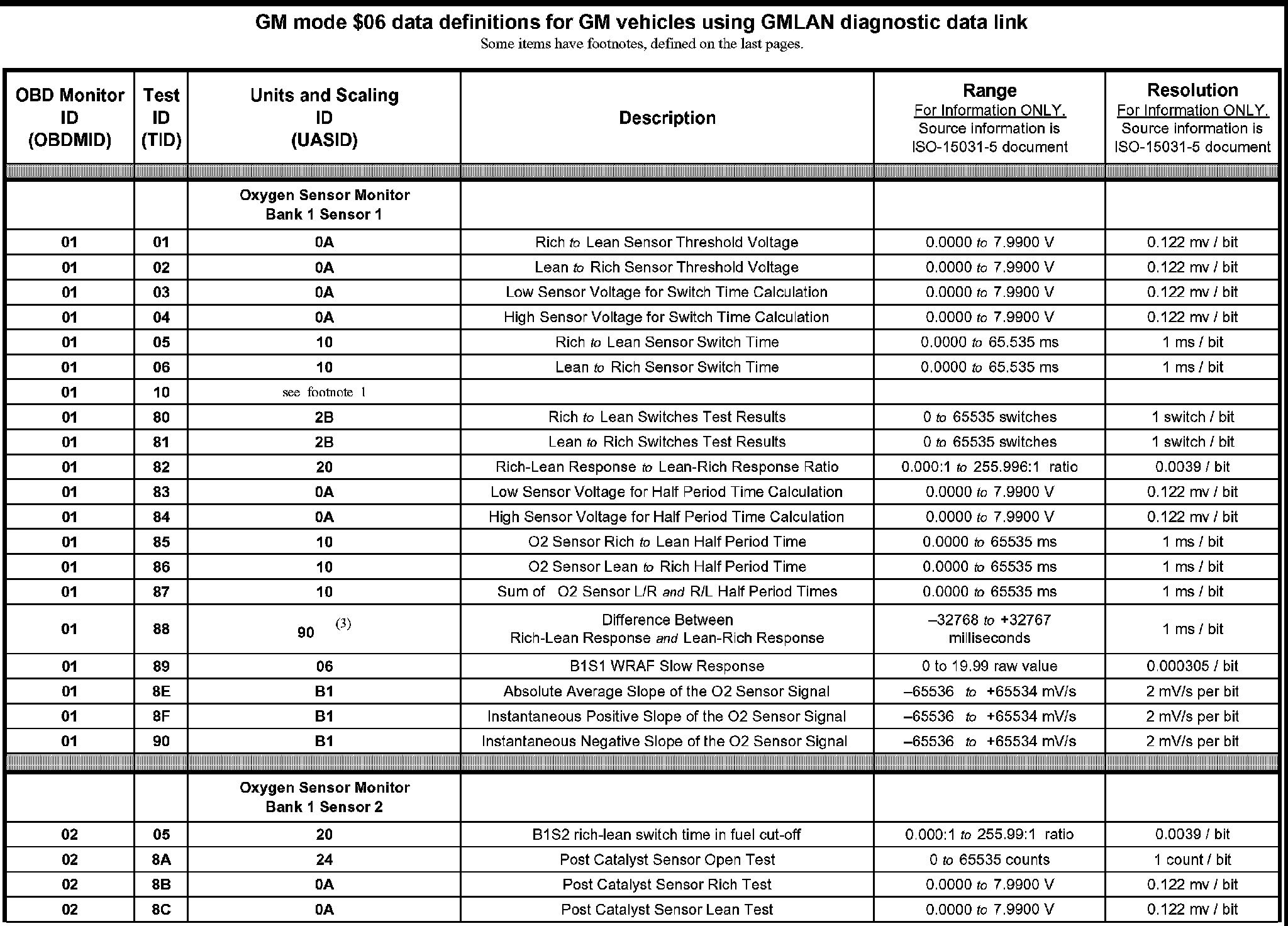

Mode 6 Data

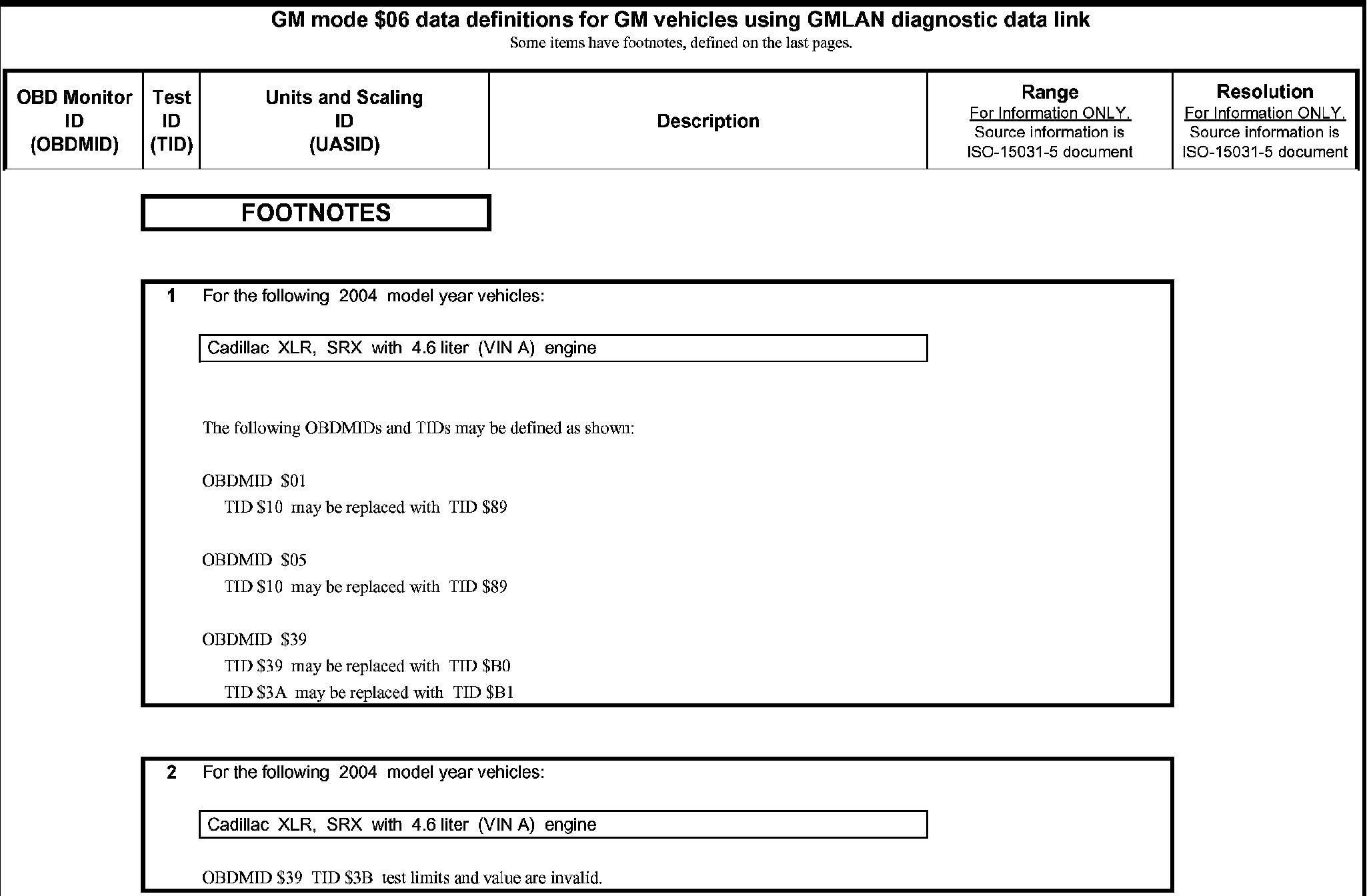

Footnotes 1 & 2:

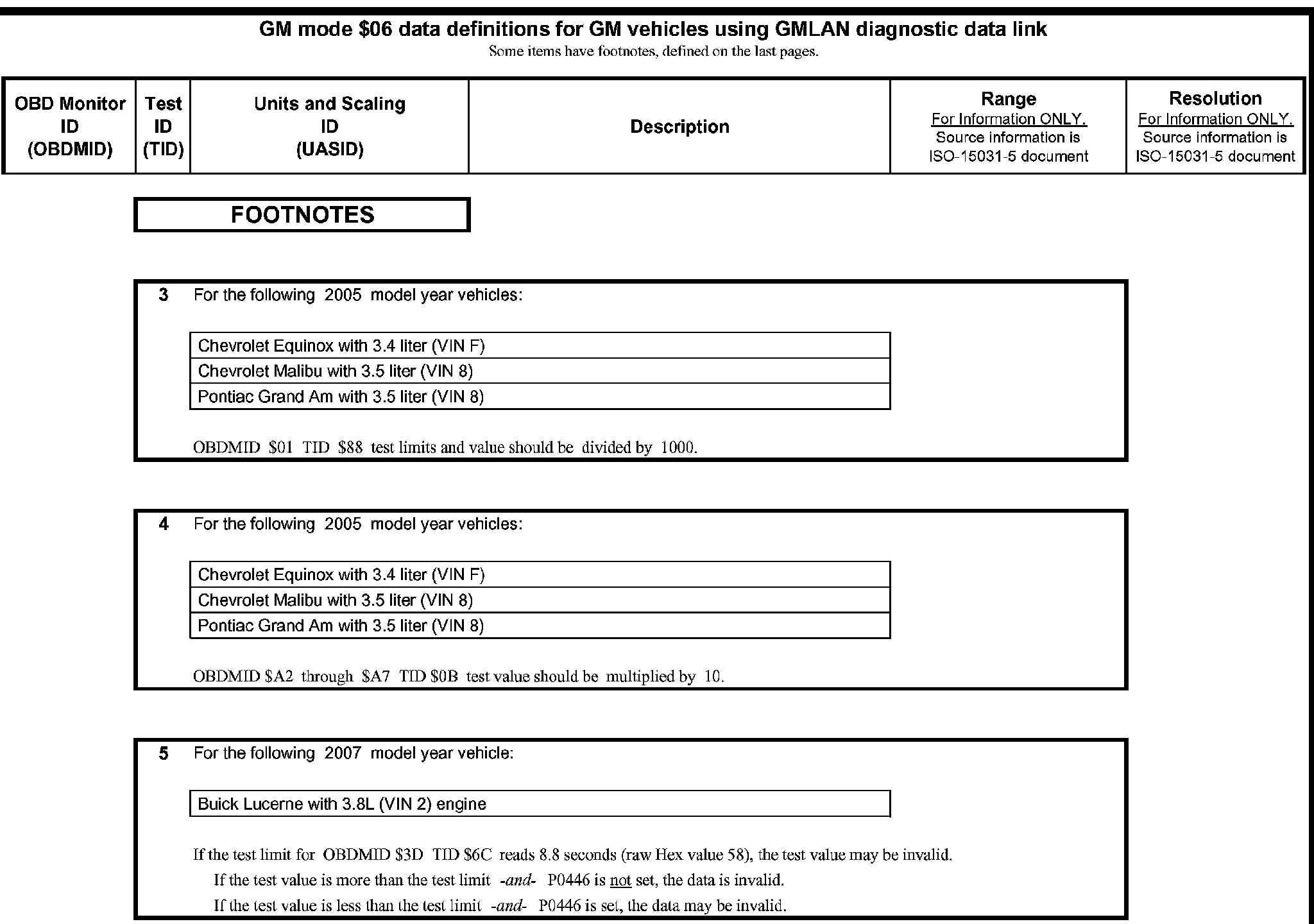

Footnotes 3, 4 And 5:

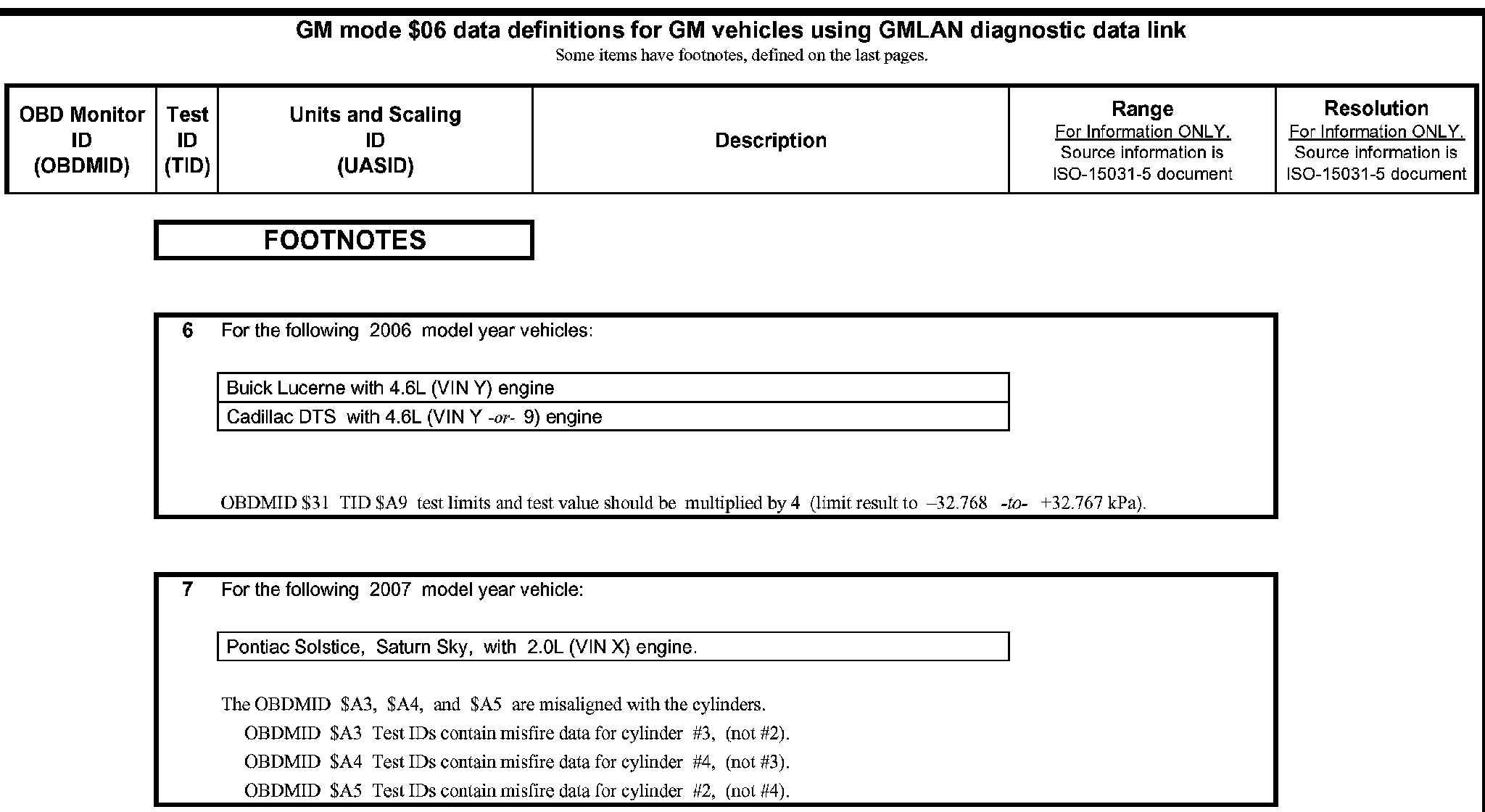

Footnotes 6 & 7:
