X170

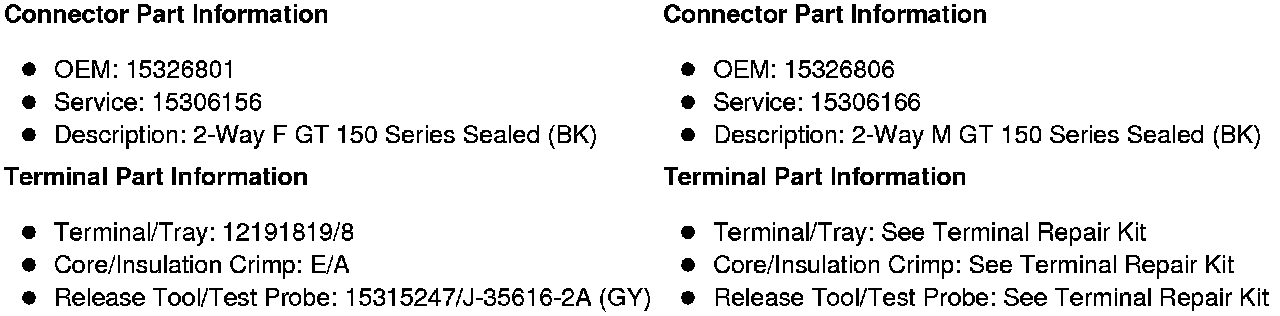

Inline Harness Connector End Views

X170 Body Harness to the Right Front WSS Harness (JM4, JL4 or JL9)
