Locations
>>
Splice Locations
>>
Master Splice List
Master Splice List
Master Electrical Component List

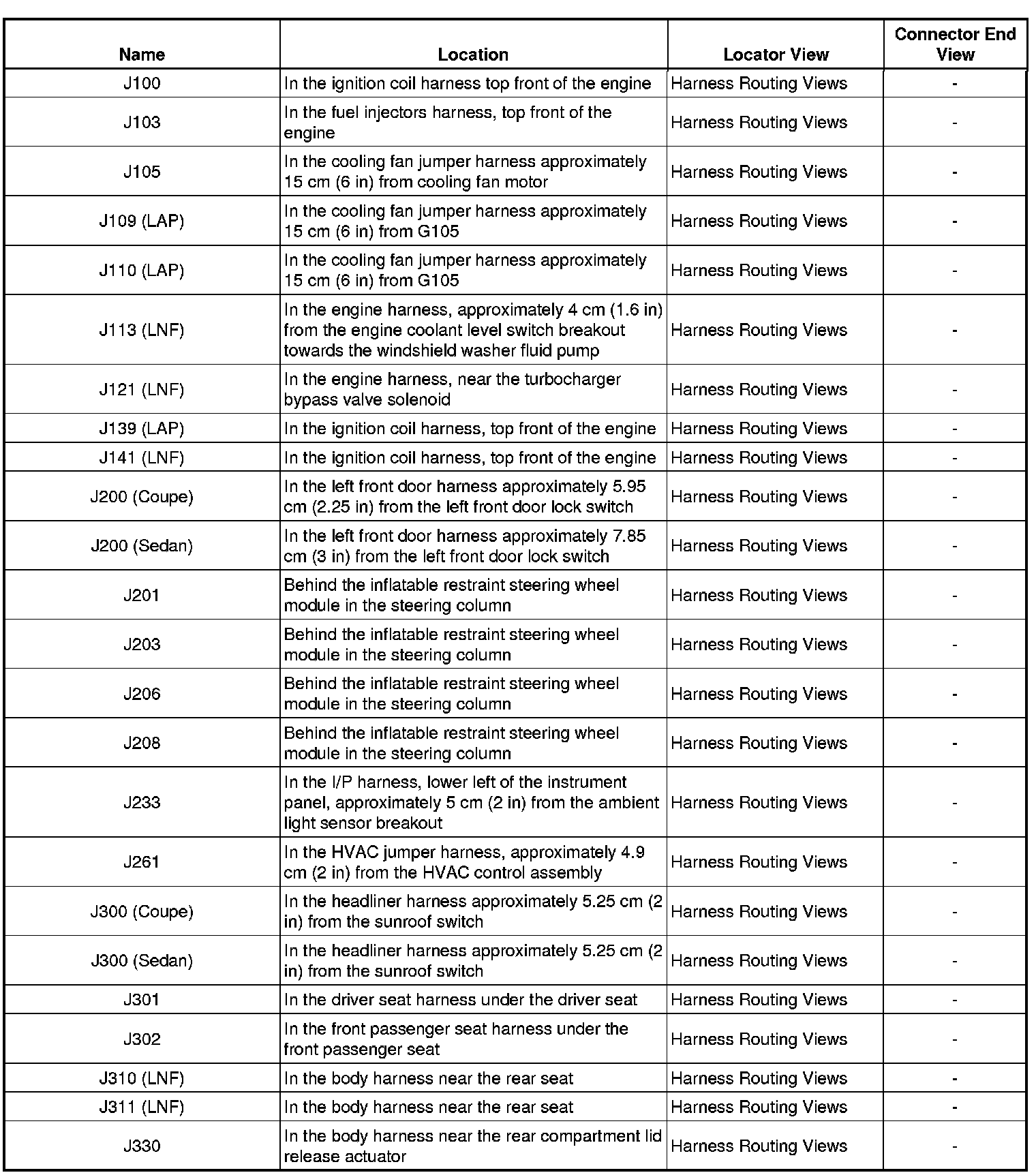

J100 - J330:

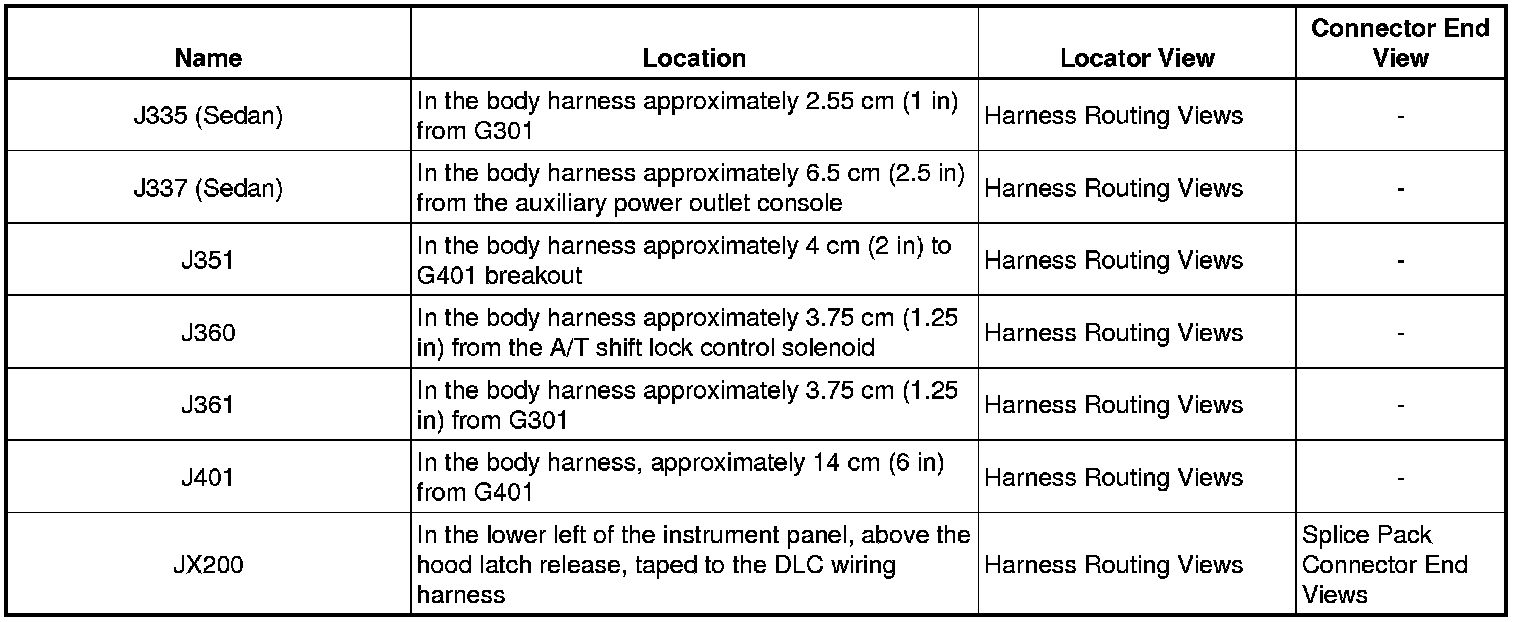

J335 - JX200:
