Headlamp: Diagrams




Component Connector End Views

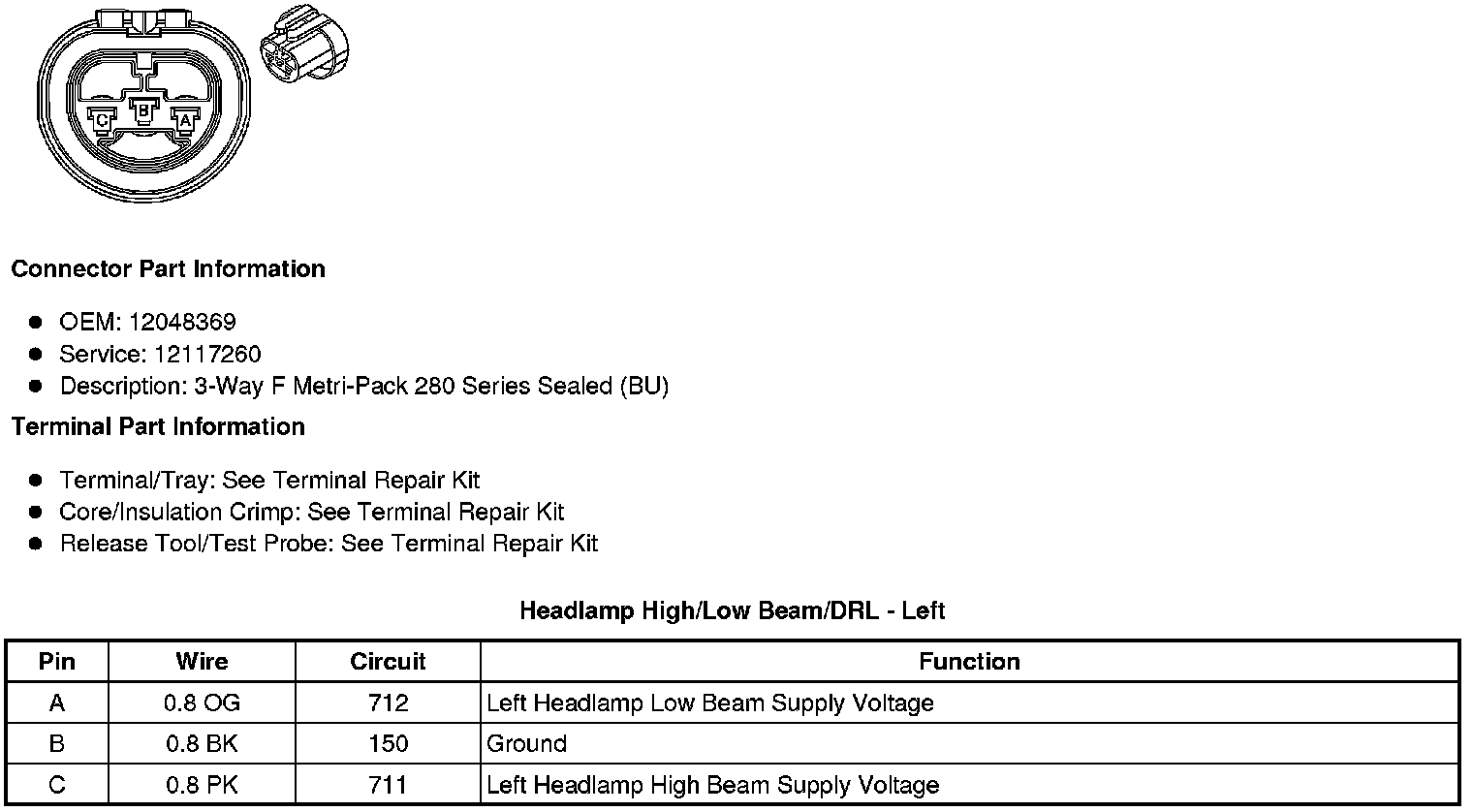

Headlamp High/Low Beam/DRL - Left

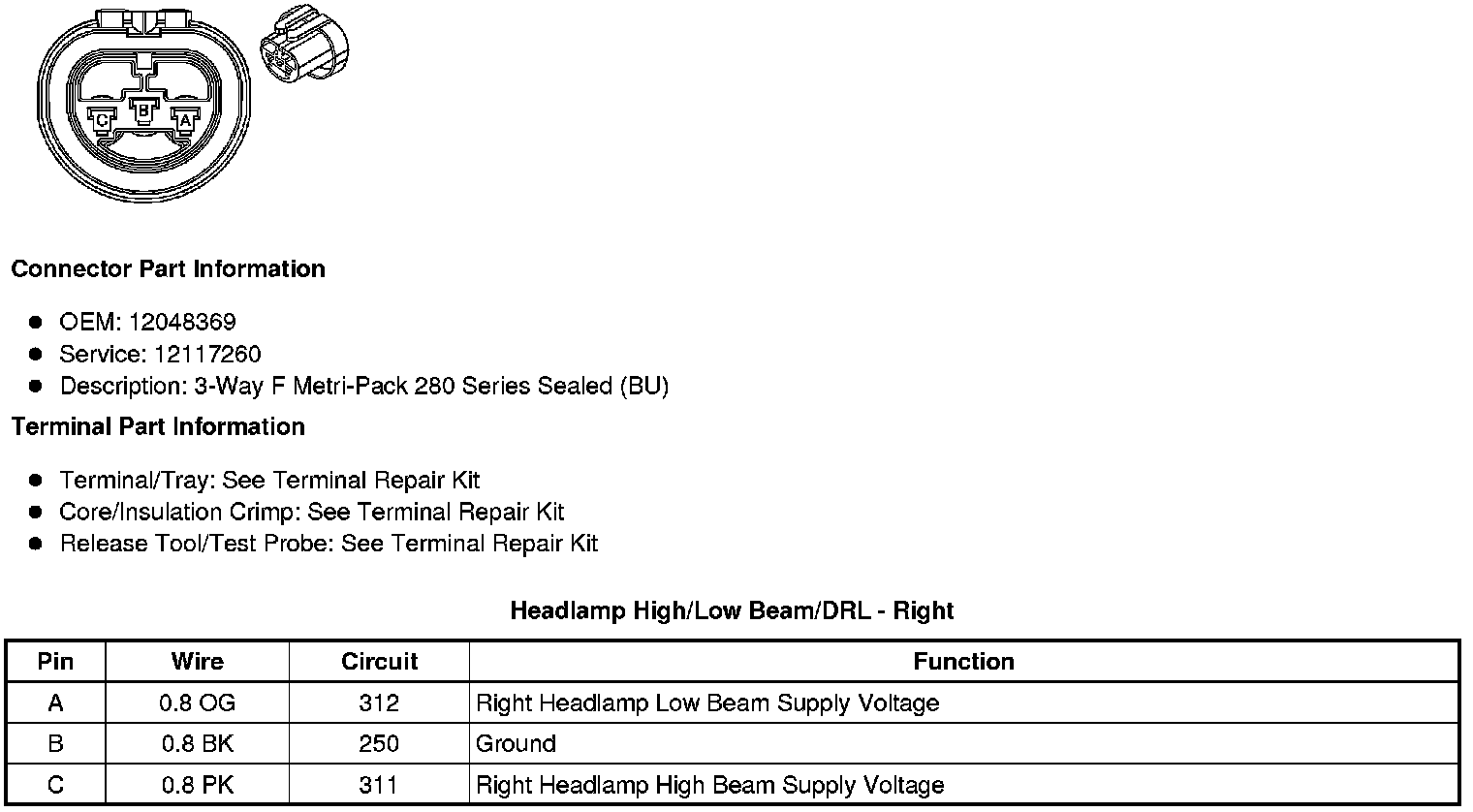

Headlamp High/Low Beam/DRL - Right
