Harness Routing Views




Harness Routing Views

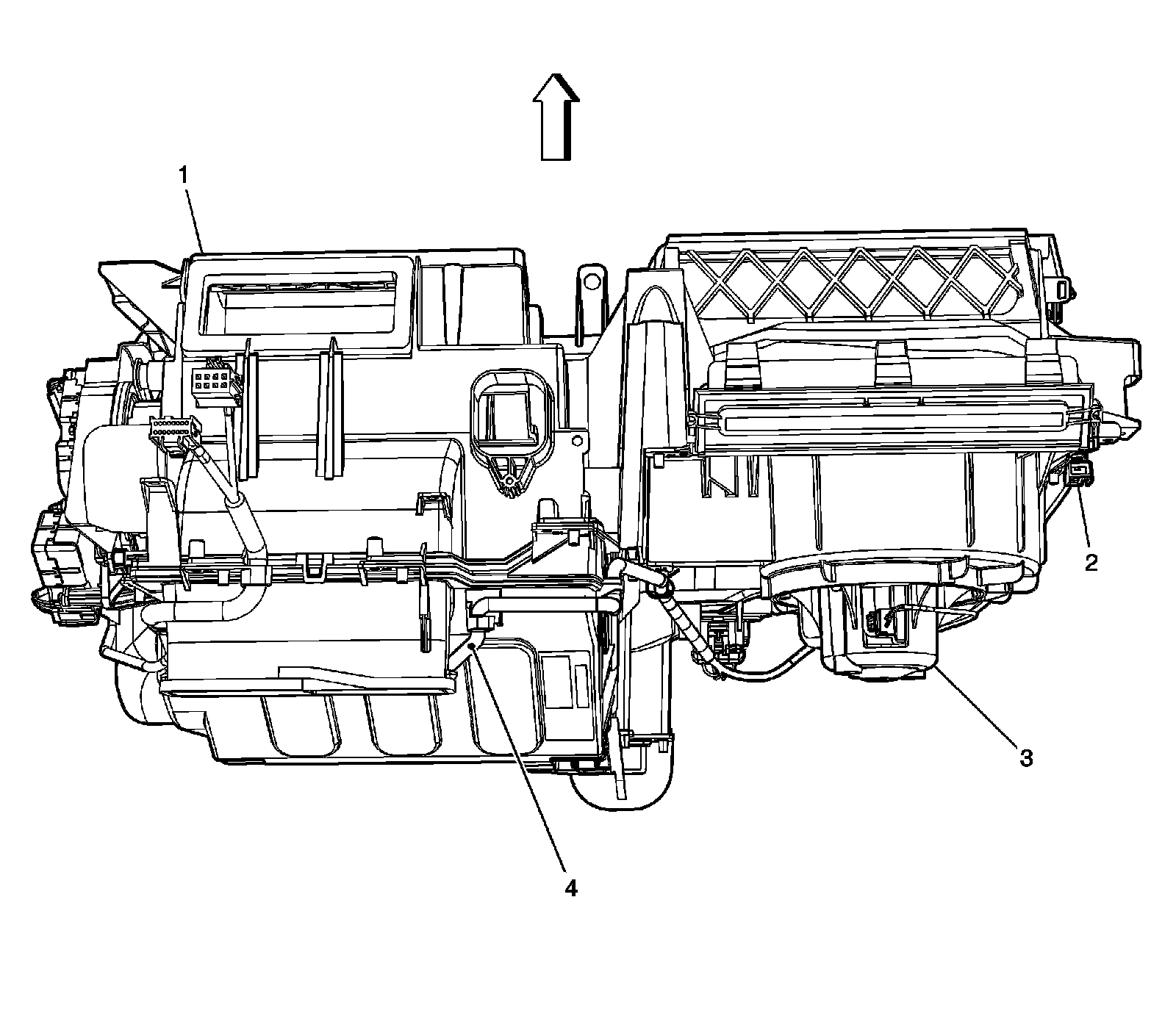

HVAC Assembly Harness




1 - HVAC Box
2 - X210
3 - Blower Motor
4 - J261
