Windshield Defroster Duct Replacement

Windshield Defroster Duct Replacement

Removal Procedure

1. Remove the instrument panel (I/P) retainer. Refer to Instrument Panel Retainer Replacement (Service and Repair).

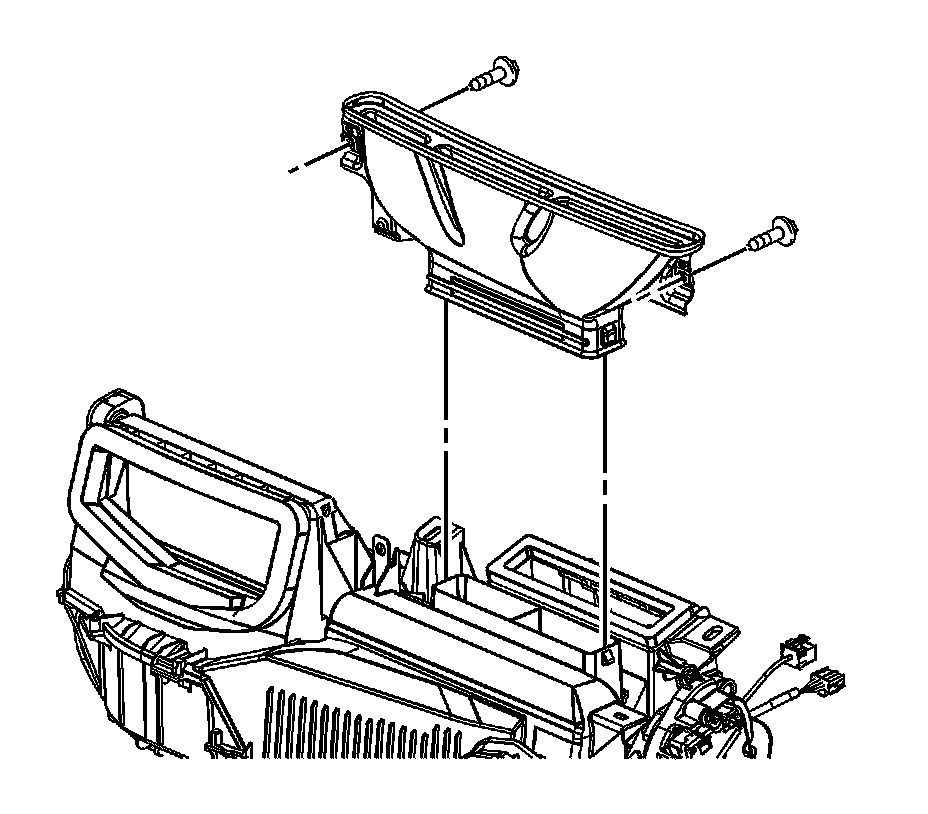

2. Remove the windshield defroster duct retaining screws.
3. Remove the windshield defroster duct.

Installation Procedure




1. Install the windshield defroster duct.
2. Install the windshield defroster duct screws.
Caution: Refer to Fastener Caution (Fastener Caution).

Tighten the screws to 1.5 Nm (13 lb in).

3. Install the I/P retainer. Refer to Instrument Panel Retainer Replacement (Service and Repair).
