Instrument Panel Outer Air Outlet Upper Duct Replacement - Left Side

Instrument Panel Outer Air Outlet Upper Duct Replacement - Left Side

Removal Procedure

1. Remove the left instrument panel (I/P) trim panel. Refer to Instrument Panel Trim Panel Replacement - Left Side (Service and Repair).

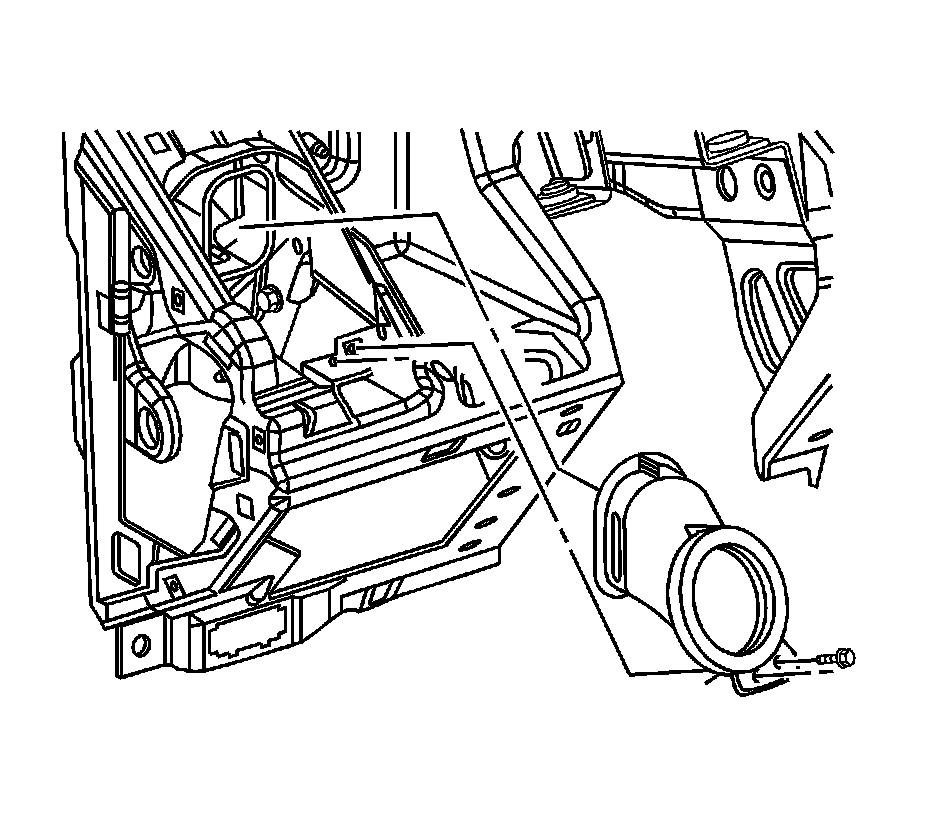

2. Remove the outer air duct screw and duct.

Installation Procedure




1. Install the outer air duct.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the outer air duct screw.

Tighten the air outlet duct screw to 2.5 Nm (22 lb in).

3. Install the left I/P trim panel. Refer to Instrument Panel Trim Panel Replacement - Left Side (Service and Repair).
