Floor Air Outlet Duct Replacement - Center

Floor Air Outlet Duct Replacement - Center

Removal Procedure




1. Remove the floor console side extensions. Refer to Front Floor Console Extension Replacement - Side (Service and Repair).
2. Remove the left floor outlet duct. Refer to Floor Air Outlet Duct Replacement - Left Side (Floor Air Outlet Duct Replacement - Left Side).
3. Remove the right floor outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side (Floor Air Outlet Duct Replacement - Right Side).

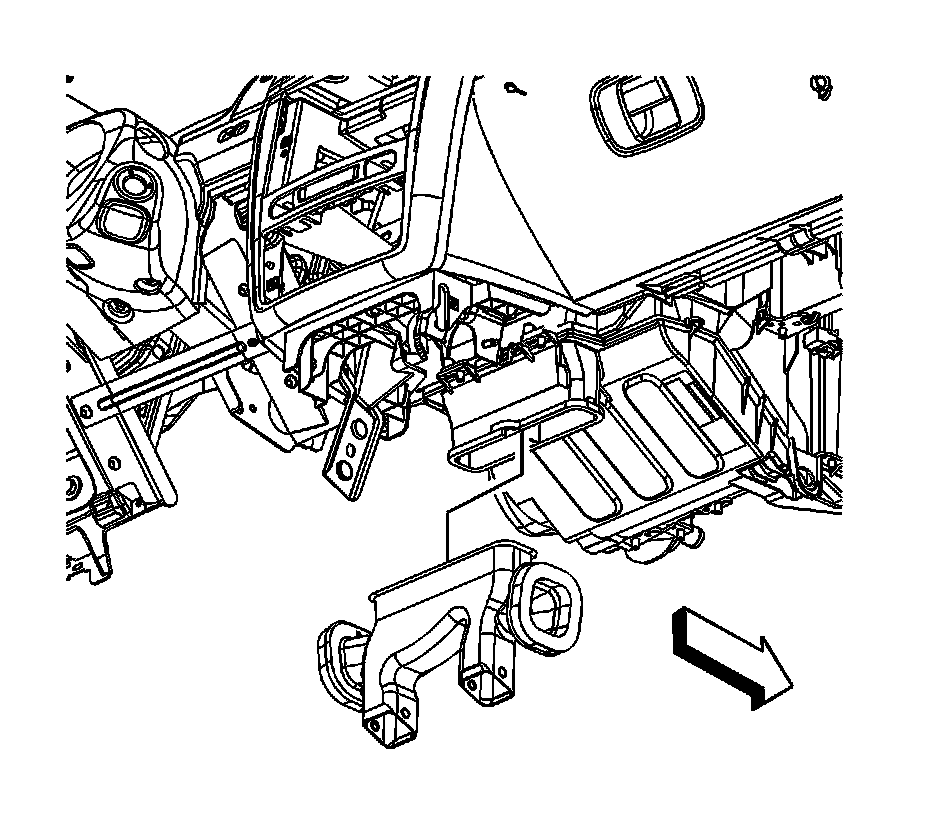

4. Remove the center floor air outlet duct.

Installation Procedure




1. Install the center floor air outlet duct.
2. Install the right floor outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side (Floor Air Outlet Duct Replacement - Right Side).
3. Install the left floor outlet duct. Refer to Floor Air Outlet Duct Replacement - Left Side (Floor Air Outlet Duct Replacement - Left Side).
4. Install the floor console side extensions. Refer to Front Floor Console Extension Replacement - Side (Service and Repair).
