68. Engine Oil Cooler Installation

Engine Oil Cooler Installation

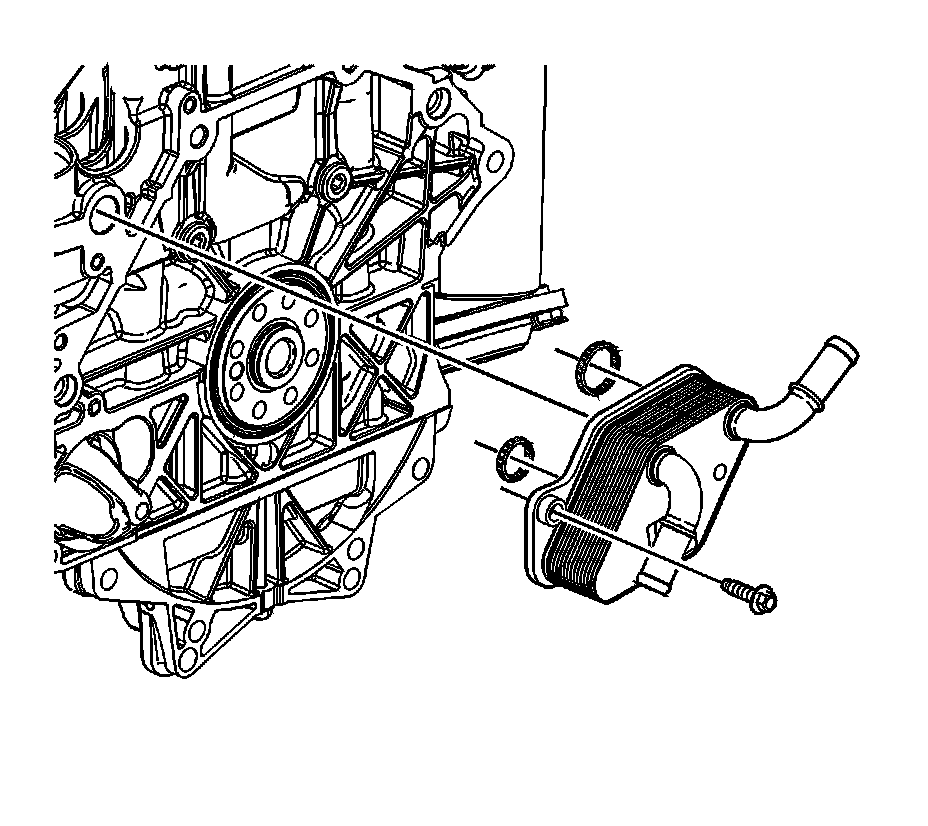

1. Install the oil cooler.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the oil cooler bolts.

Tighten the oil cooler bolts to 22 Nm (16 lb ft).
