57. Cylinder Head Installation

Cylinder Head Installation

Special Tools

J 45059 Angle Meter





Note: Do not use any sealing material.

1. Install the cylinder head gasket to the block.
2. Install the cylinder head. Ensure the number 1 cylinder is at top dead center (TDC). The key on the crankshaft should be on top in the 12 o'clock position.





Caution: Refer to Fastener Caution (Fastener Caution).

Note: Always use NEW cylinder head bolts.

3. Install the cylinder head bolts.

* Tighten the bolts in sequence to 30 Nm (22 lb ft).
* Tighten the bolts an additional 155 degrees in sequence using the J 45059 .

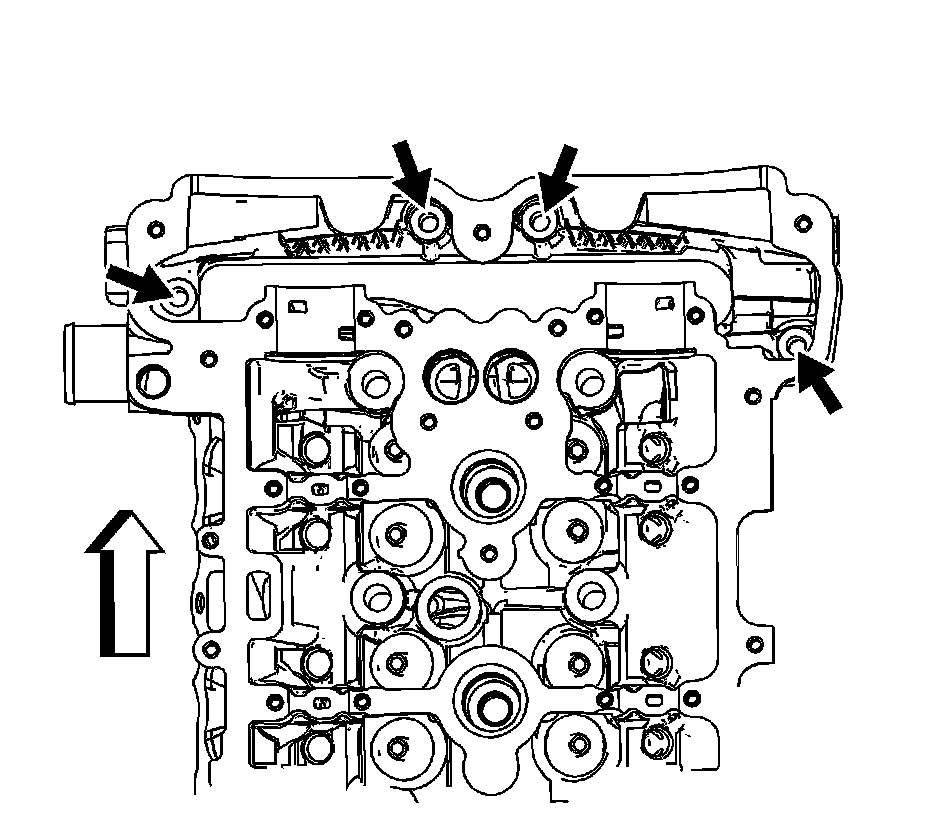

4. Install the front cylinder head bolts.

Tighten the cylinder head bolts to 30 Nm (22 lb ft).
