5. Engine Flywheel Removal

Engine Flywheel Removal

Special Tools

J 43653 - Flywheel Holding Tool

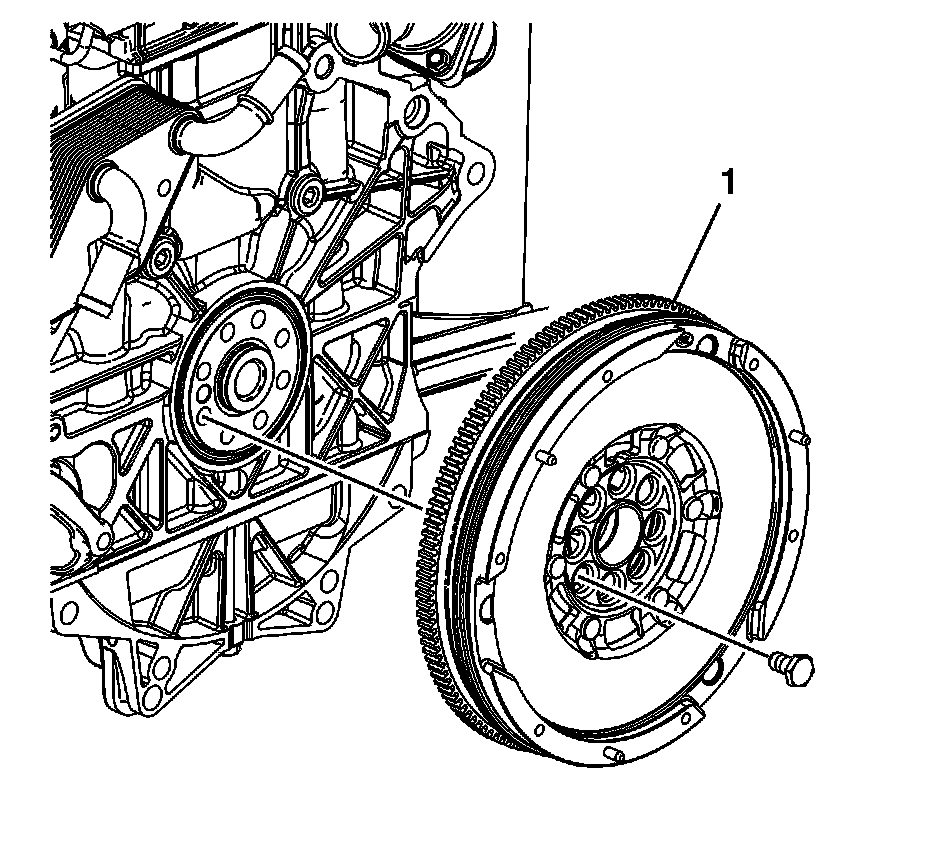

Engine Flywheel with Manual Transmission

1. Ensure that J 43653 - flywheel holding
tool is installed and engaging the flywheel to prevent crankshaft rotation.
2. Remove the flywheel attaching bolts.
3. Remove the flywheel (1), if the vehicle has a manual transmission.
4. Remove the pilot bearing. Refer to Clutch Pilot Bearing Replacement (Service and Repair) for manual transmission.
5. Remove J 43653 - flywheel holding tool.

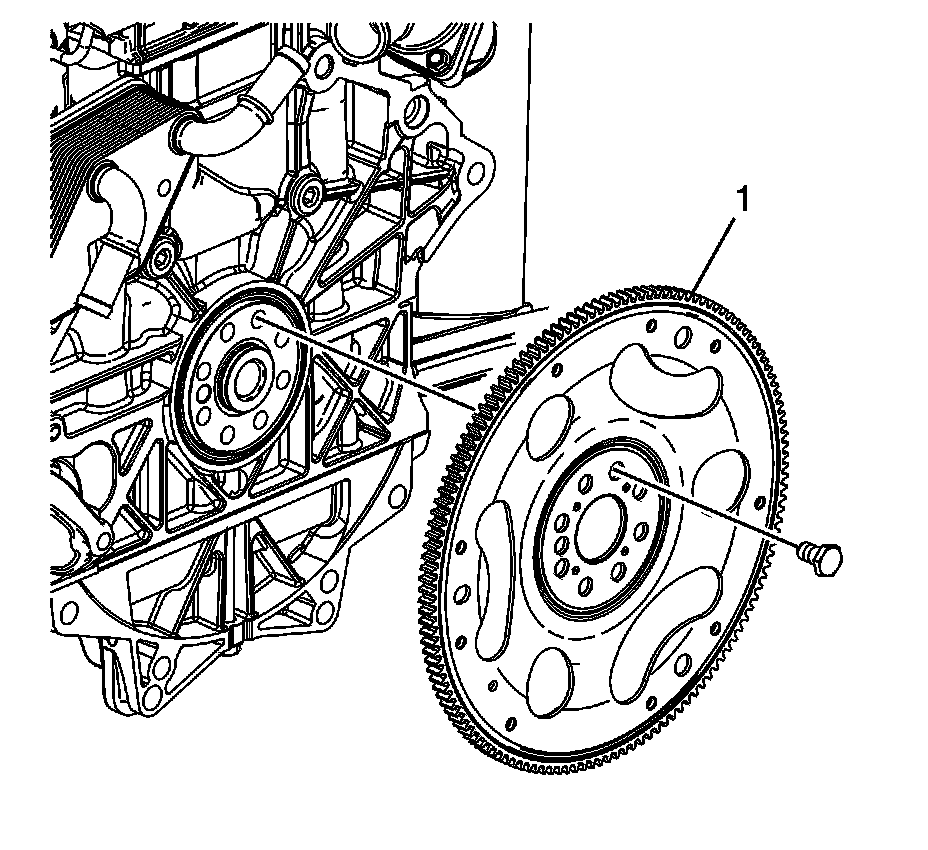

Engine Flywheel with Automatic Transmission
