4. Crankshaft Balancer Removal

Crankshaft Balancer Removal

Special Tools

J 43653 Flywheel Holding Tool

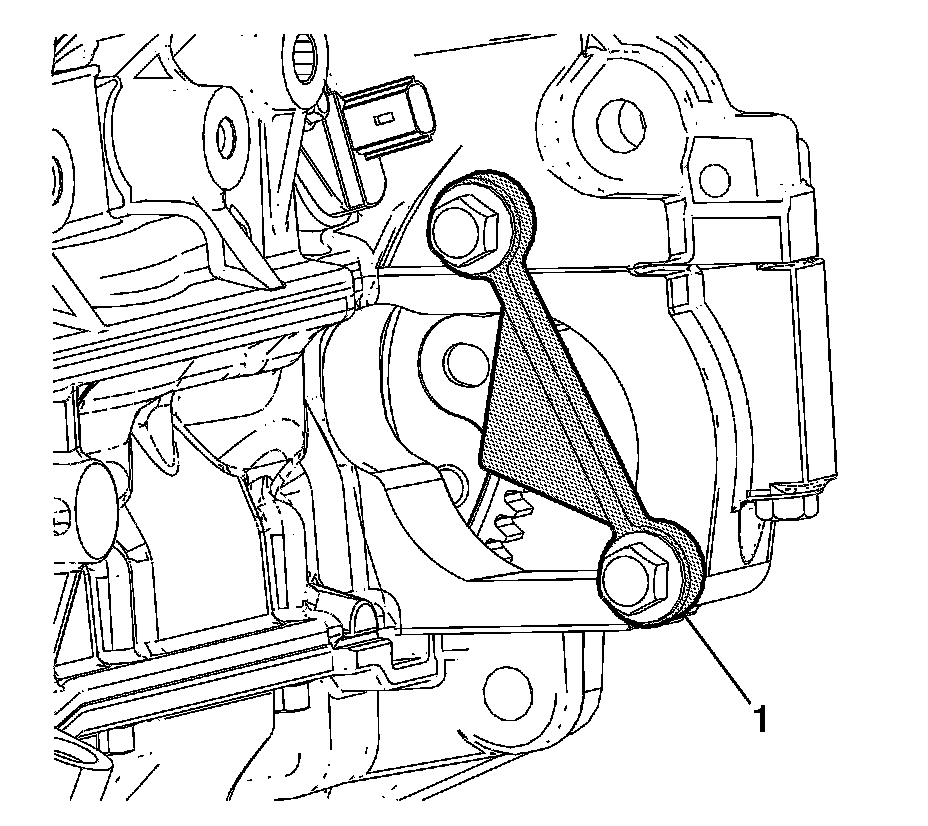

1. Install J 43653 in the starter assembly location, engaging the flywheel, in order to prevent crankshaft rotation.

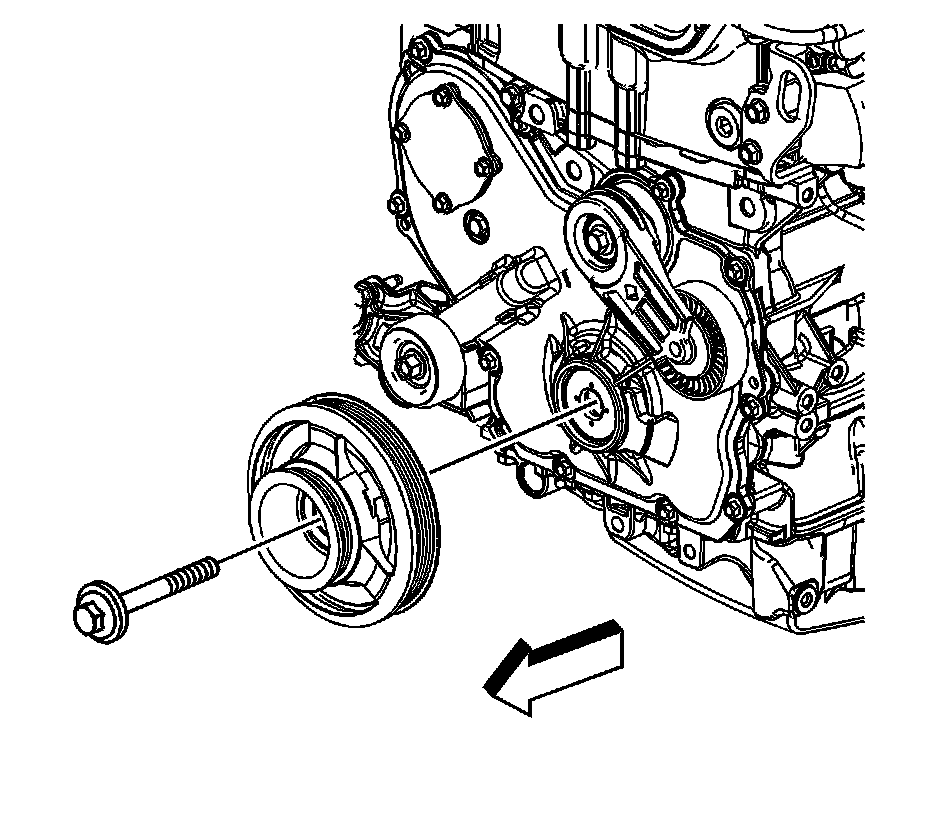

2. Remove the balancer retaining bolt and washer. Discard the bolt.
3. Remove the balancer using a universal removal tool.
