12. Camshaft Cover Removal

Camshaft Cover Removal




1. Remove the bolt and coil.





Important: The PCV hose should not be disconnected from the camshaft cover as damage to the hose connection will result.

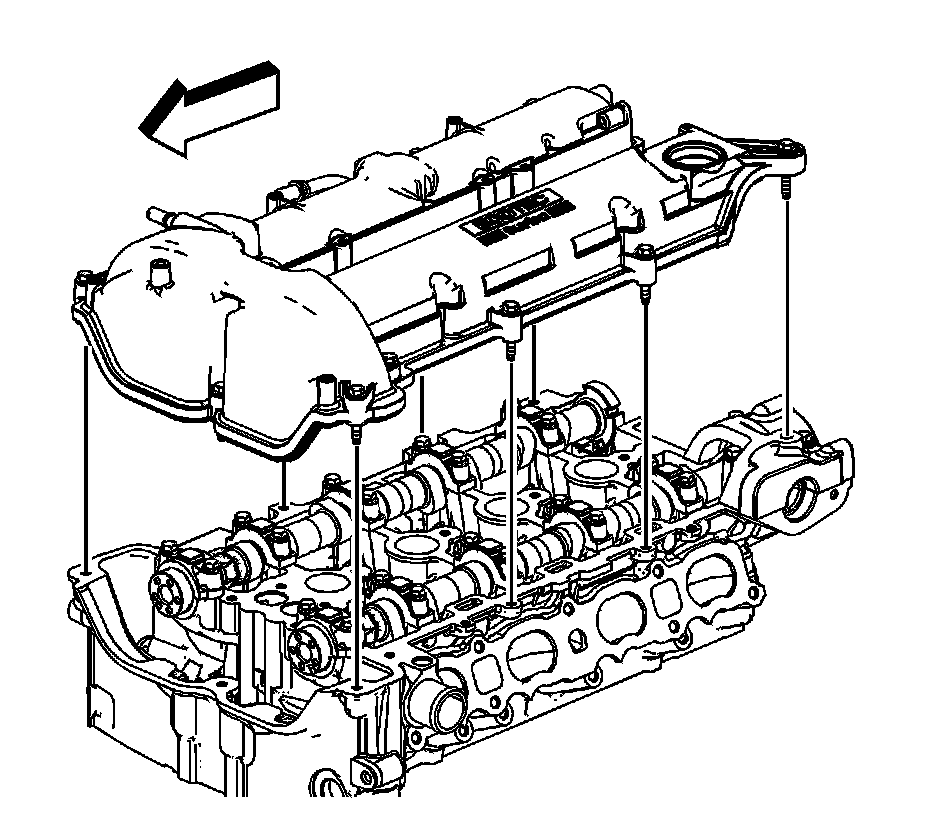

2. Remove the camshaft cover assembly.

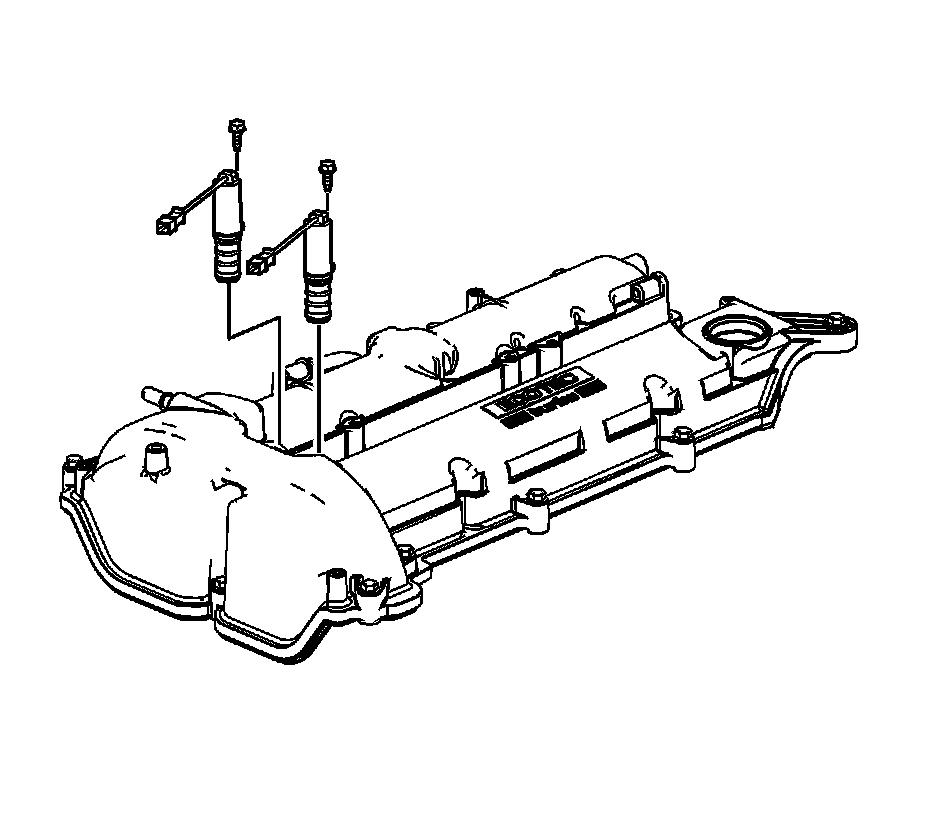

3. Remove the camshaft position actuator solenoid valve bolts.
4. Remove the camshaft position actuator solenoid valves.
