Coolant Heater Replacement

Coolant Heater Replacement

Removal Procedure

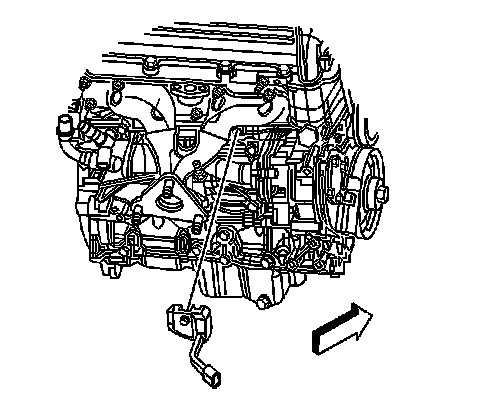

1. Disconnect the coolant heater cord (1).




2. Remove the coolant heater bolt.
3. Remove the coolant heater.

Installation Procedure




1. Install the coolant heater.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the coolant heater bolt and tighten to 10 Nm (89 lb in).




3. Connect the coolant heater cord (1).
