Home >> Chevrolet >> 2009 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Radiator Cooling Fan >> Diagrams

Radiator Cooling Fan: Diagrams




Component Connector End Views

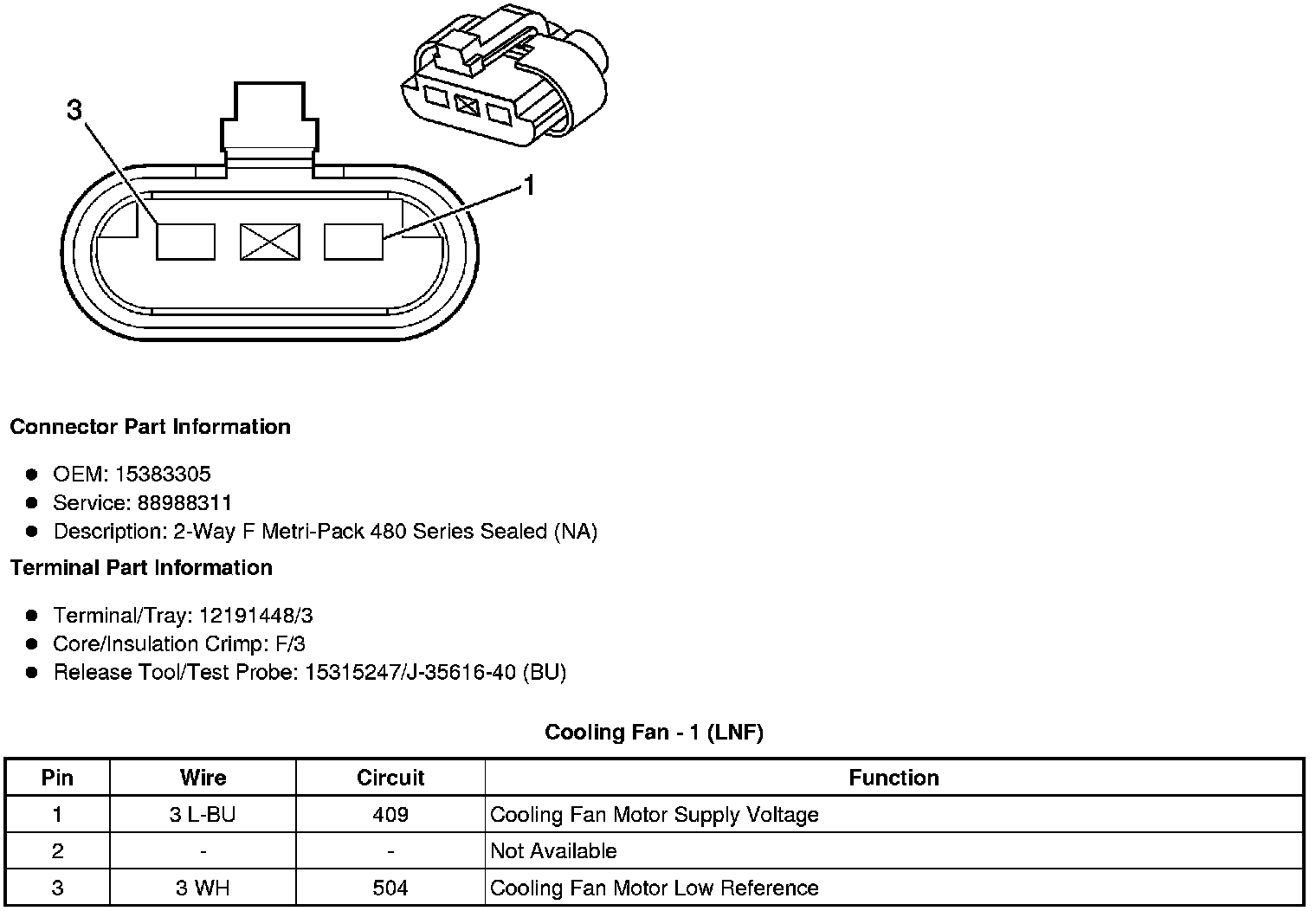

Cooling Fan - 1 (LNF)

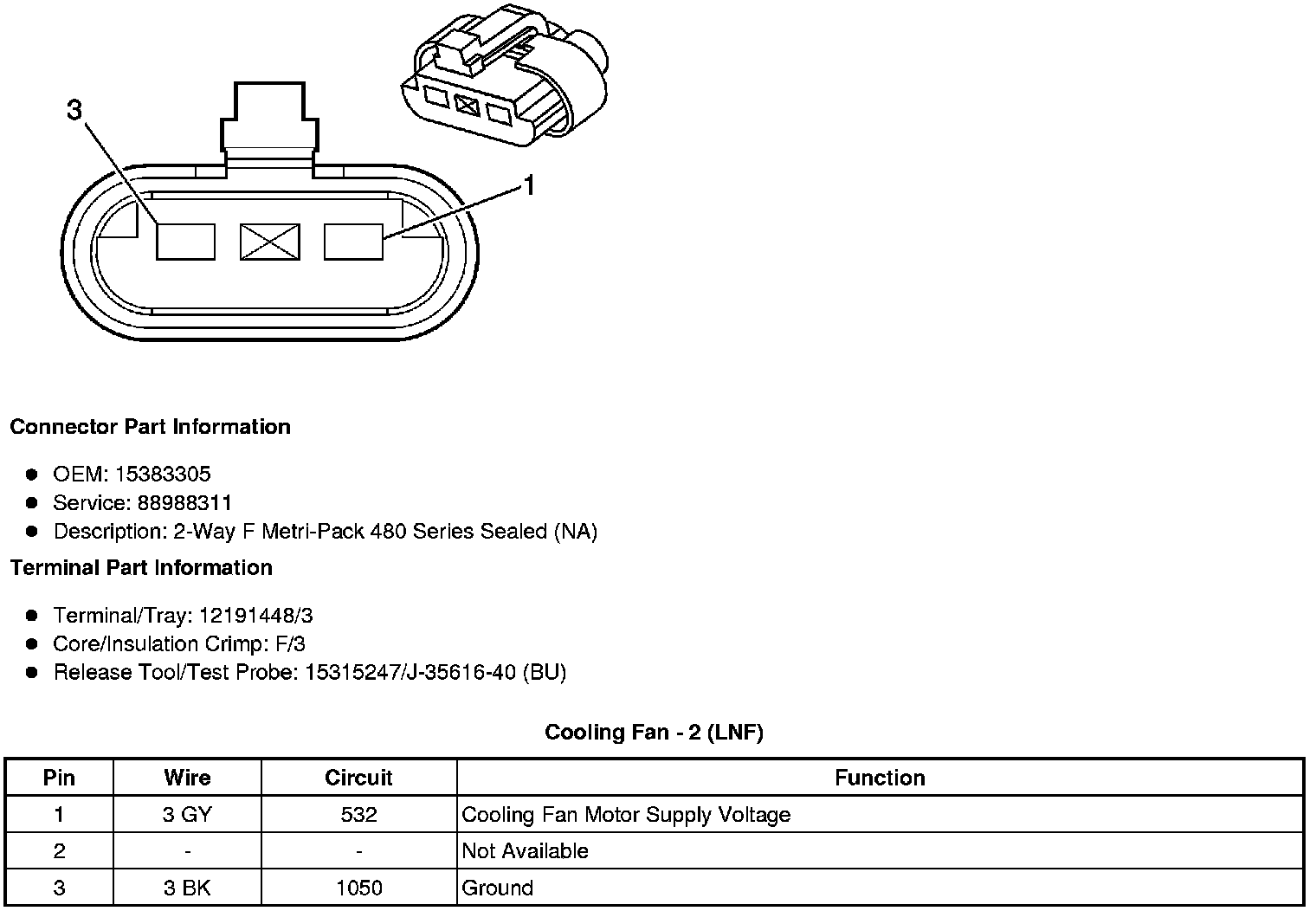

Cooling Fan - 2 (LNF)
