FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2009
>>
Cobalt L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
Master Grounds List
Master Grounds List
Master Electrical Component List

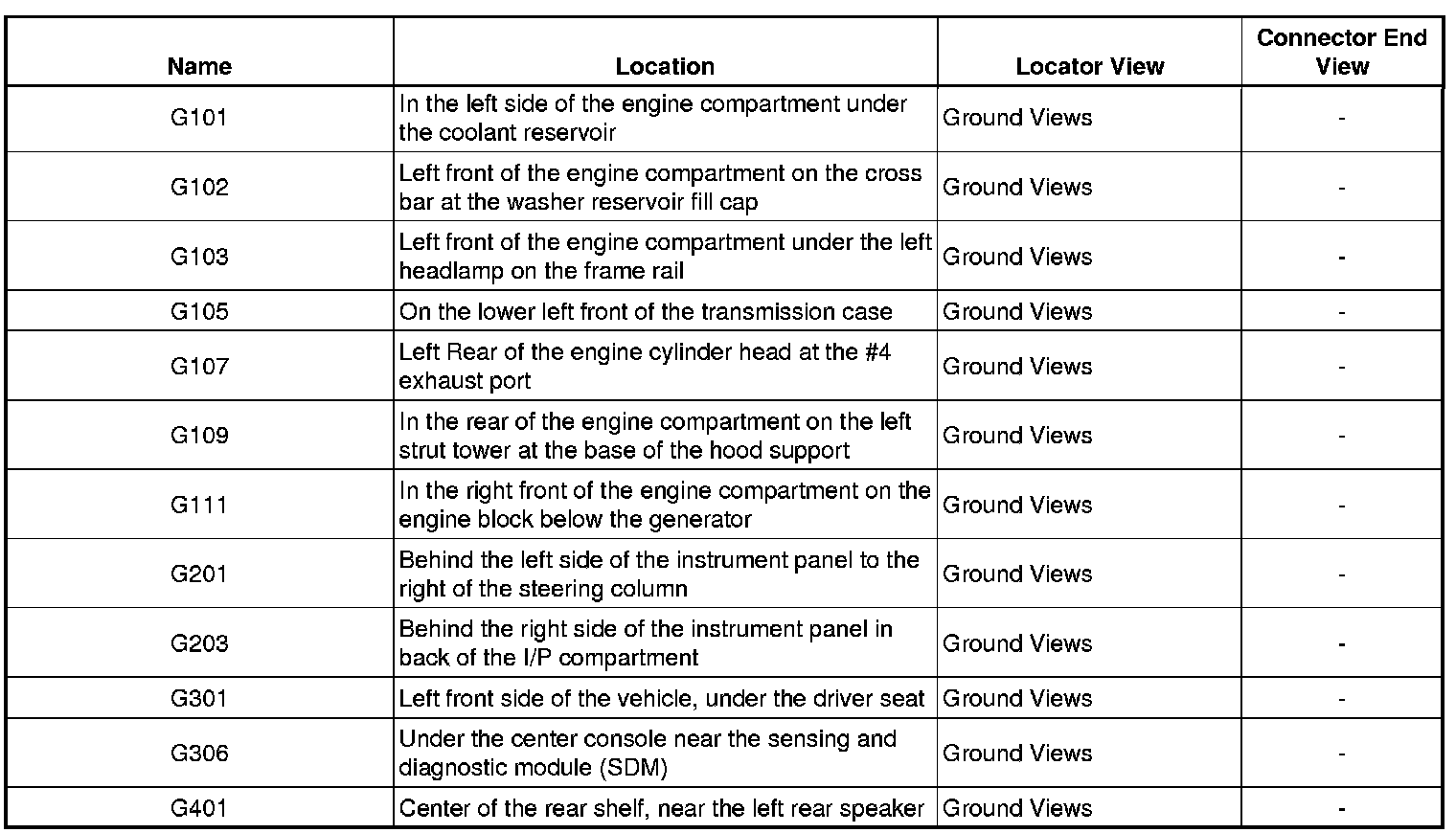

G101 - G401:

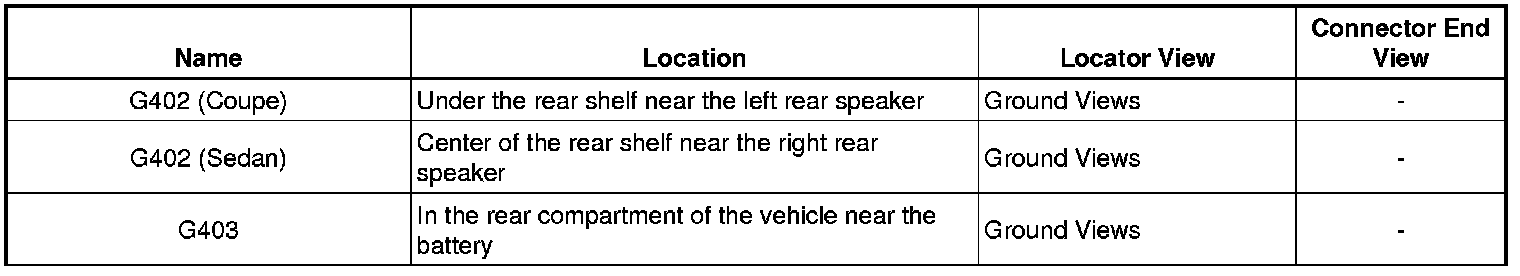

G402 - G403:
