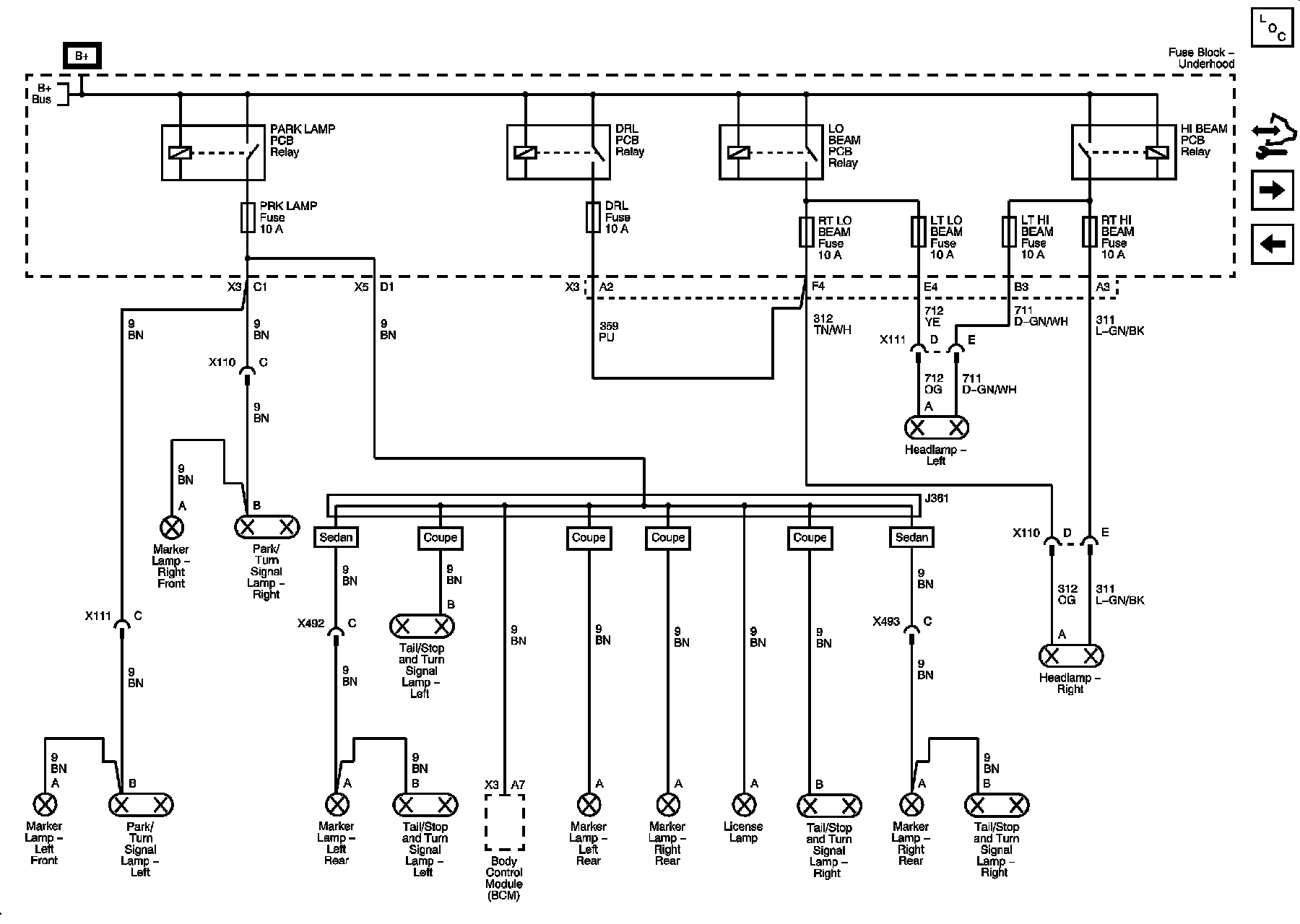

Power Distribution Diagram 7




Power Distribution Schematics

Underhood Fuse Block Fuses - LH HI BEAM, LH LO BEAM, PRK LPS, RH HI BEAM, RH LO BEAM
