Home >> Chevrolet >> 2009 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Information Bus

Information Bus




Data Communication Schematics

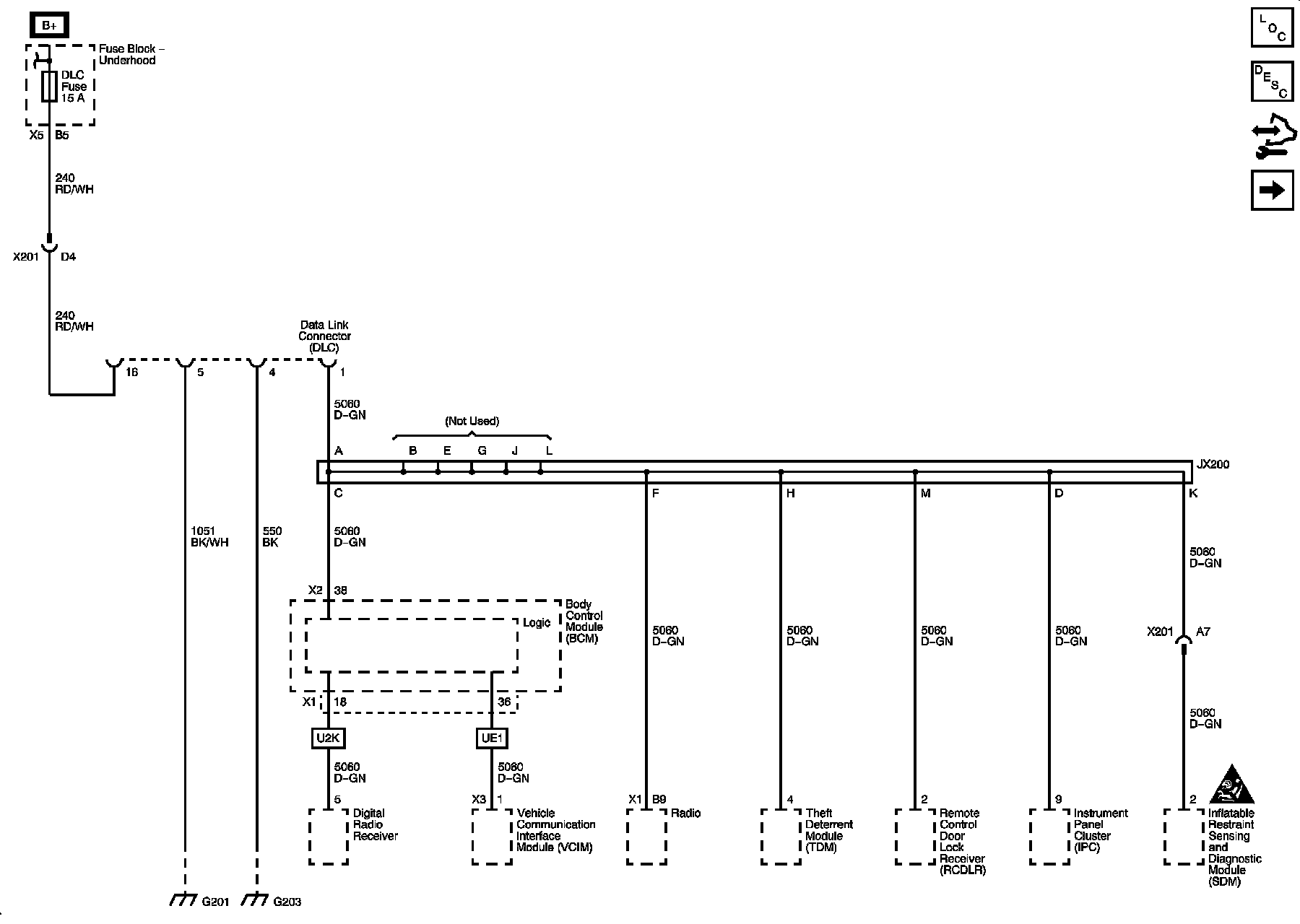

Power, Ground, Low Speed GMLAN

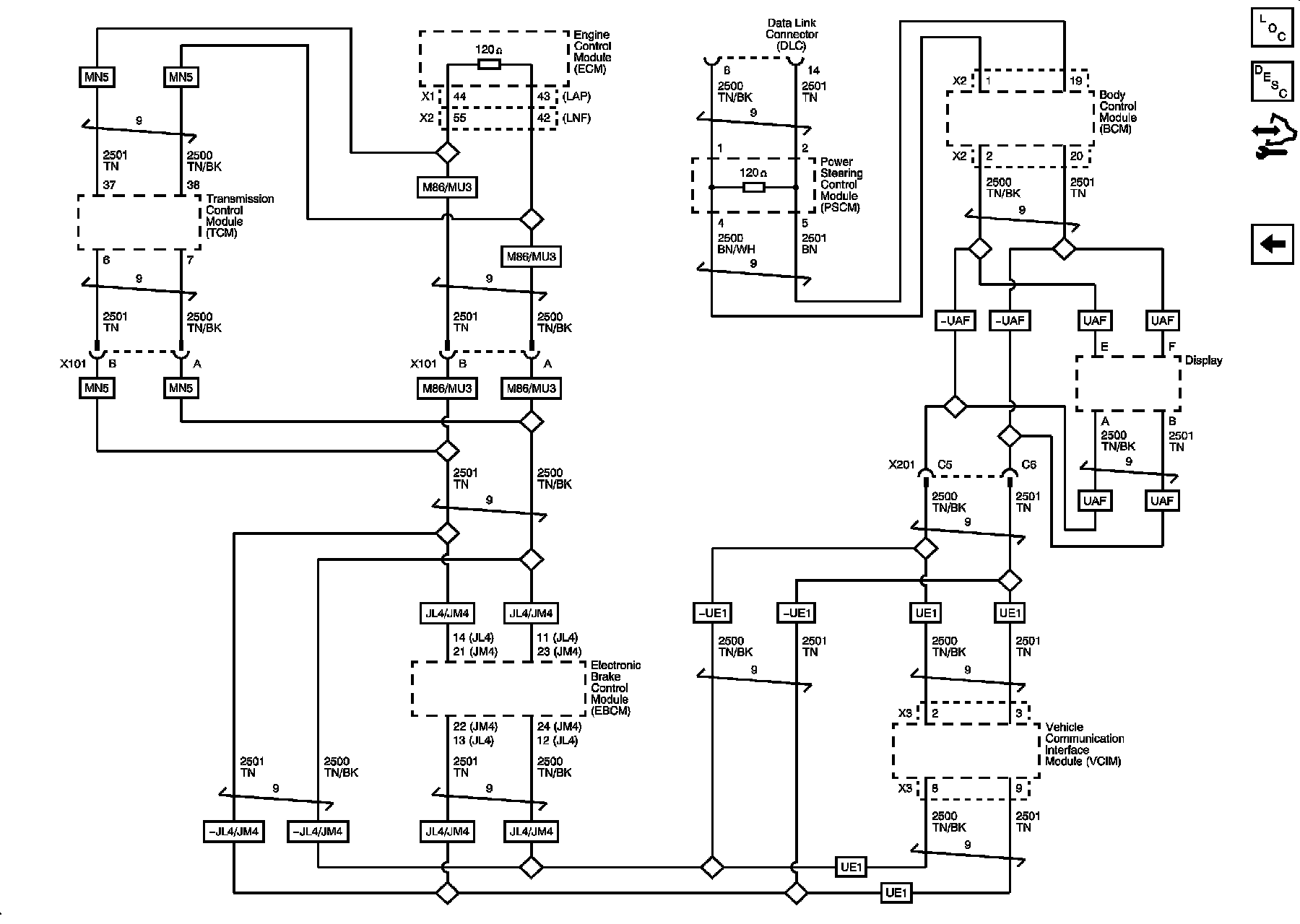

High Speed GMLAN
