Home >> Chevrolet >> 2009 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lights Schematics >> Interior Lights Schematic 2

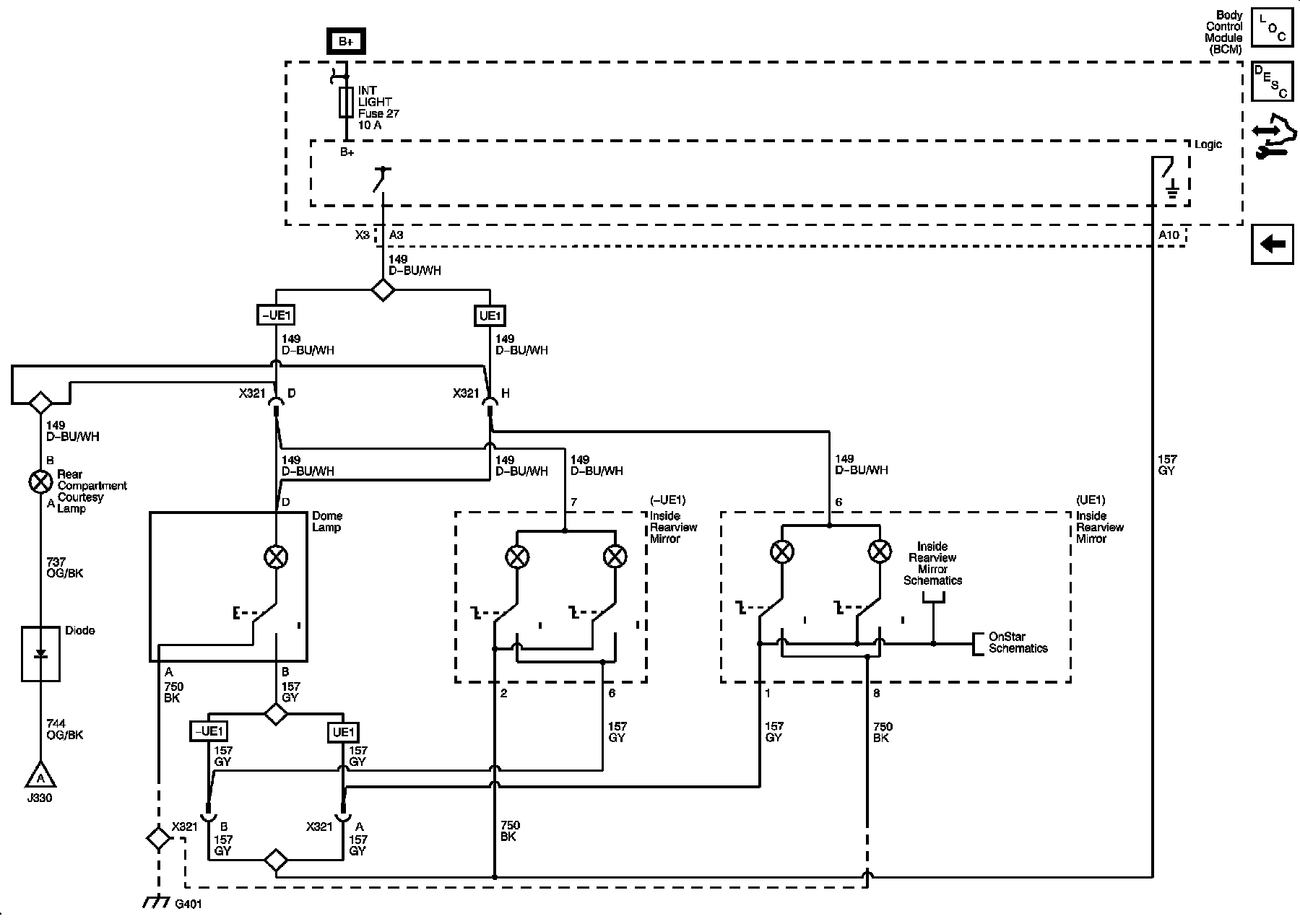

Interior Lights Schematic 2




Interior Lights Schematics

Outputs
