Home >> Chevrolet >> 2009 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Air Bag Systems

Air Bag Systems




SIR Schematics

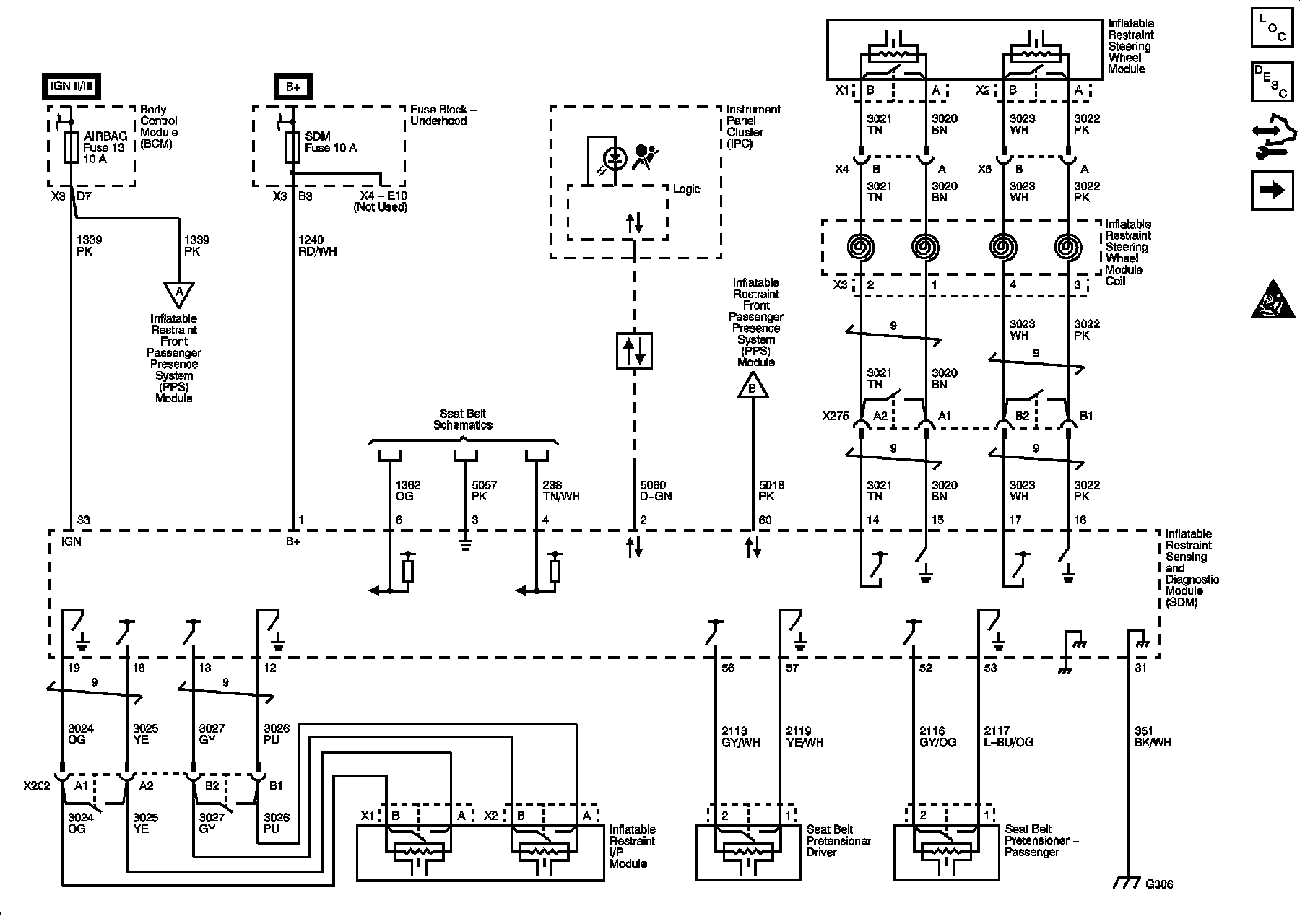

Power, Ground, Indicators, Pretensioners, Front Modules

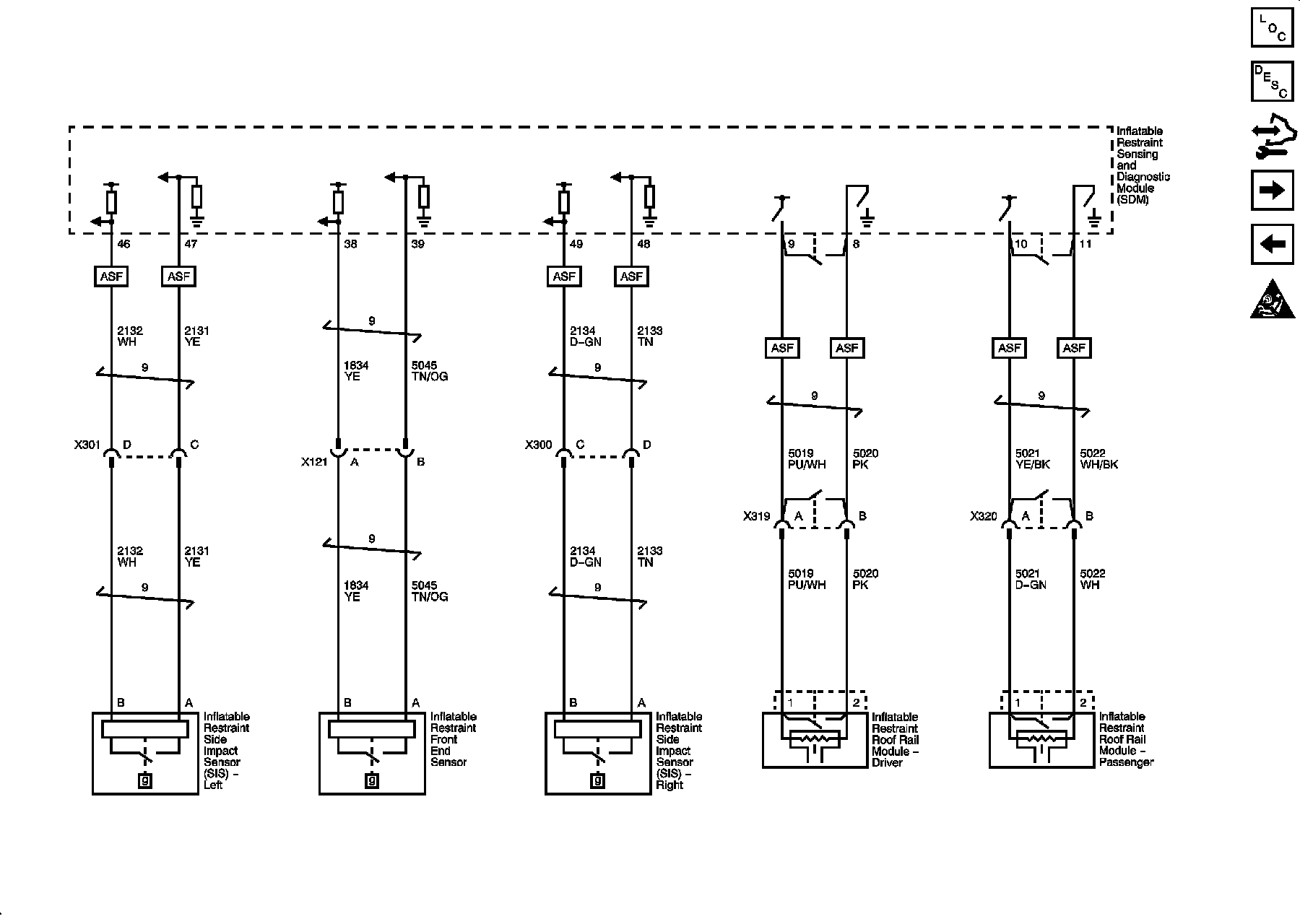

Front and Side Sensors

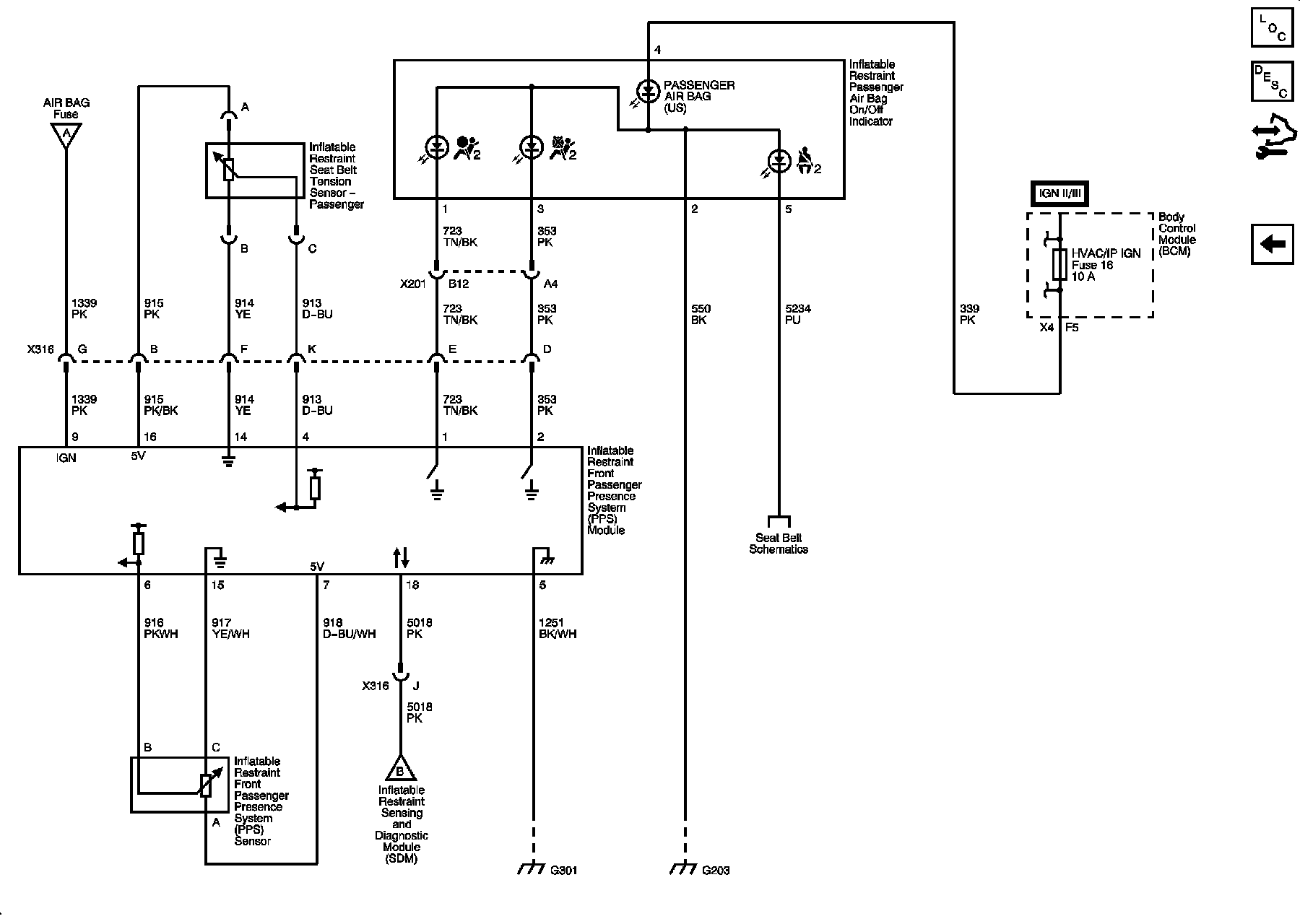

Passenger Presence System
