Master Connector List
Master Connector List
Master Electrical Component List

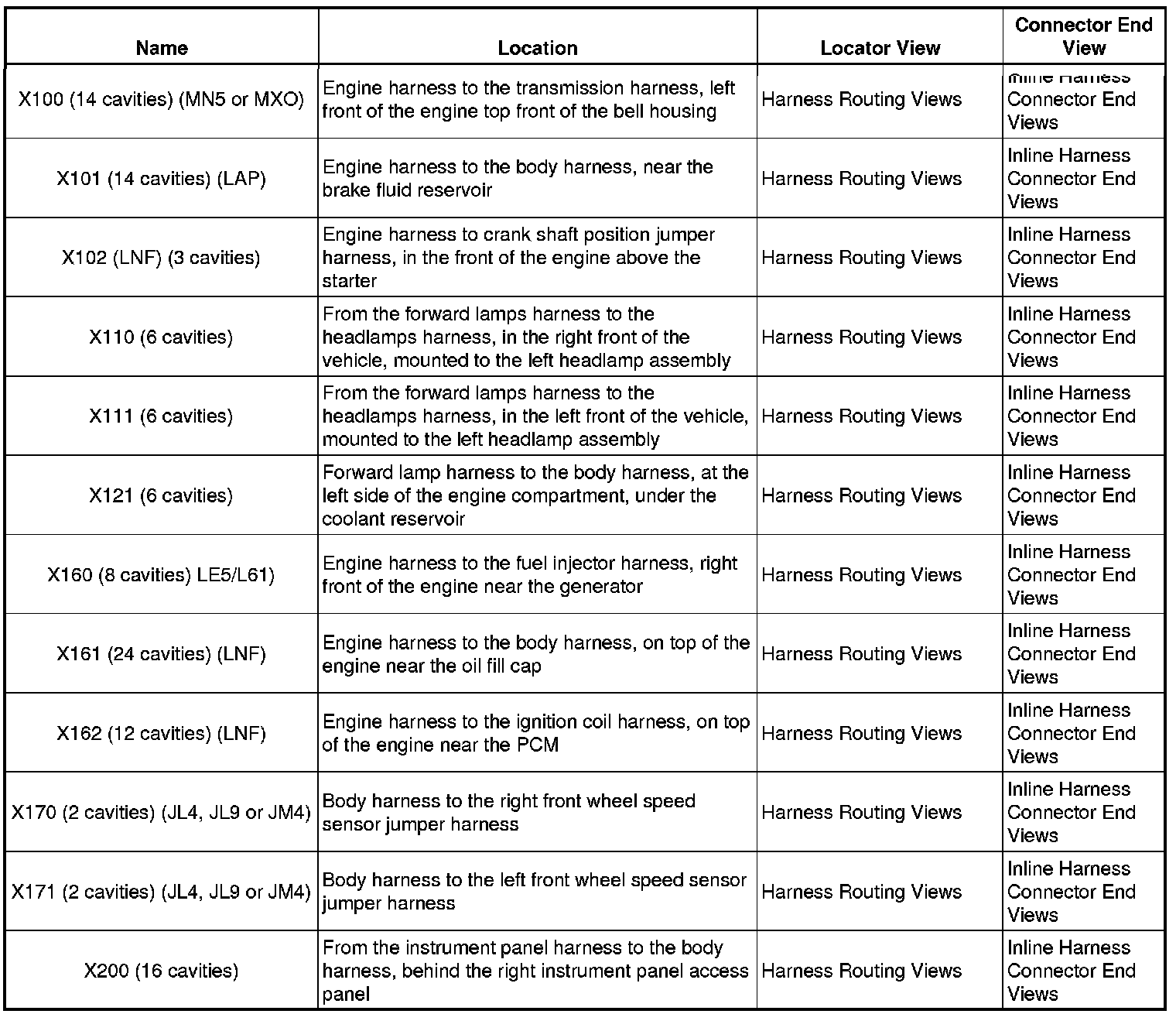

X100 - X200:

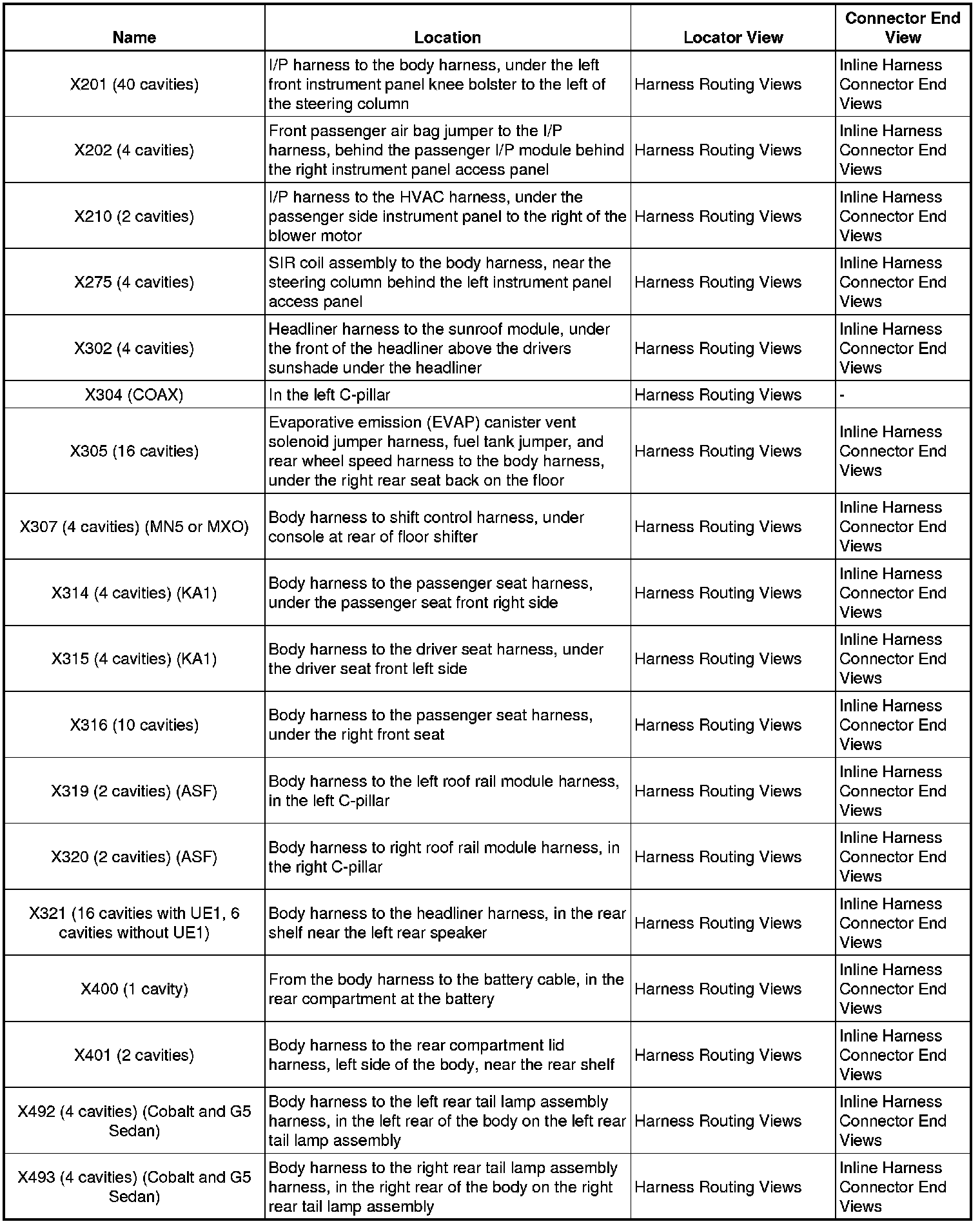

X201 - X493:

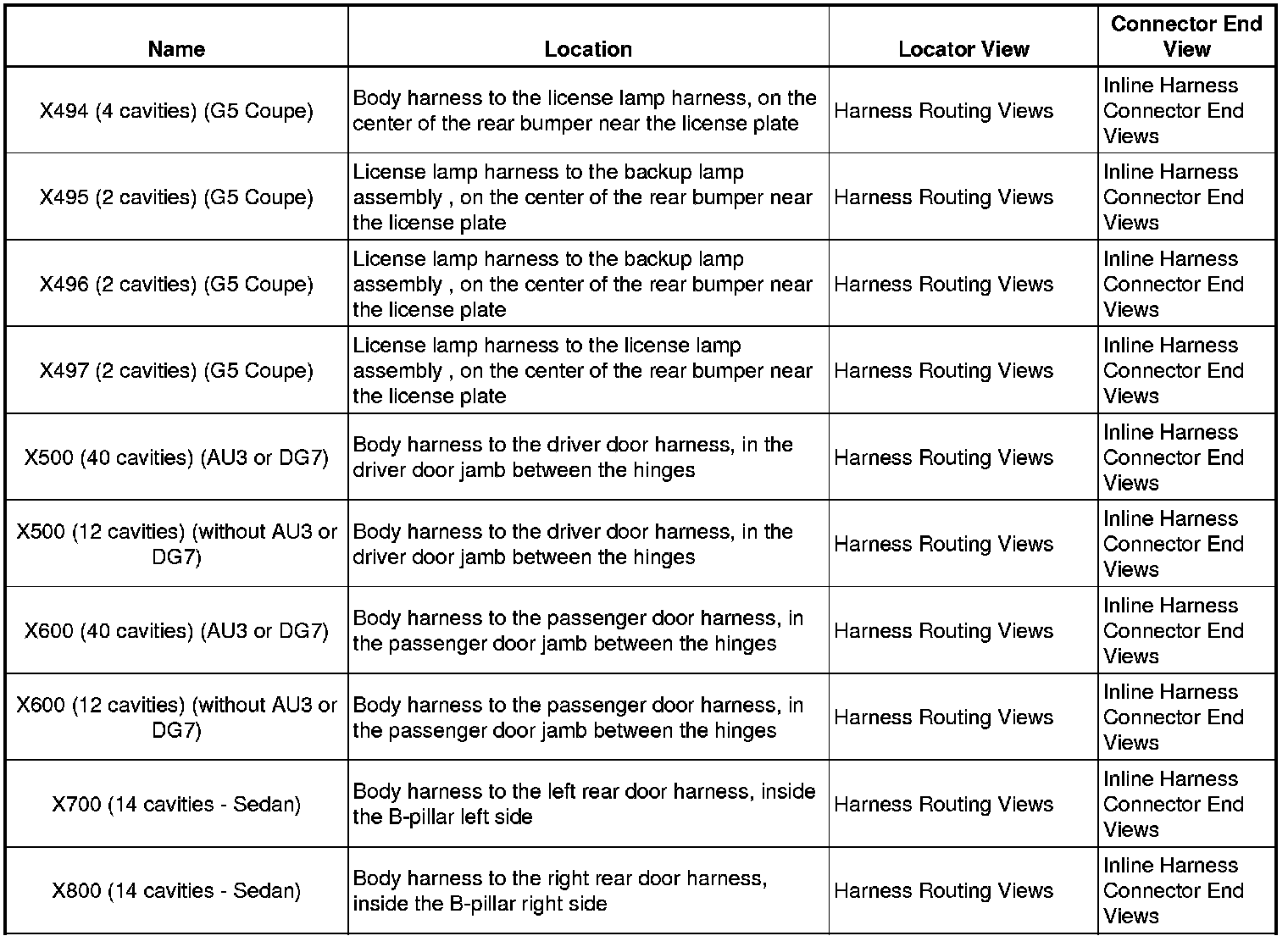

X494 - X800:
