Wheel Speed Sensor




Component Connector End Views

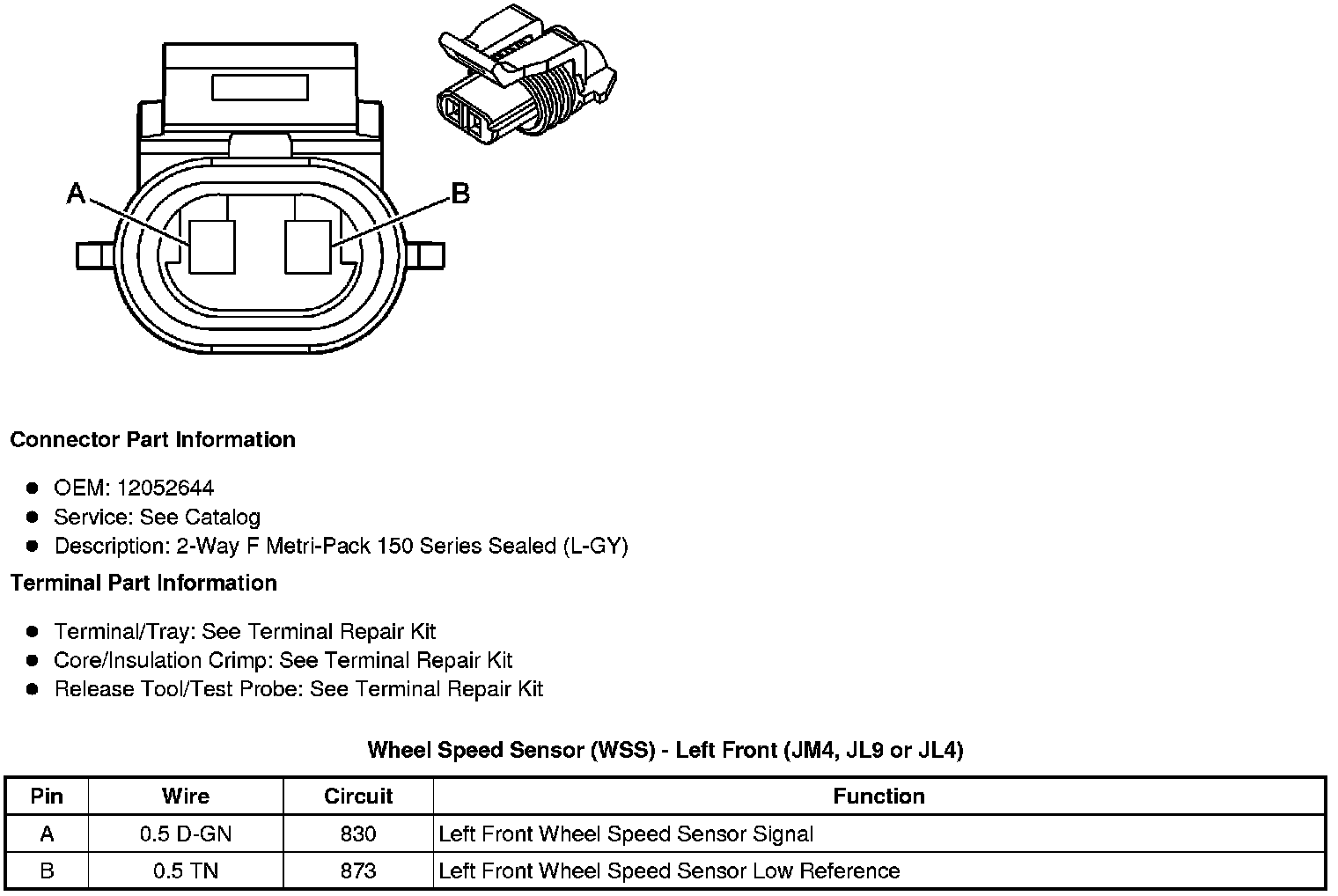

Wheel Speed Sensor (WSS) - Left Front (JM4, JL9 or JL4)





Wheel Speed Sensor (WSS) - Left Rear (LNF with JM4, JL9 or JL4)





Wheel Speed Sensor (WSS) - Right Front (JM4, JL9 or JL4)

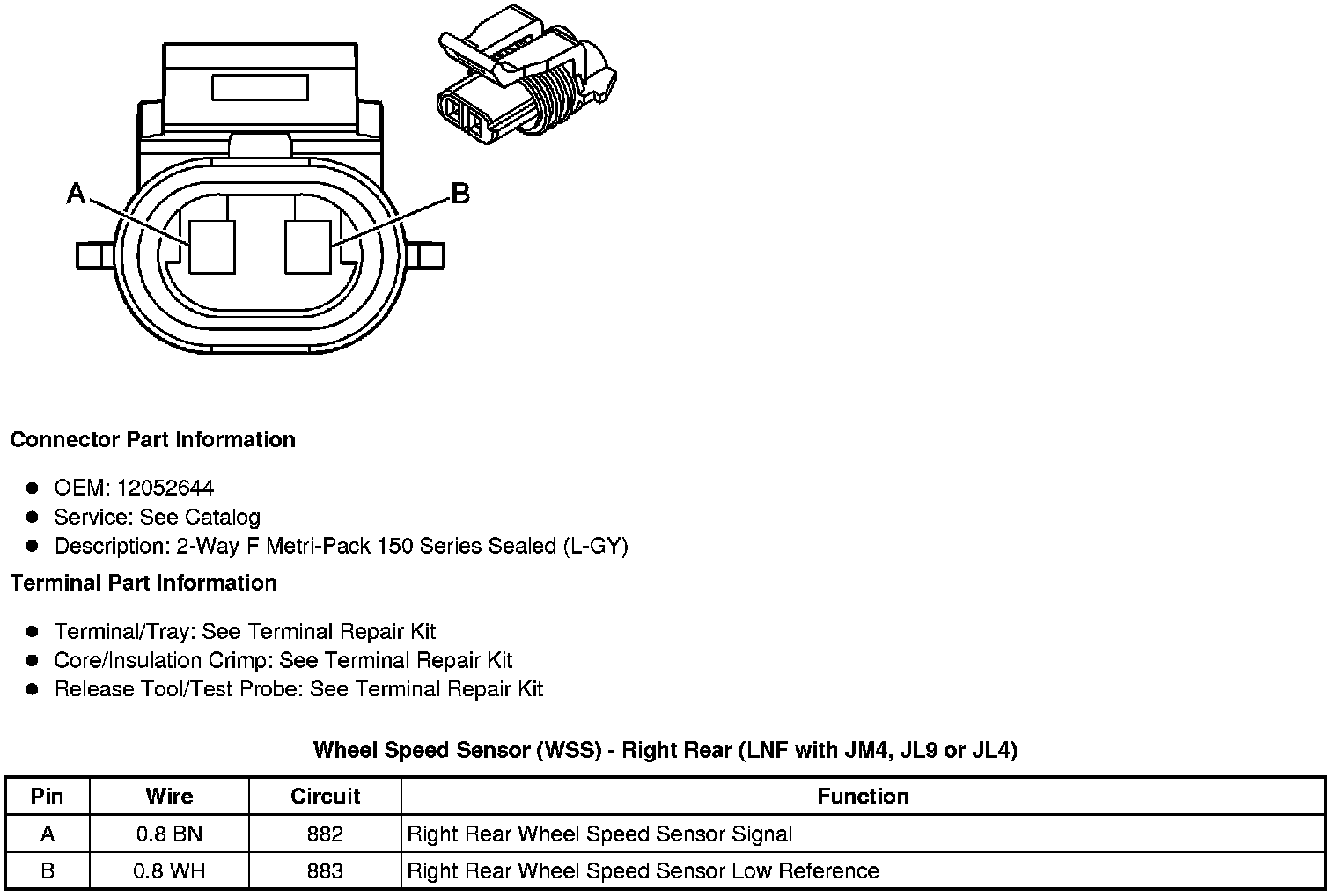

Wheel Speed Sensor (WSS) - Right Rear (LNF with JM4, JL9 or JL4)
