Turbo Boost Sensor
Turbo Boost Sensor

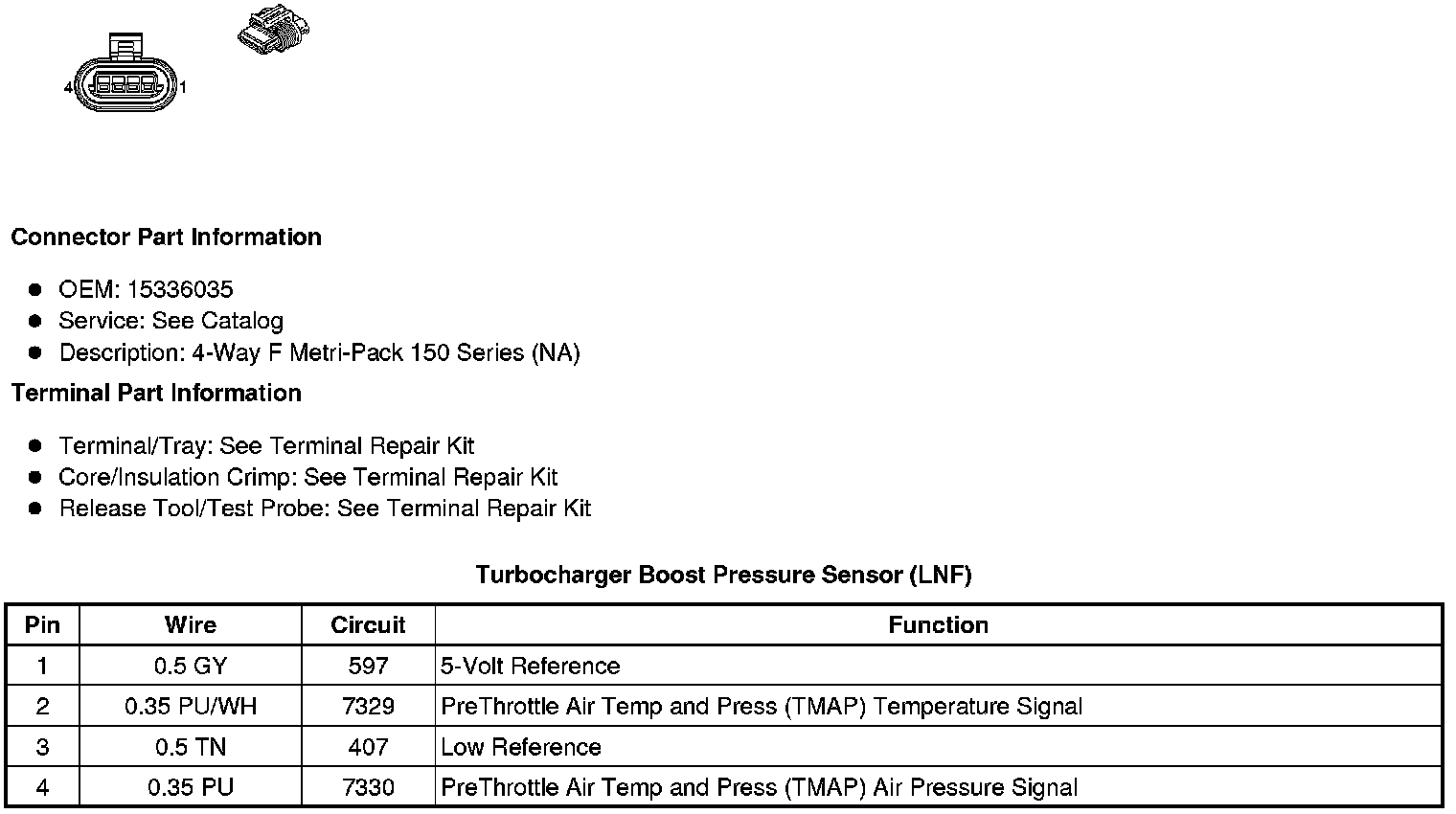

Component Connector End Views
Turbocharger Boost Pressure Sensor (LNF)
