Transmission Position Sensor/Switch, A/T
Transmission Position Sensor/Switch, A/T

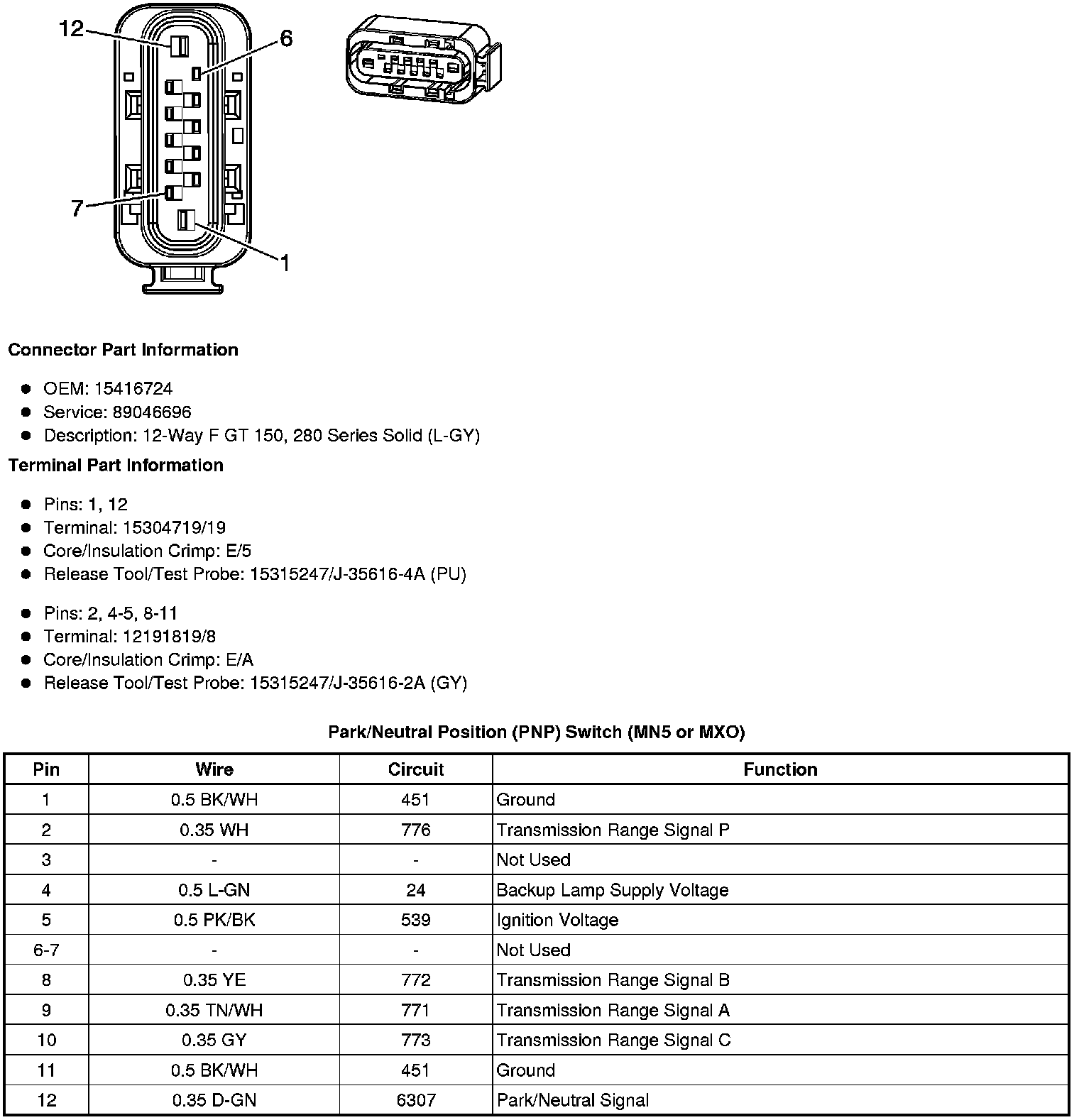

Component Connector End Views
Park/Neutral Position (PNP) Switch (MN5 or MXO)
