Home >> Chevrolet >> 2009 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Rear Door Latch

Rear Door Latch




Component Connector End Views

Door Latch - Left Rear (Sedan) (AU3)






Door Latch - Passenger (AU3)

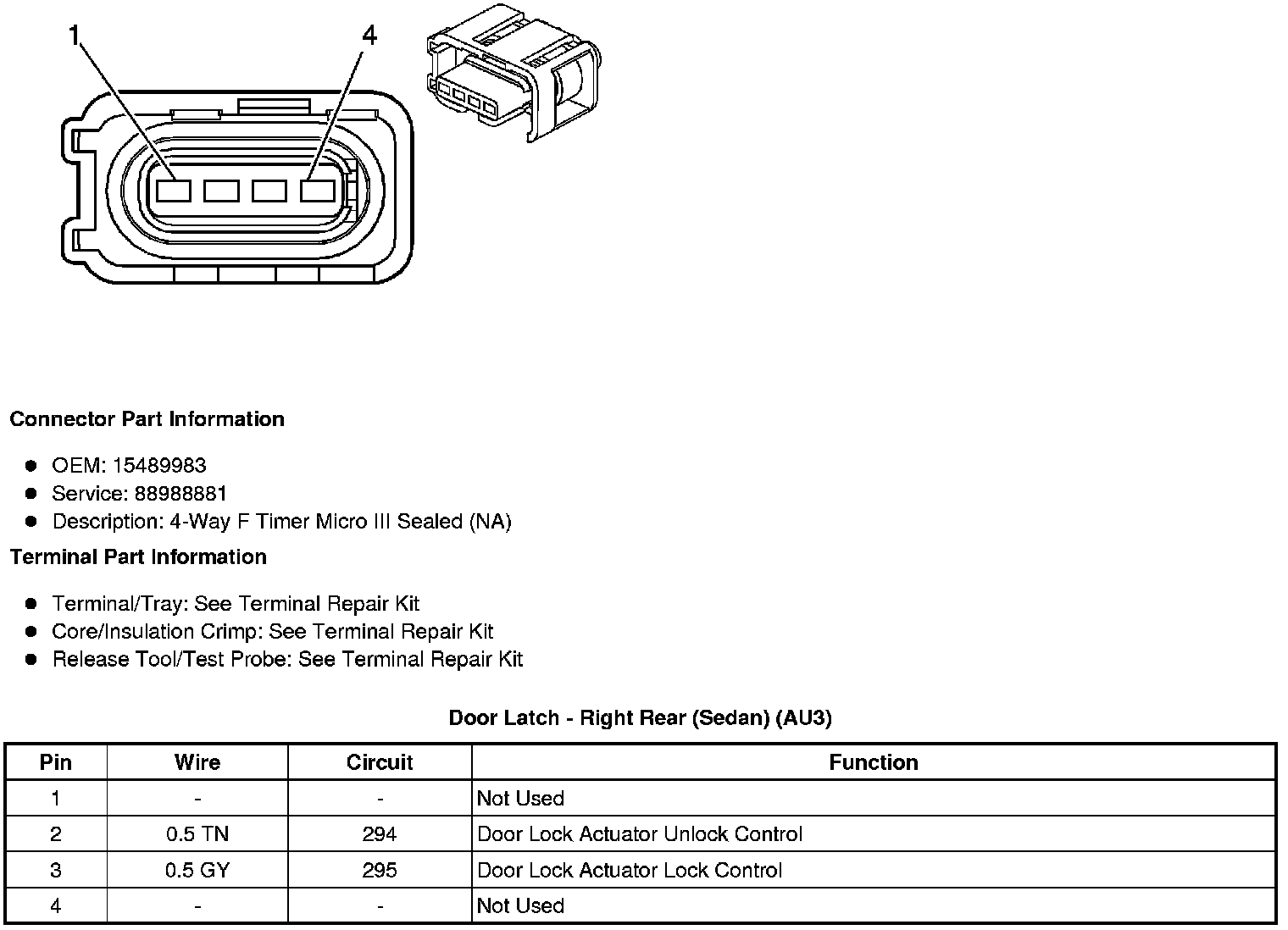

Door Latch - Right Rear (Sedan) (AU3)
