Home >> Chevrolet >> 2009 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram

System Diagram




Component Connector End Views

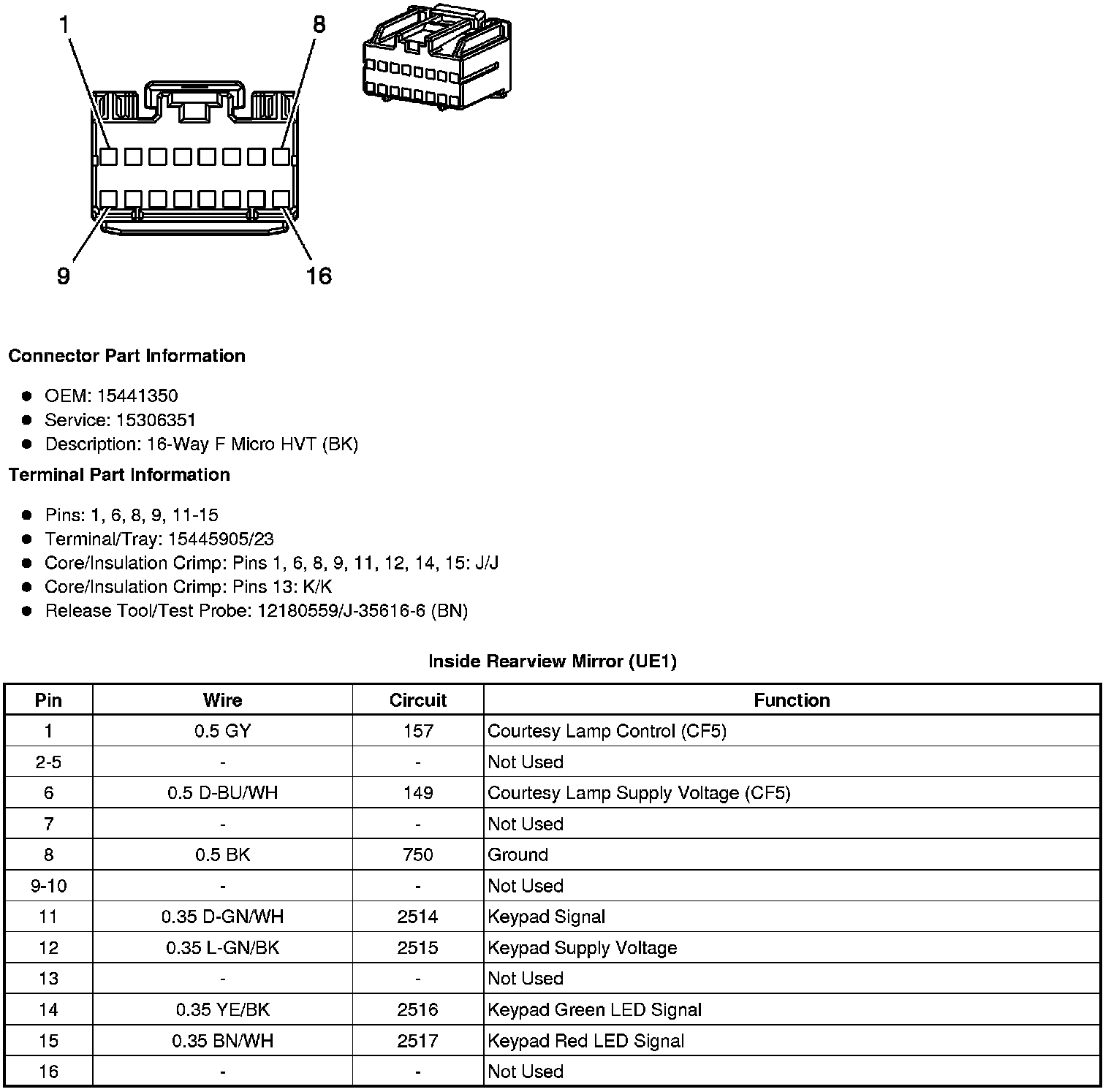

Inside Rearview Mirror (UE1)

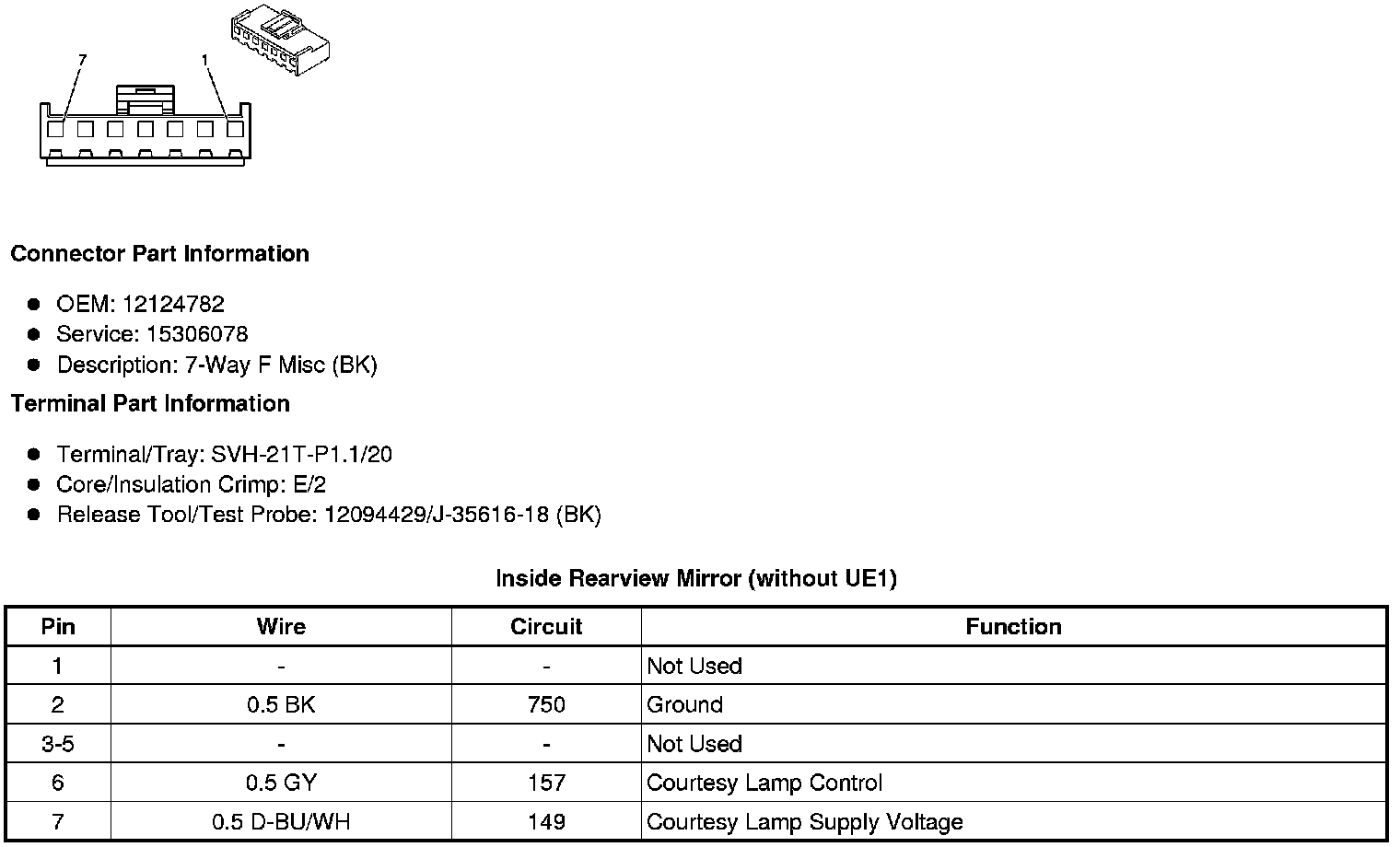

Inside Rearview Mirror (without UE1)

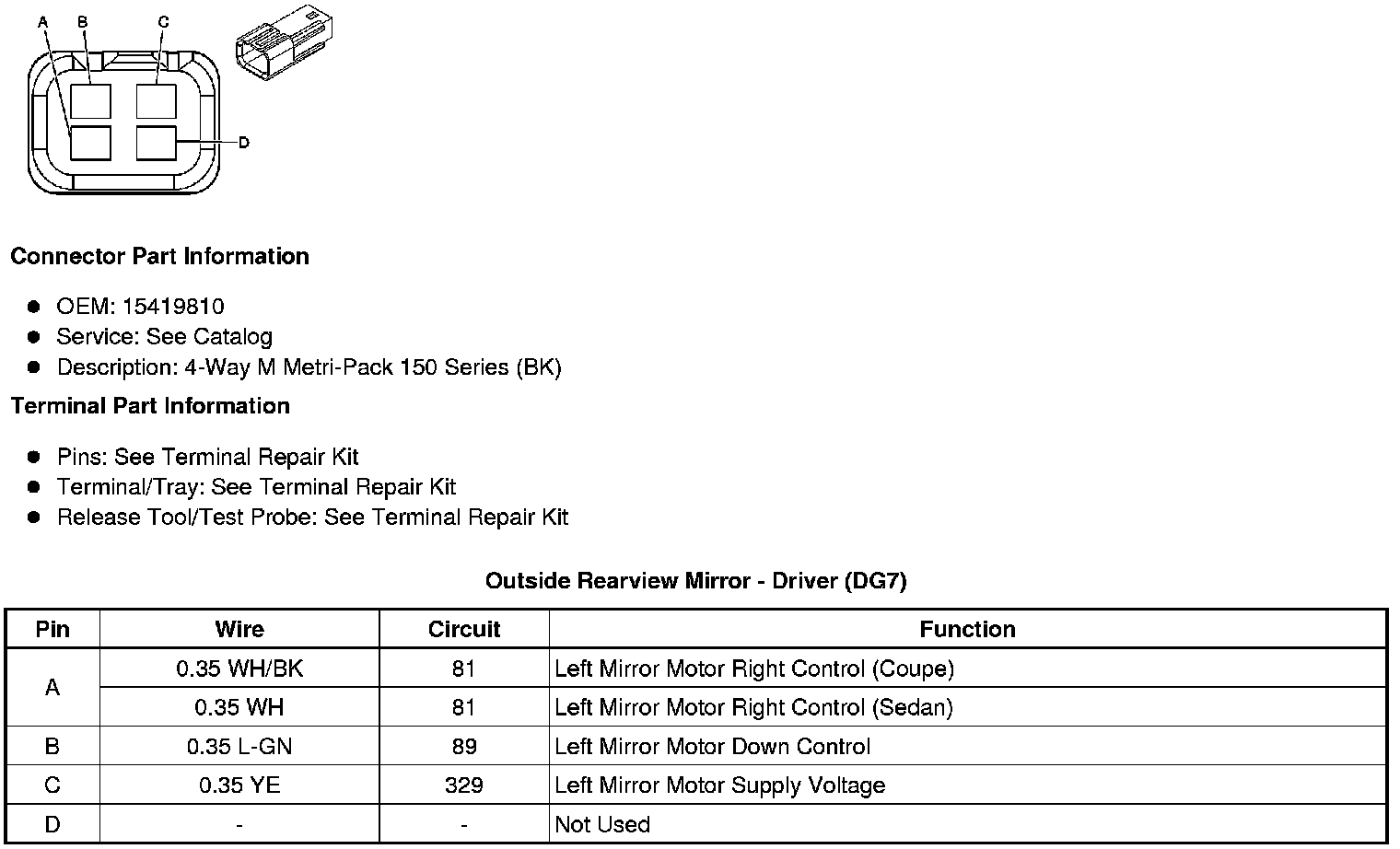

Outside Rearview Mirror - Driver (DG7)

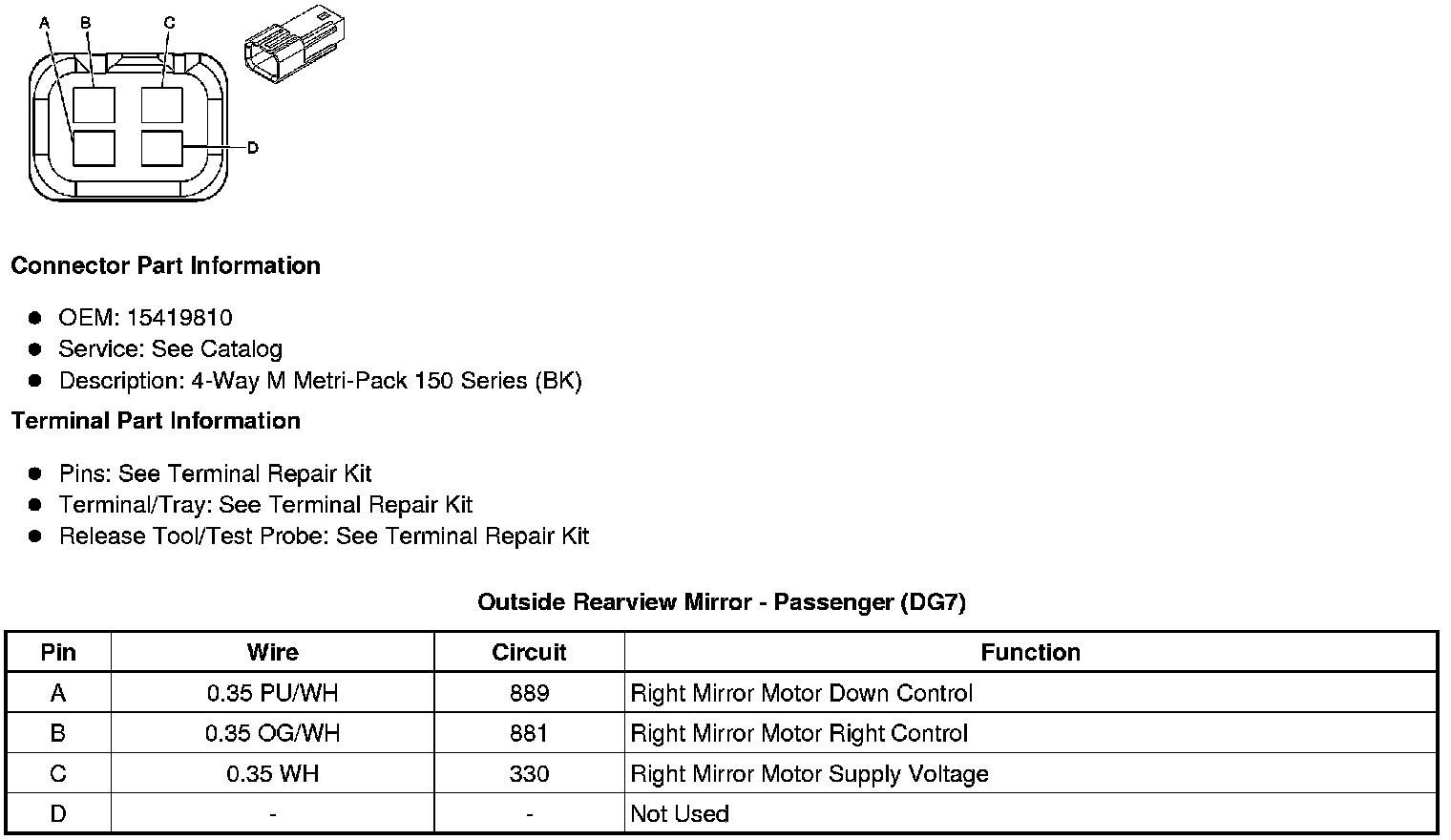

Outside Rearview Mirror - Passenger (DG7)
