Lateral Accelerometer

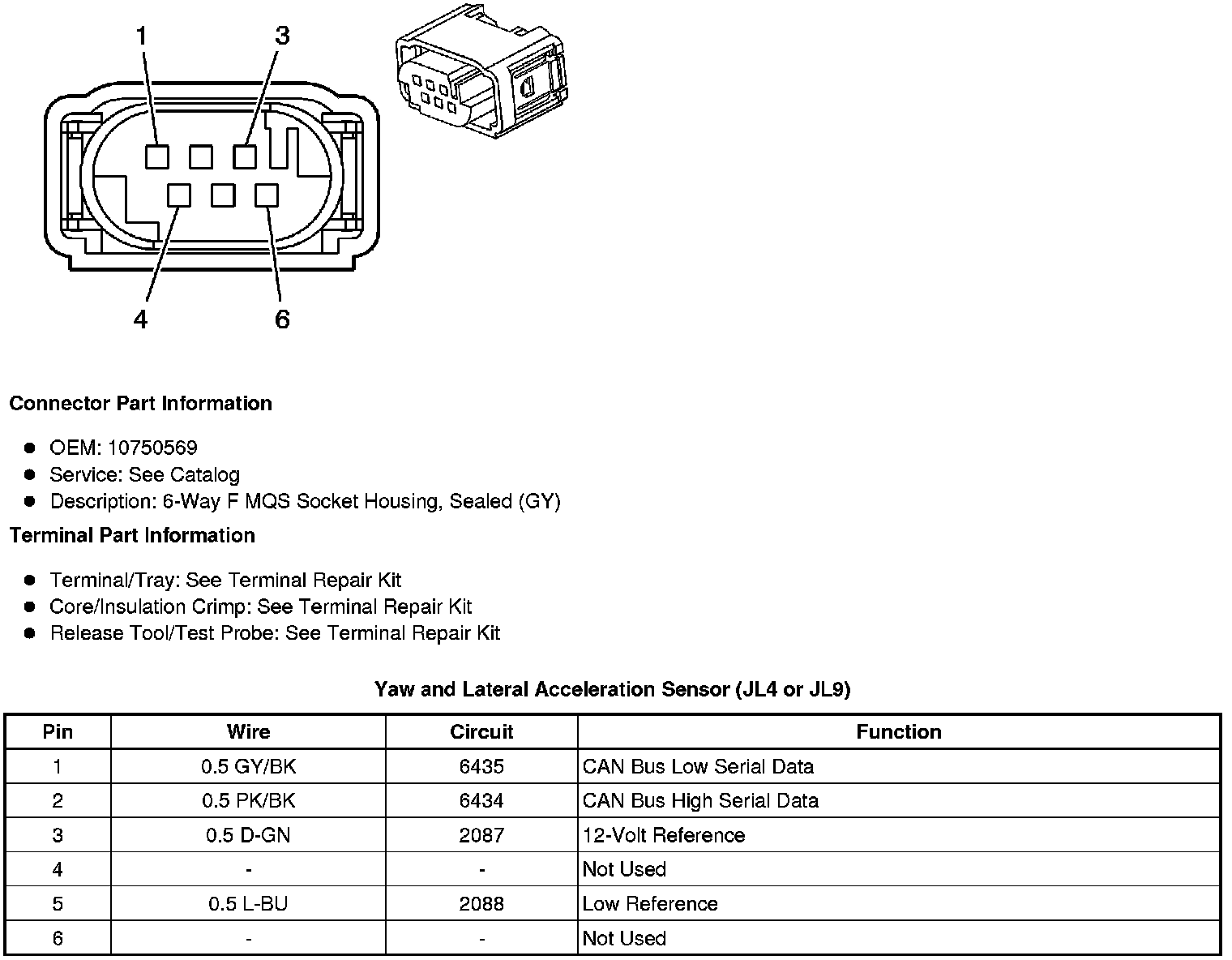

Component Connector End Views

Yaw and Lateral Acceleration Sensor (JL4 or JL9)
