Home >> Chevrolet >> 2009 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp >> System Diagram

System Diagram




Component Connector End Views

Fog Lamp - Left Front (T37)

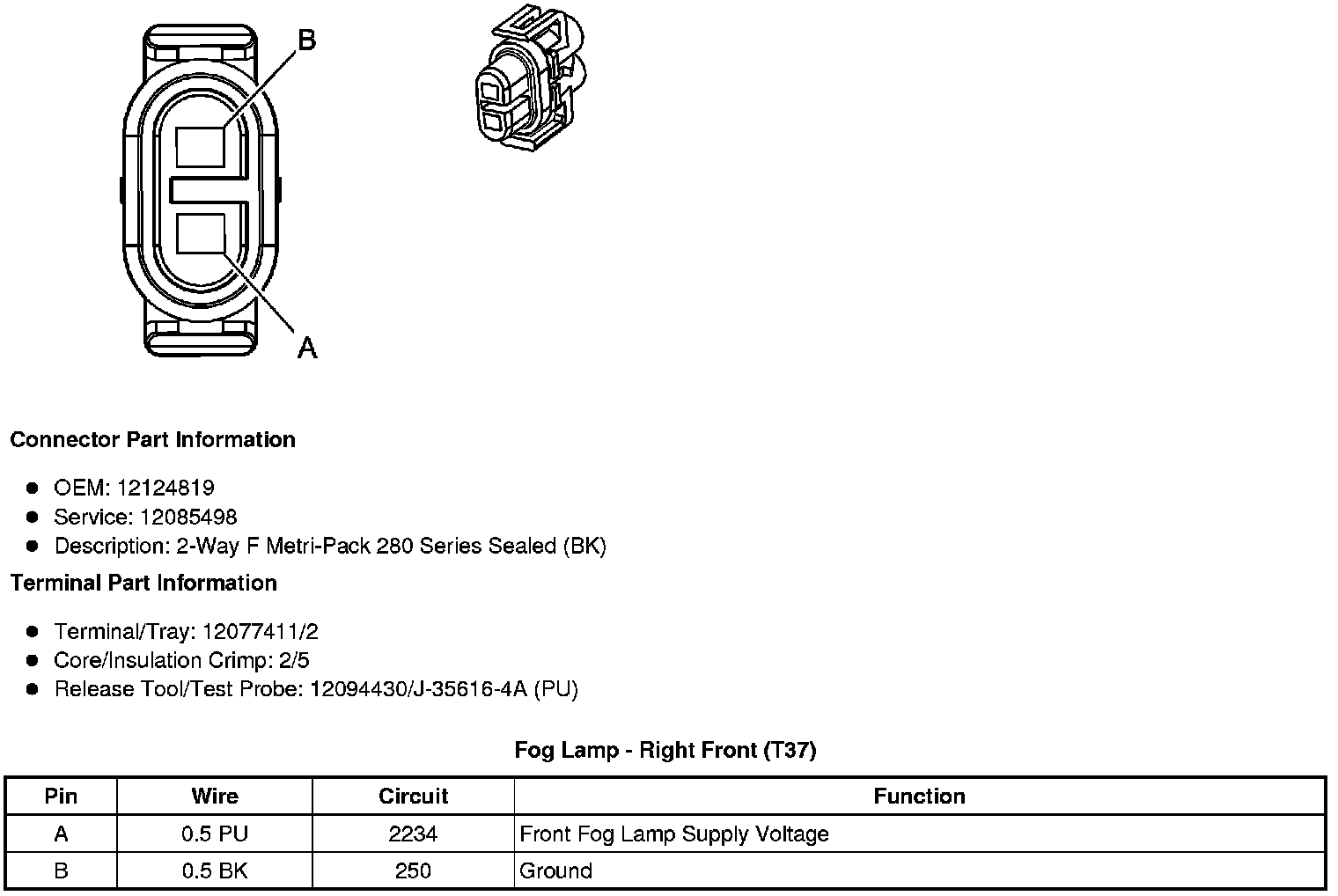

Fog Lamp - Right Front (T37)
