Engine Control Module




Component Connector End Views

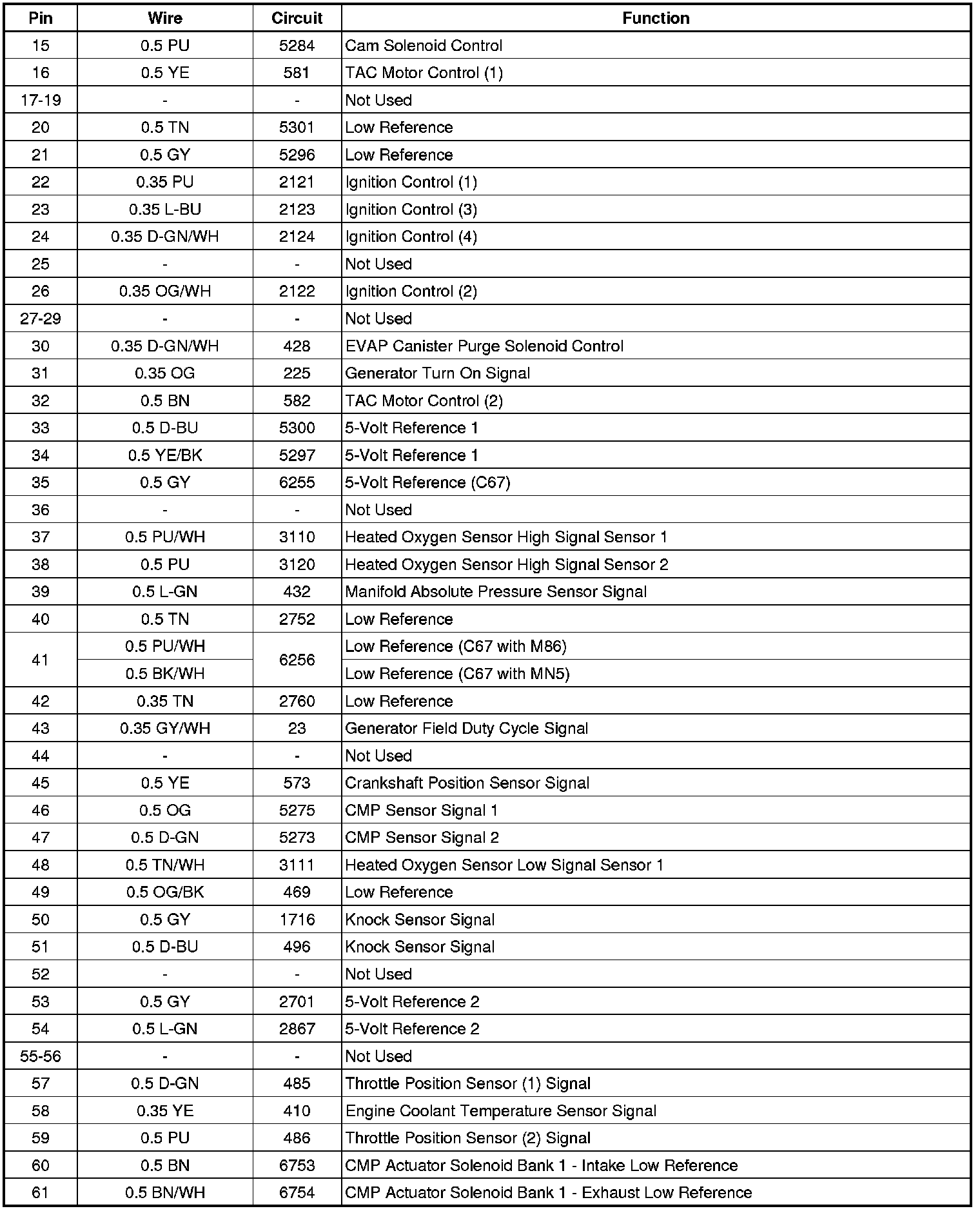

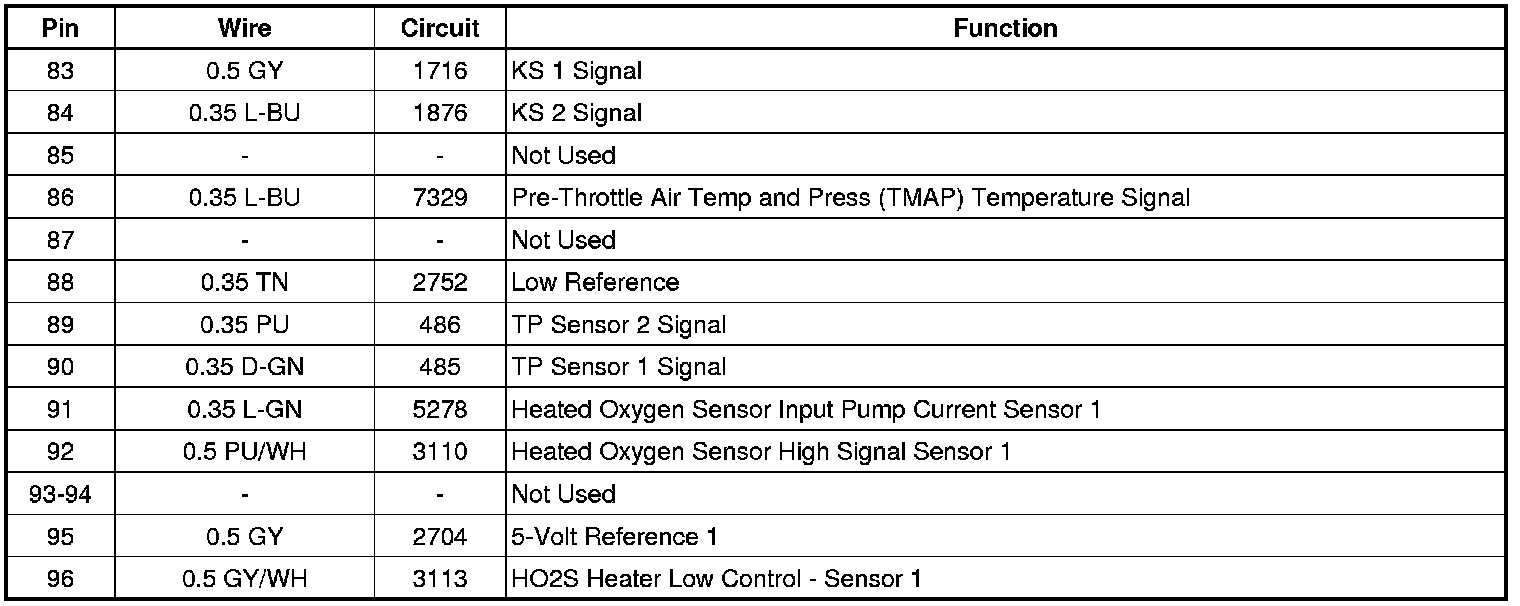

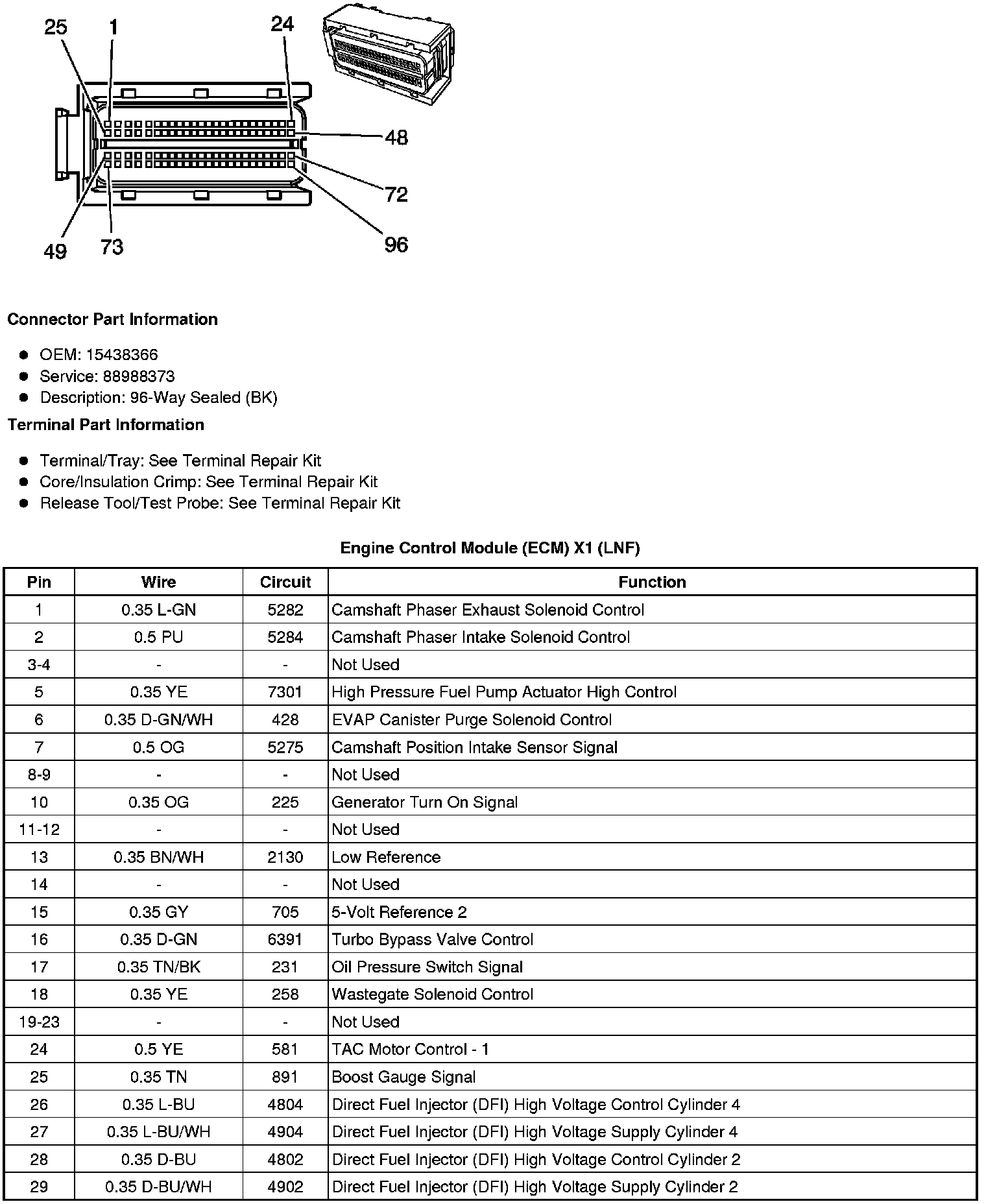

Engine Control Module (ECM) X1 (LNF)

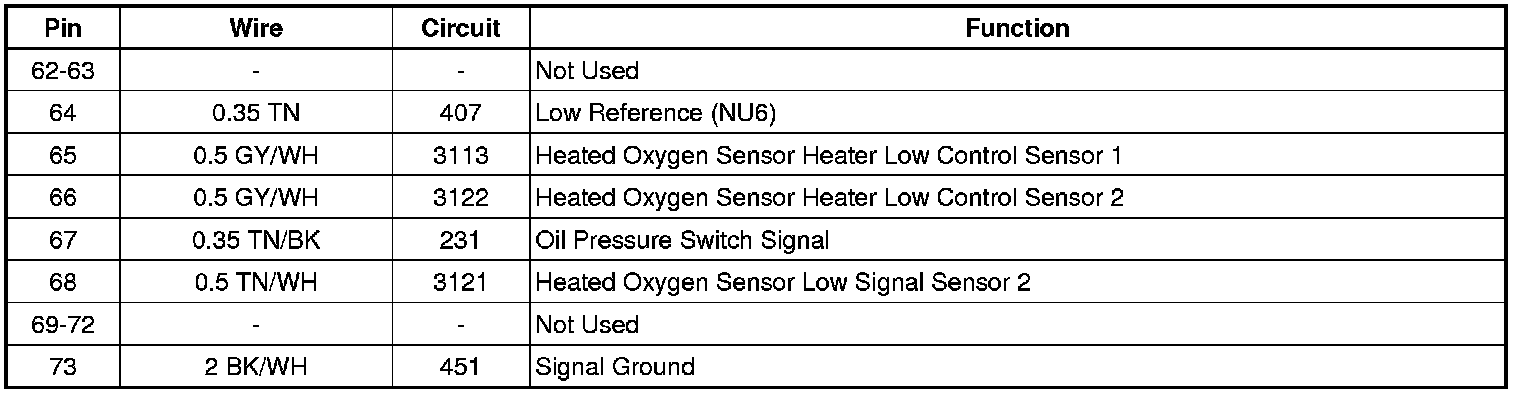

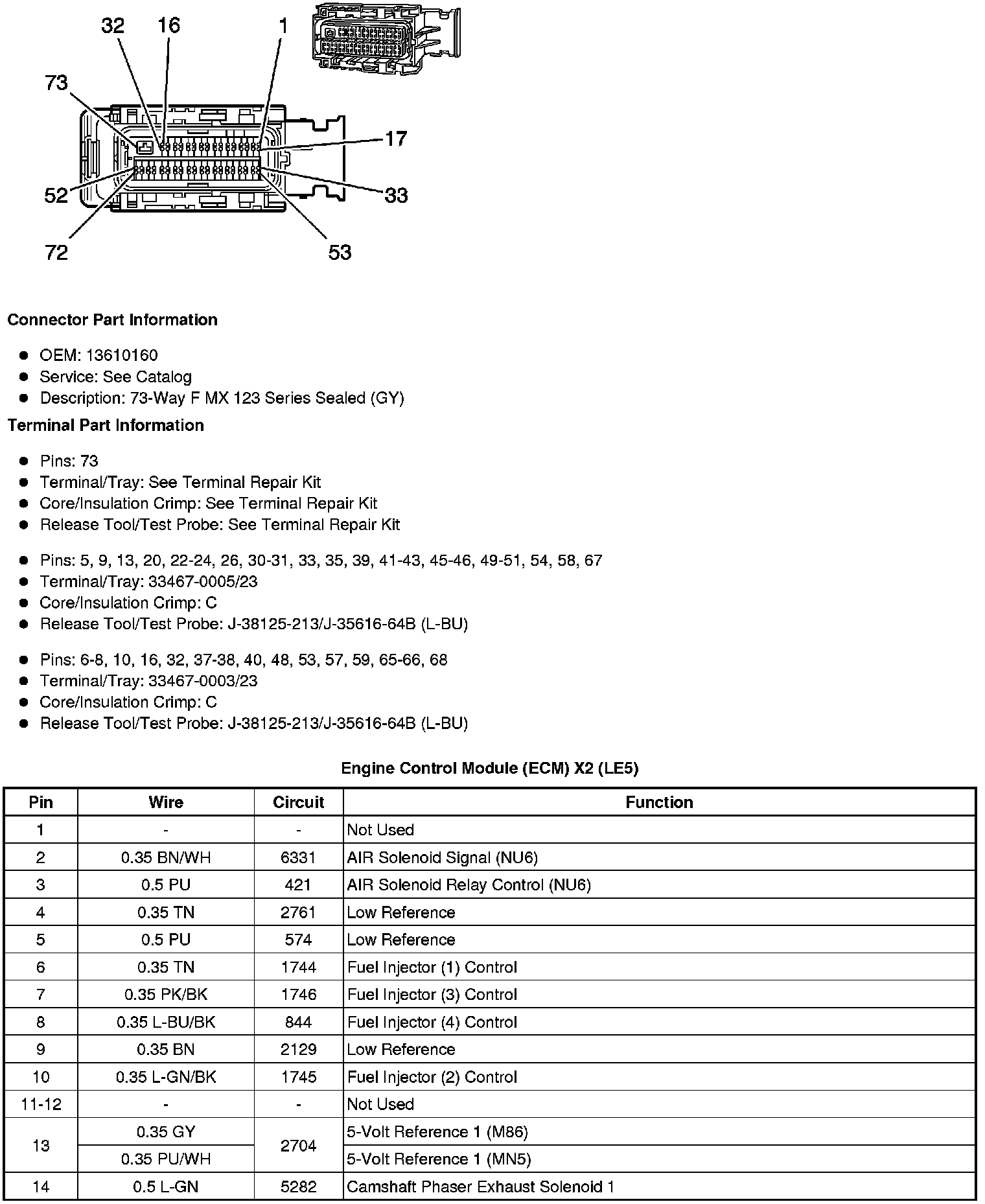

Engine Control Module (ECM) X2 (LE5)

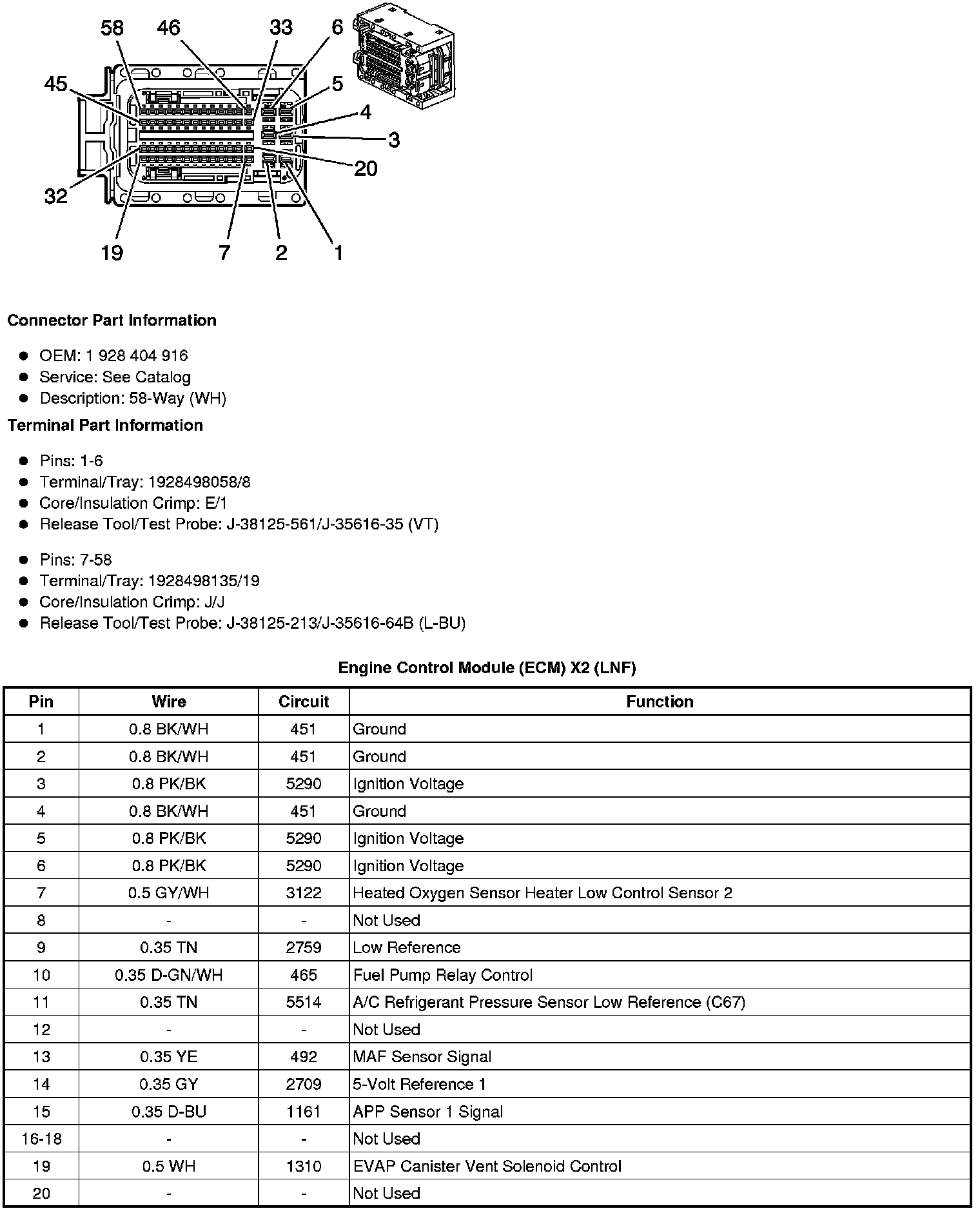

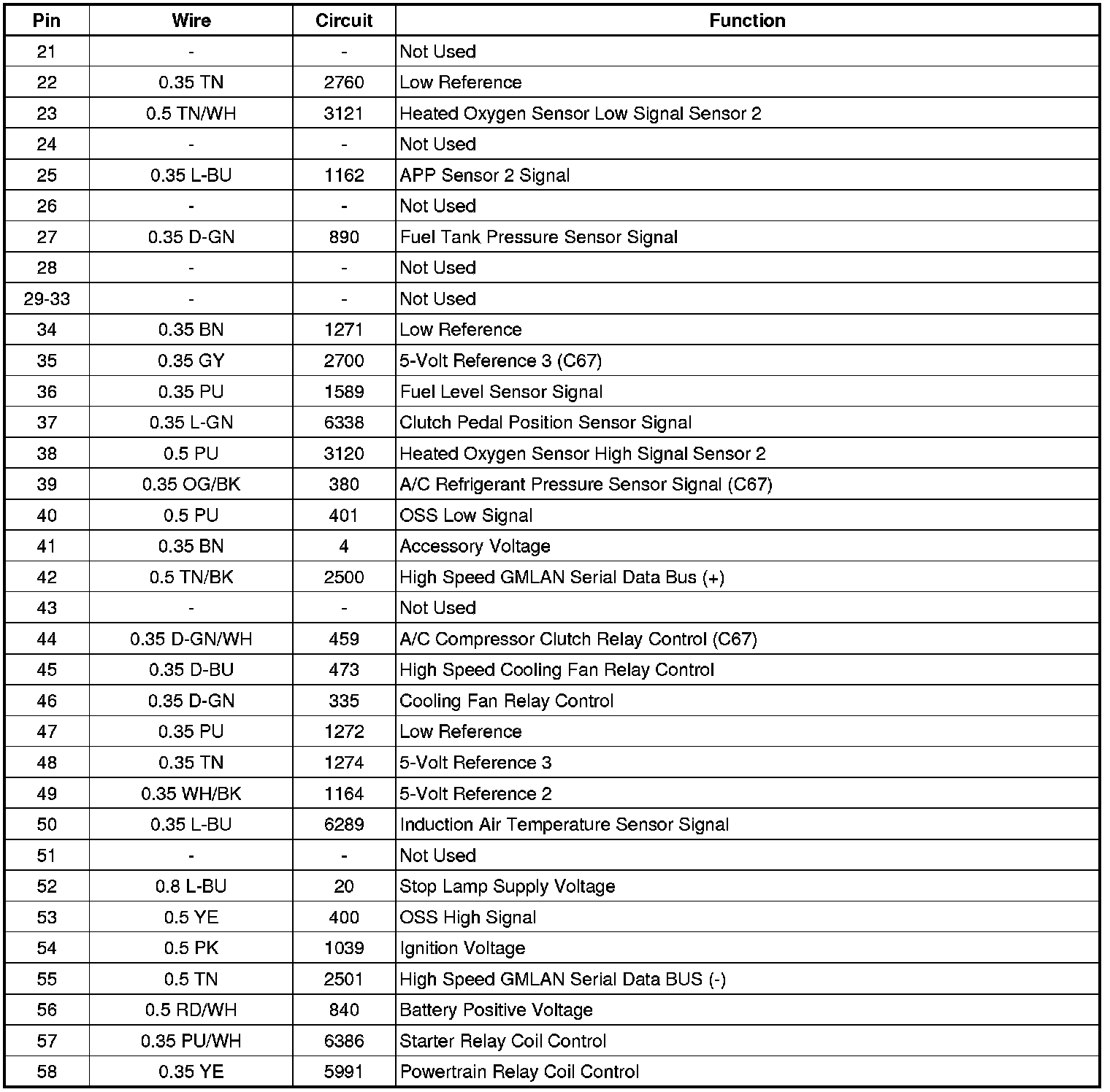

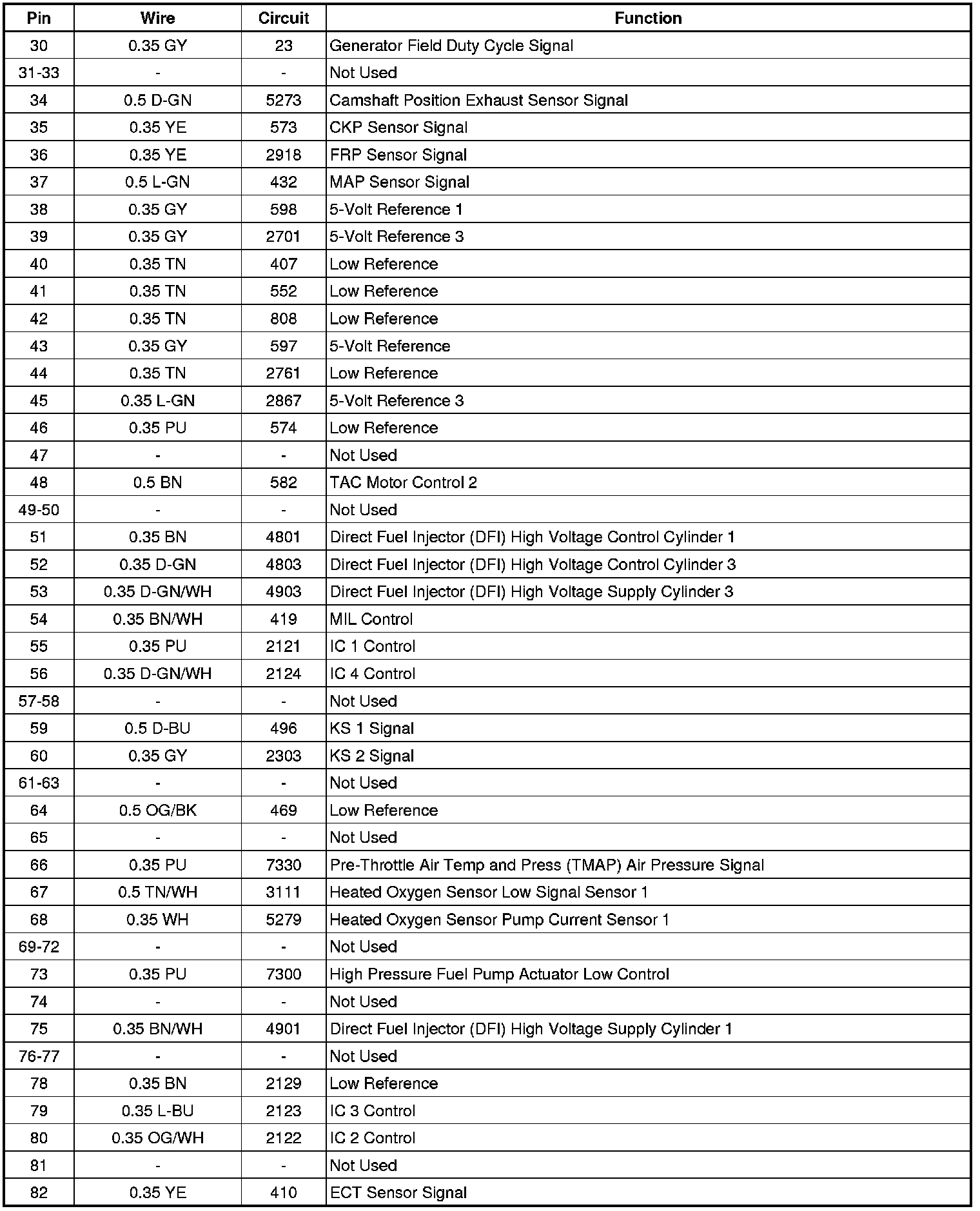

Engine Control Module (ECM) X2 (LNF)
