Electronic Brake Control Module




Component Connector End Views


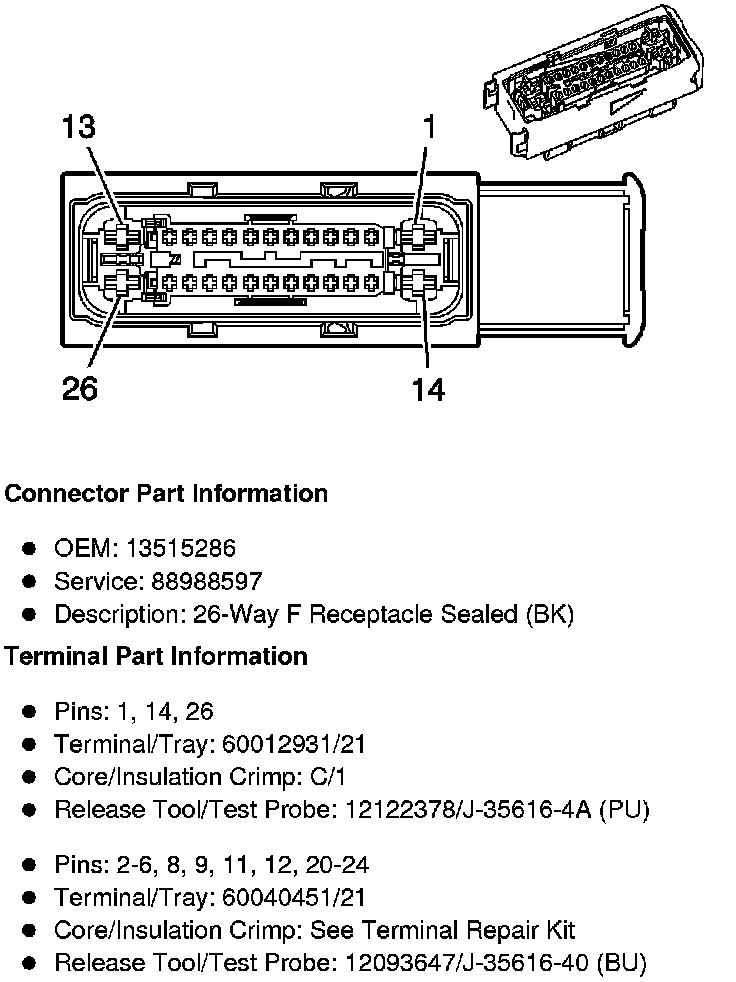

Electronic Brake Control Module (EBCM) (JM4)

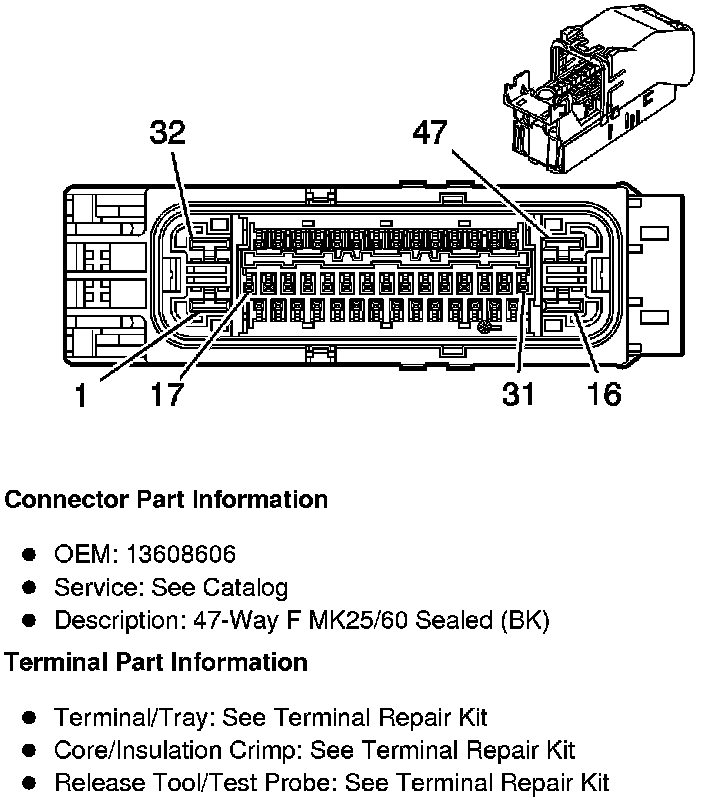

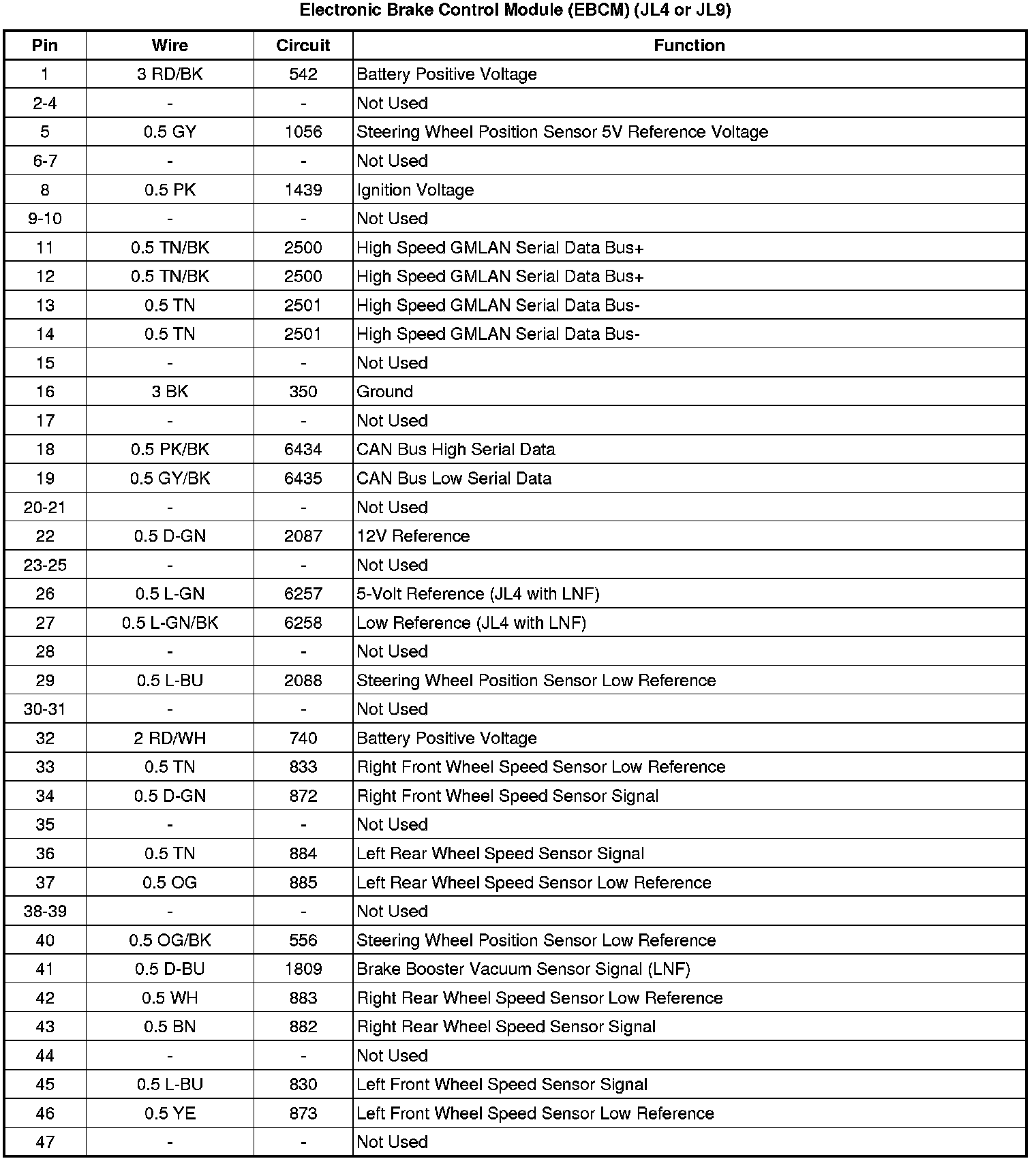

Electronic Brake Control Module (EBCM) (JL4 or JL9)
