Chevrolet
>>
2009
>>
Cobalt L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
Control Assembly, HVAC
Component Connector End Views

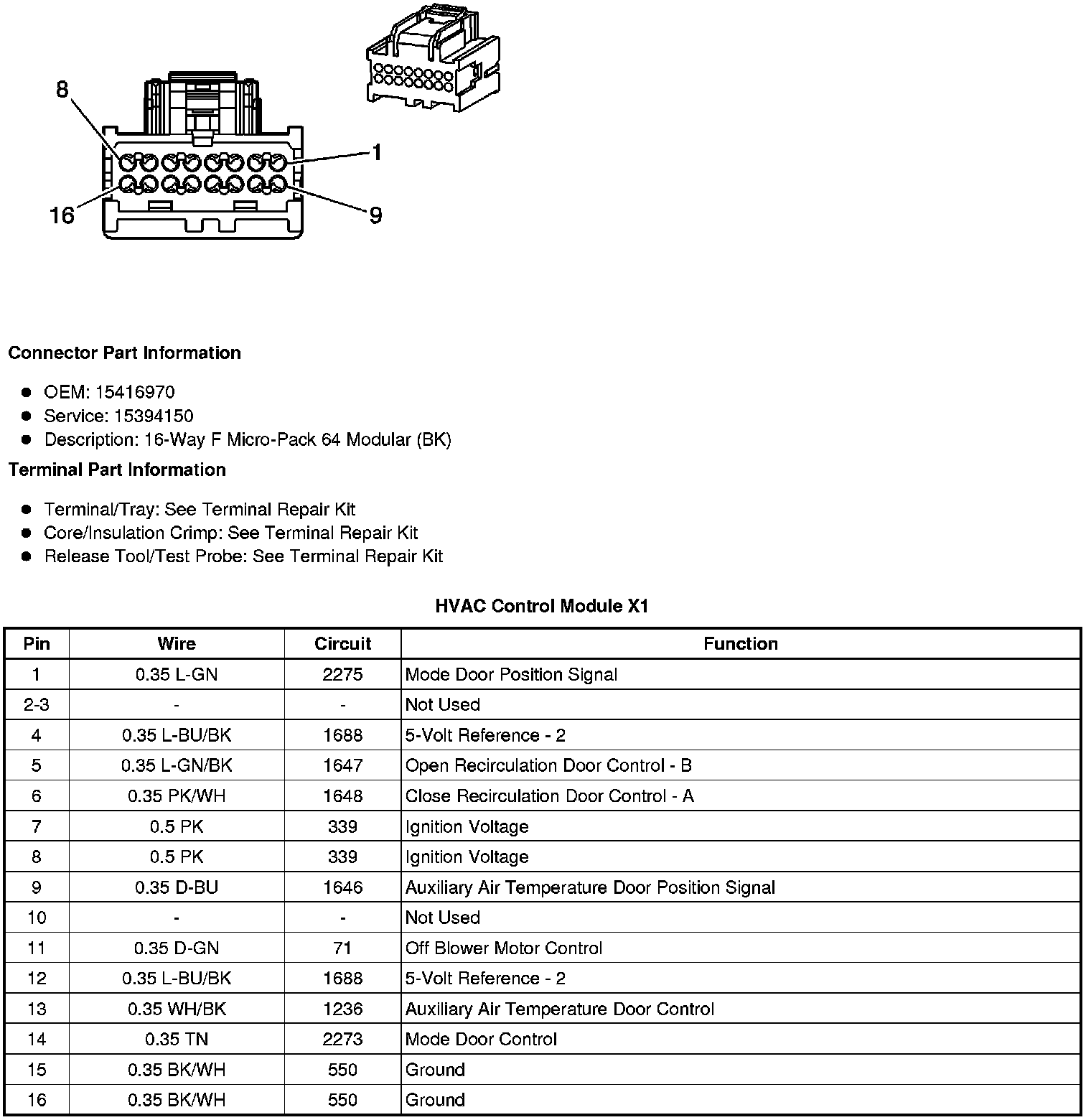

HVAC Control Module X1

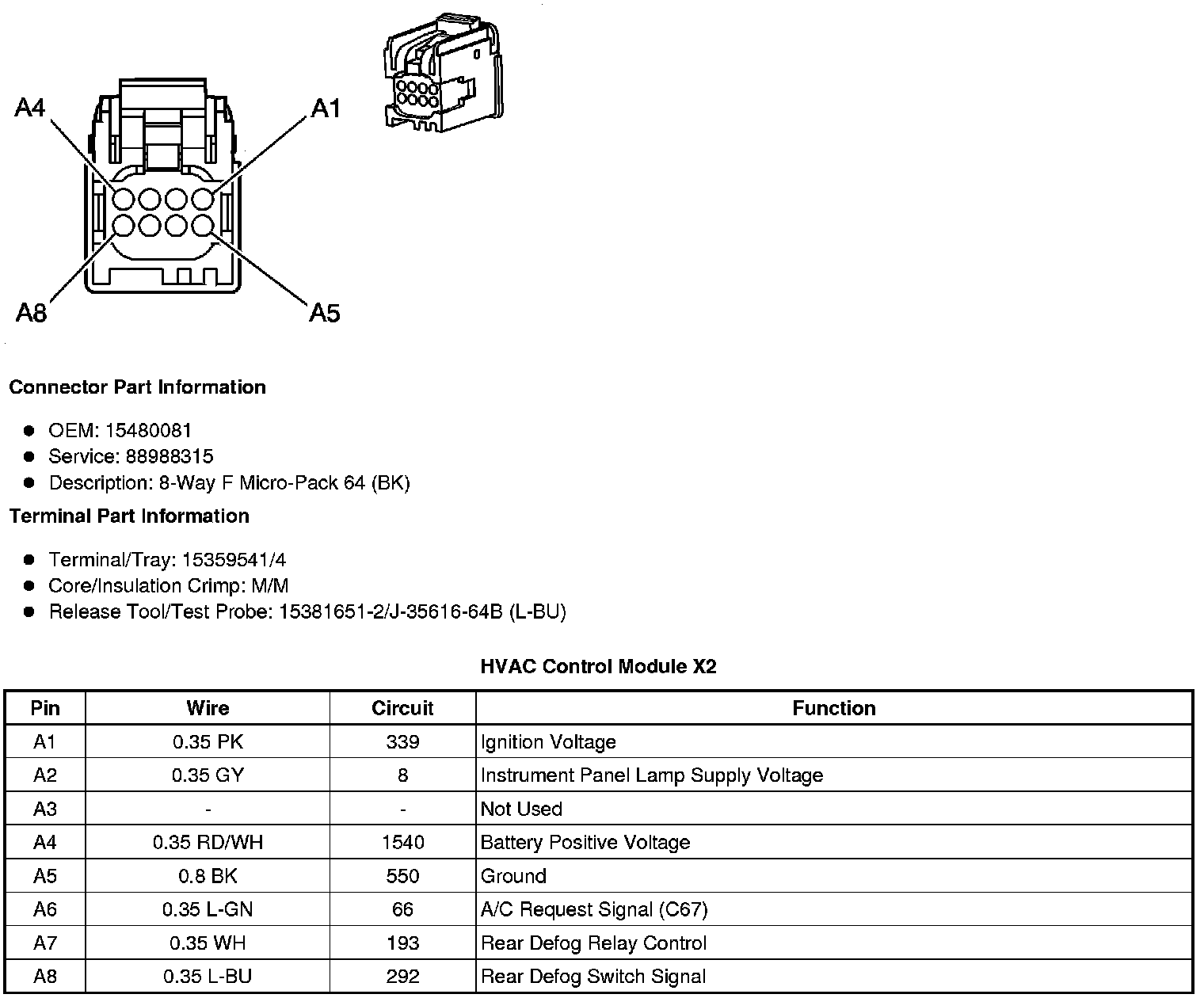

HVAC Control Module X2

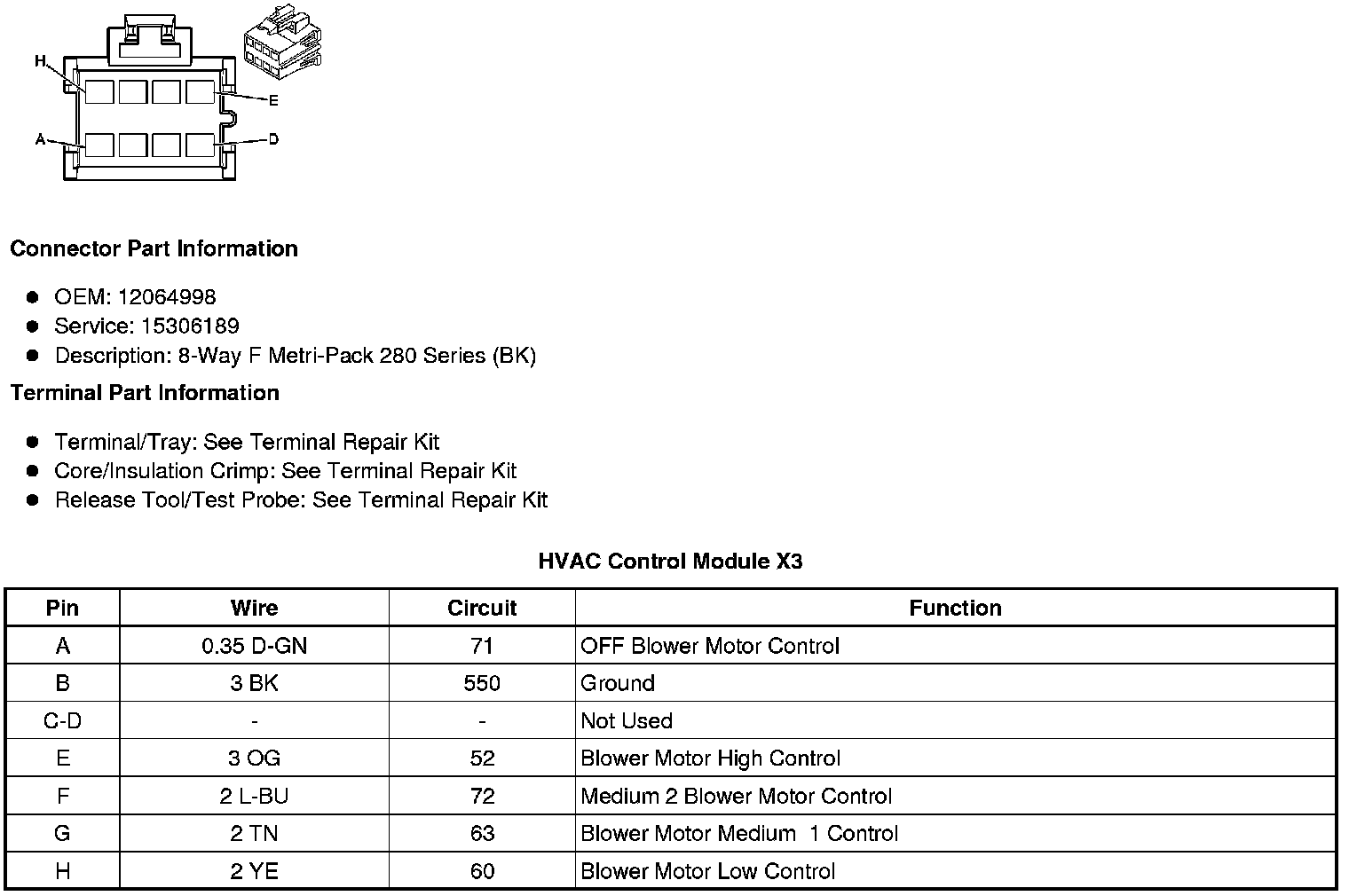

HVAC Control Module X3
