Canister Vent Valve
Canister Vent Valve

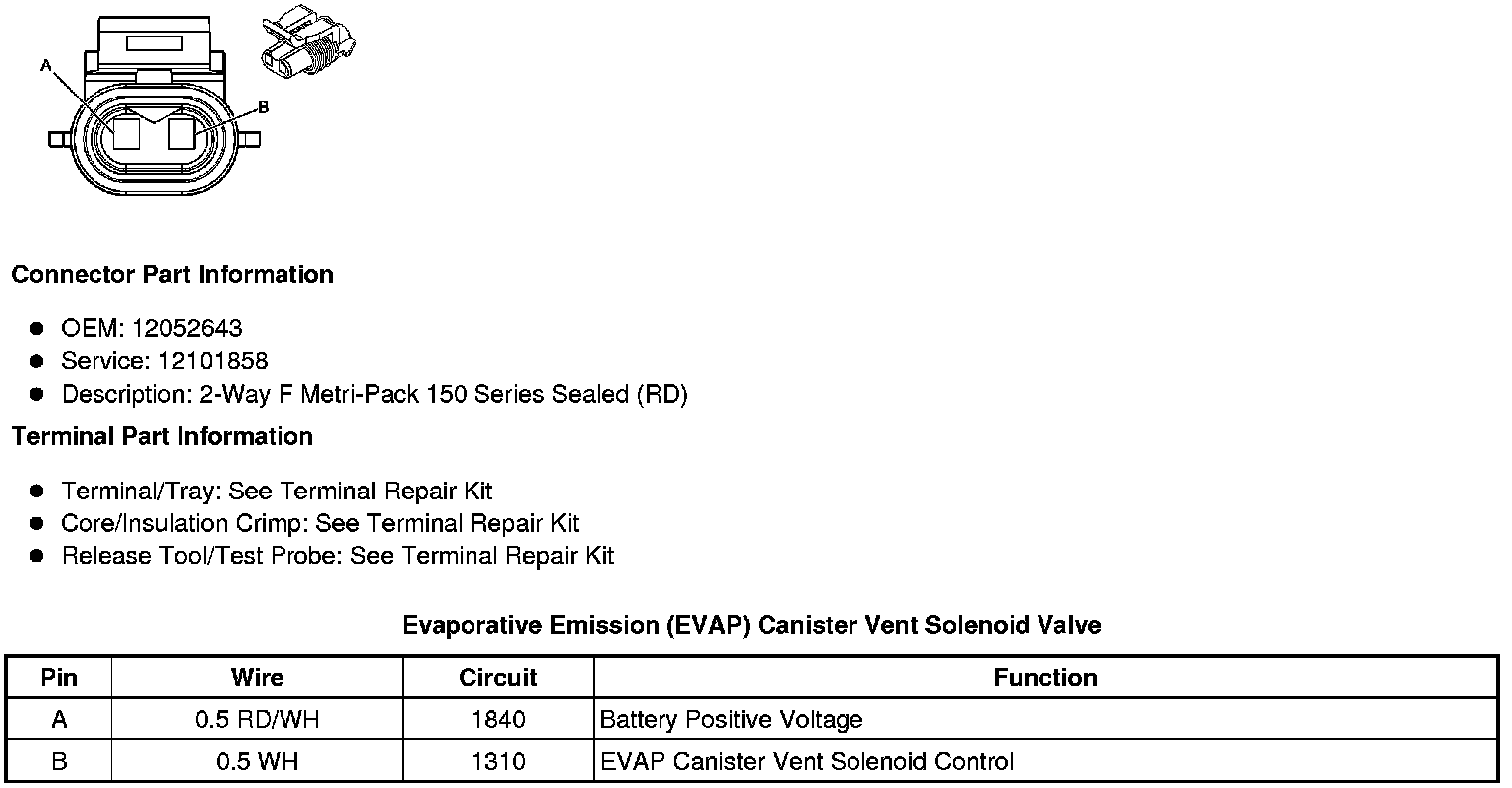

Component Connector End Views
Evaporative Emission (EVAP) Canister Vent Solenoid Valve
