Auxiliary Power Outlet
Auxiliary Power Outlet
Component Connector End Views

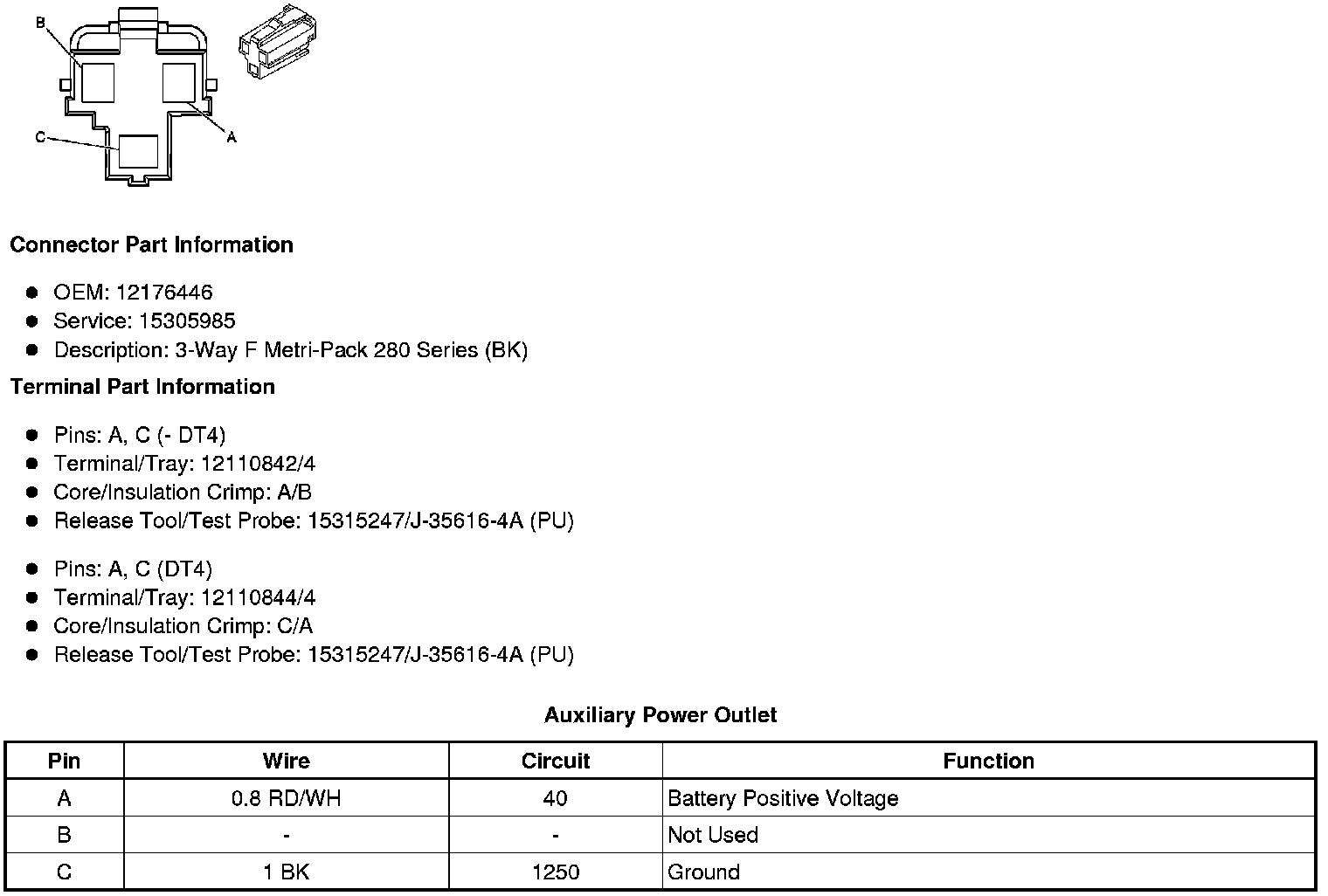

Auxiliary Power Outlet

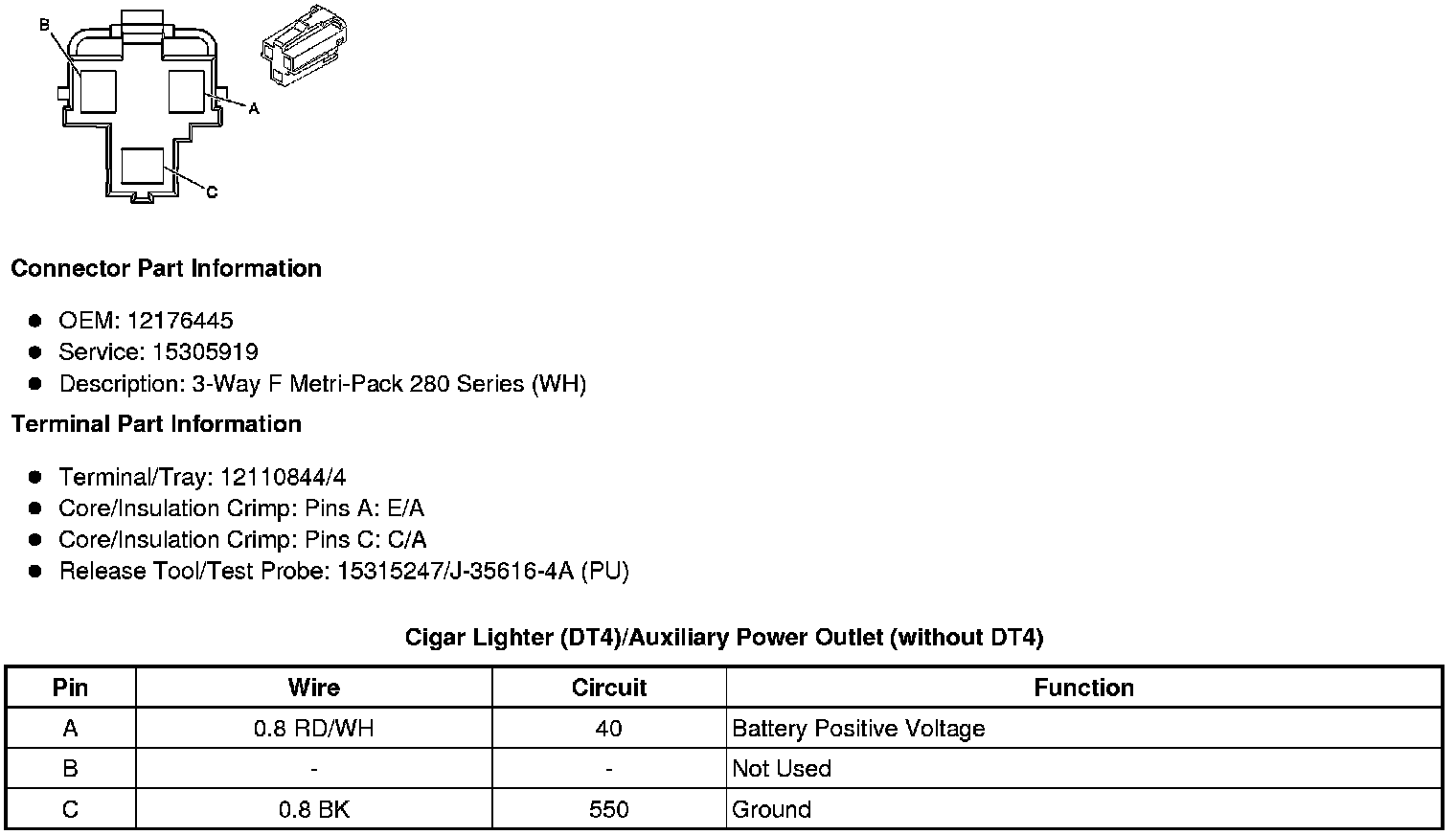

Cigar Lighter (DT4)/
Auxiliary Power Outlet
(without DT4)
