Air Bag Deactivation Indicator
Air Bag Deactivation Indicator

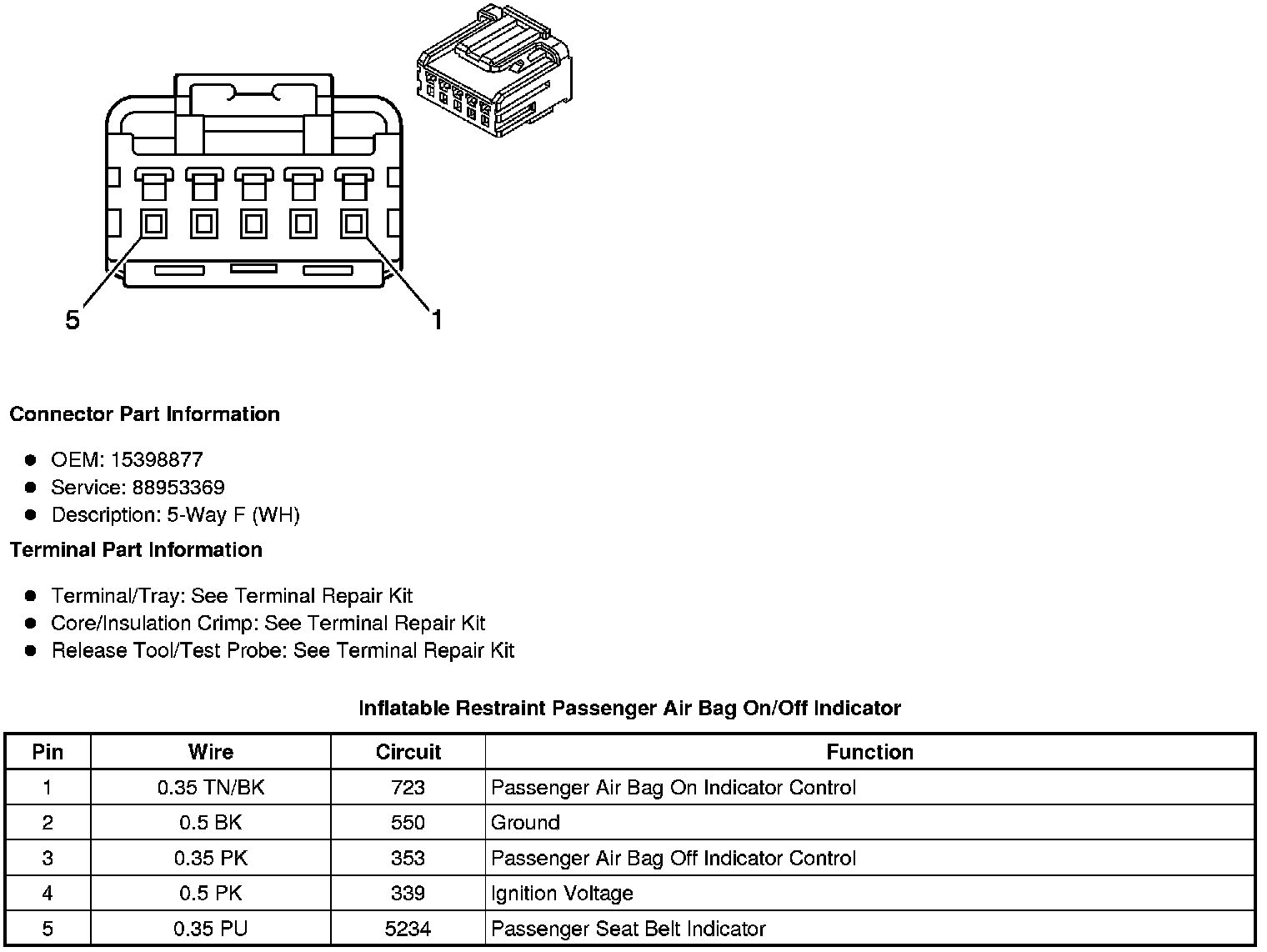

Component Connector End Views
Inflatable Restraint Passenger Air Bag On/Off Indicator
