Home >> Chevrolet >> 2009 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accelerator Pedal Position Sensor

Accelerator Pedal Position Sensor




Component Connector End Views

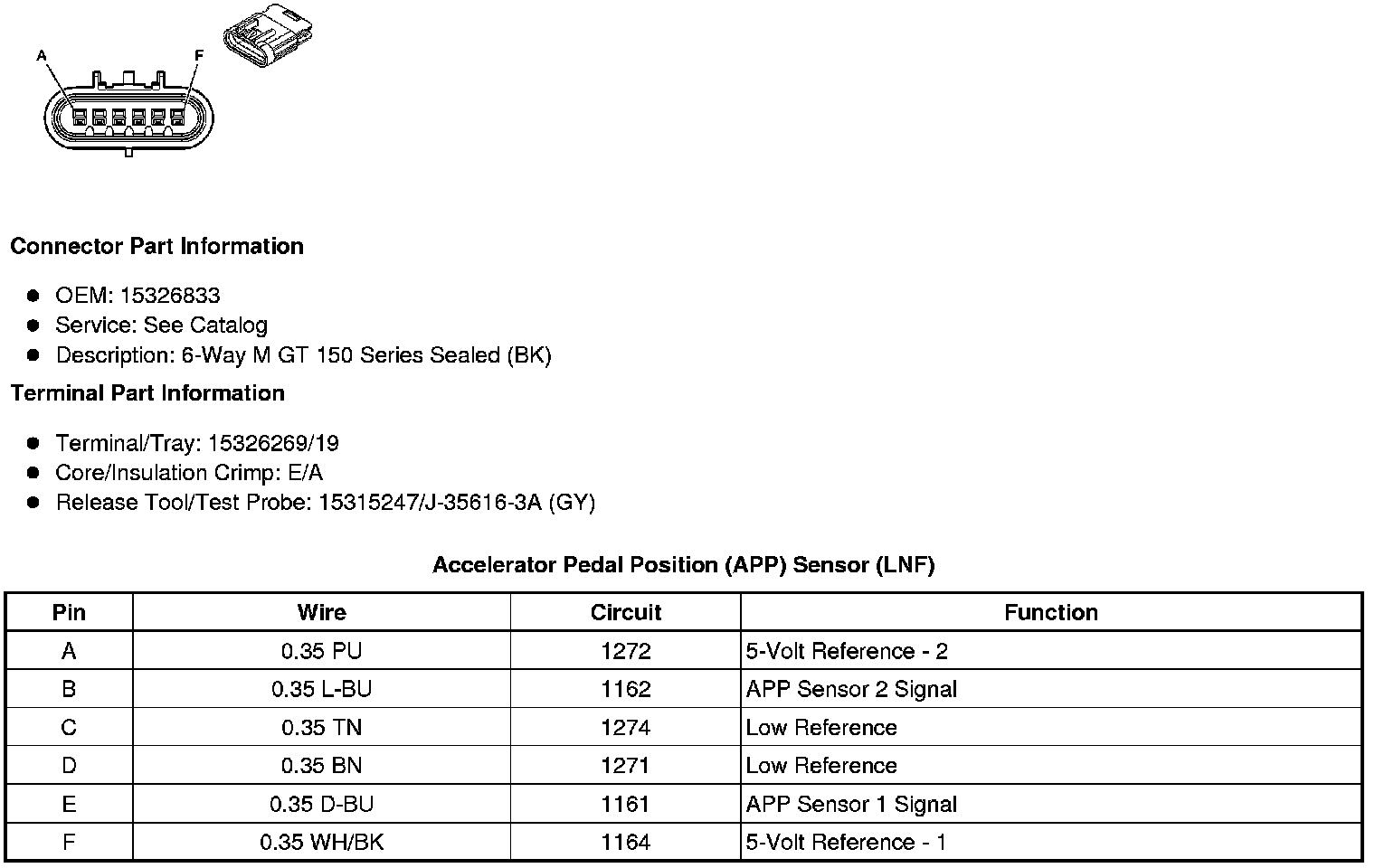

Accelerator Pedal Position (APP) Sensor (LNF)
