A - Z Index
Master Electrical Component List
1-2 Sh - Ba:

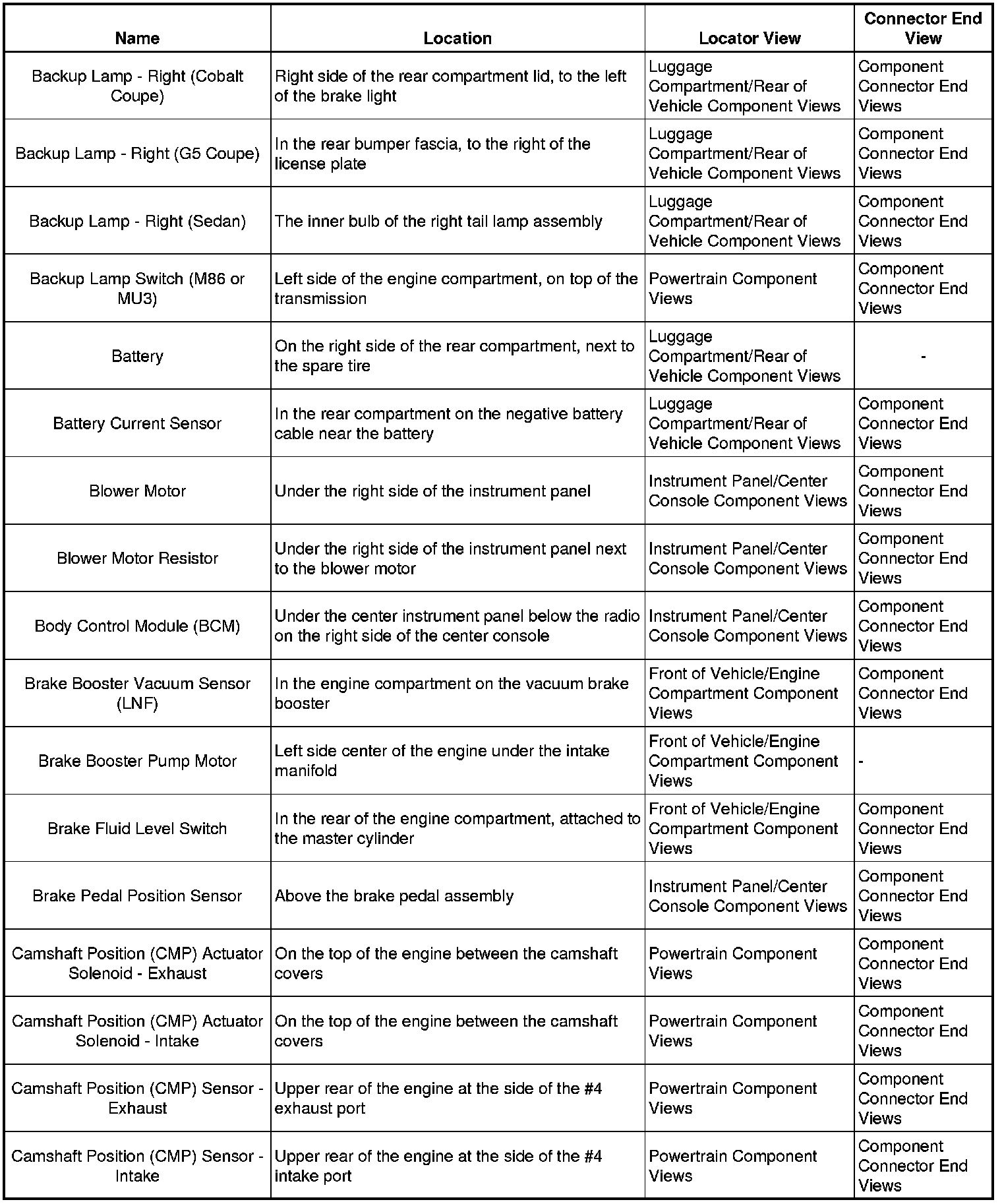

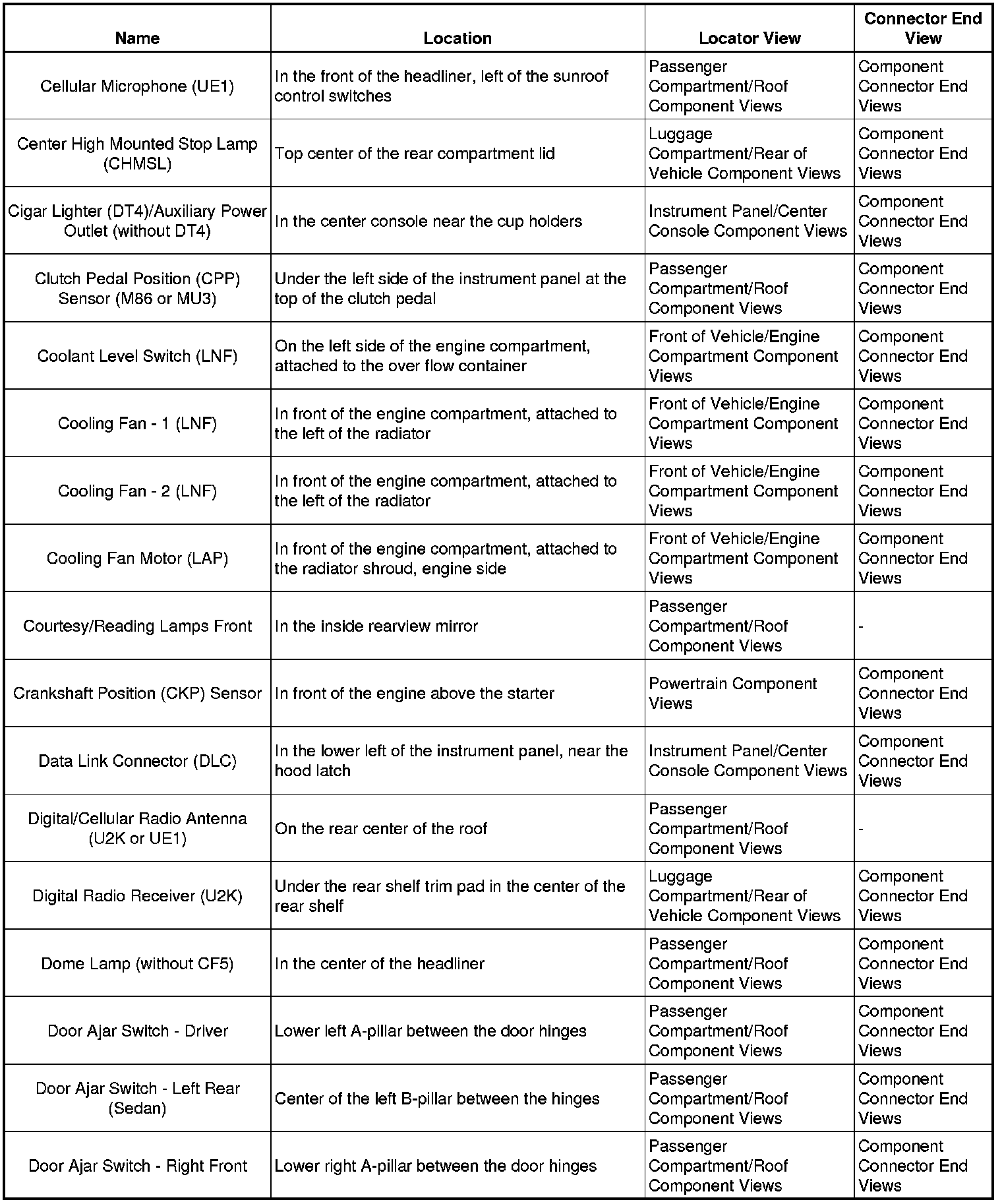

Ba - Ca:

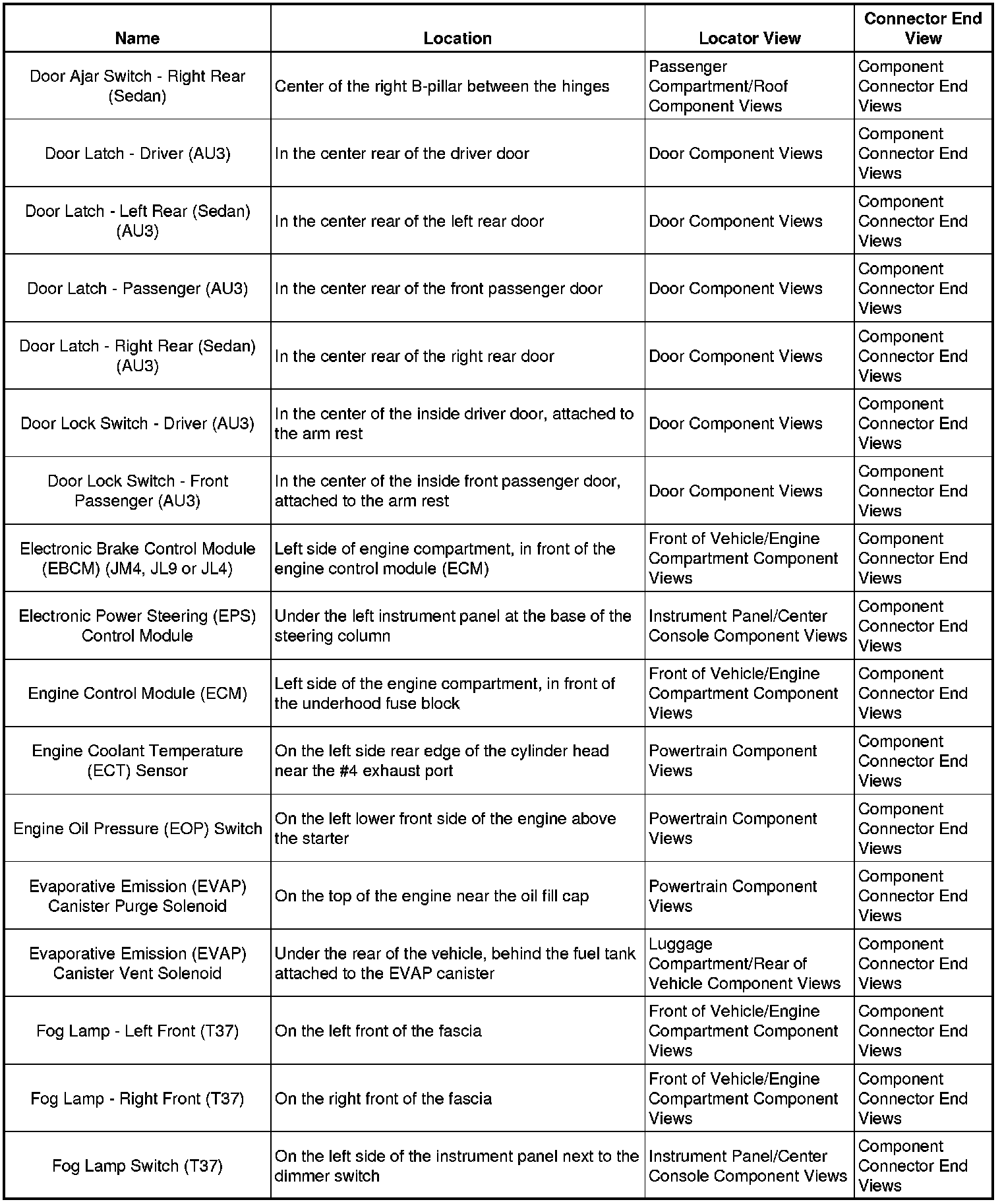

Ce - Do:

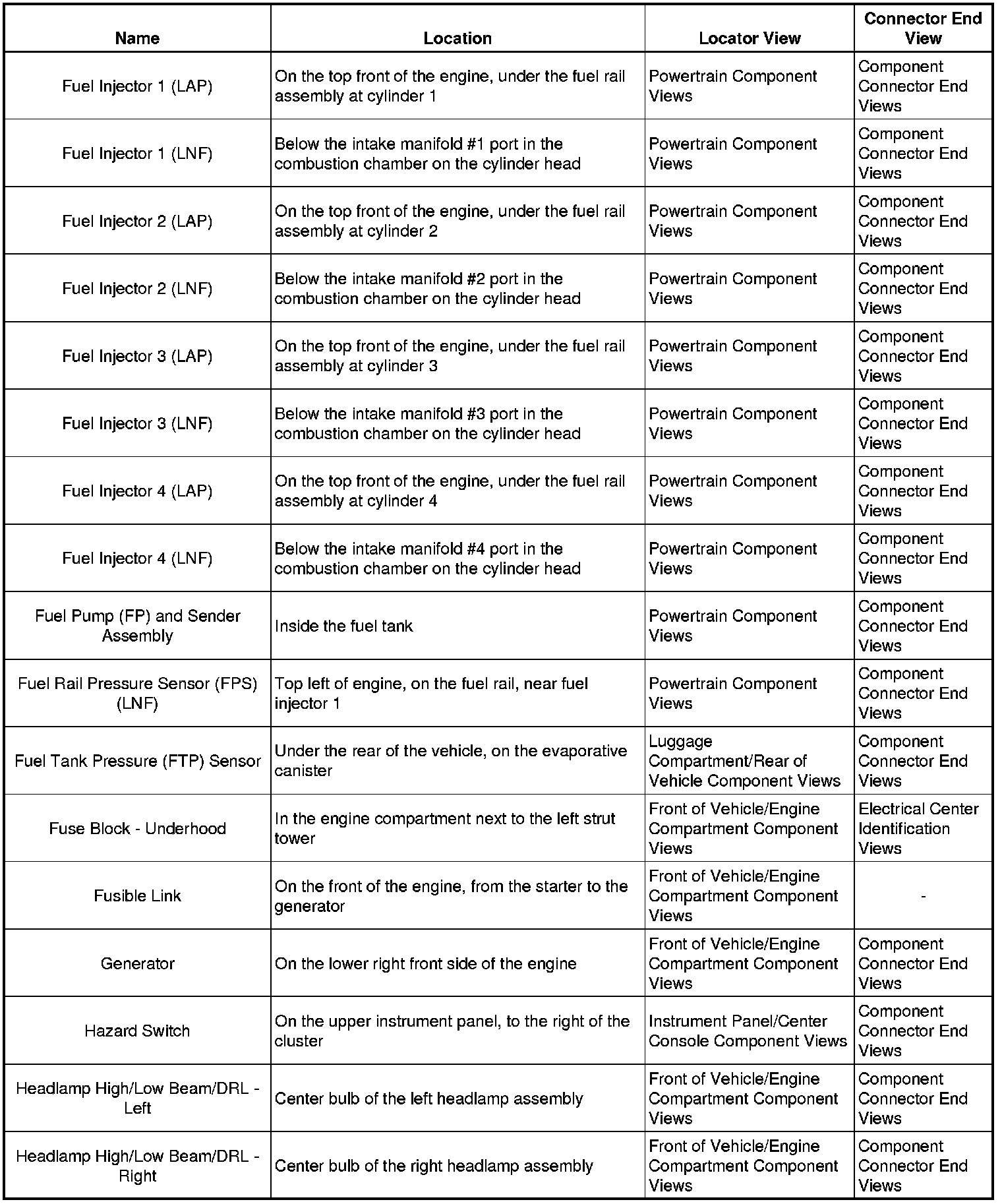

Do - Fo:

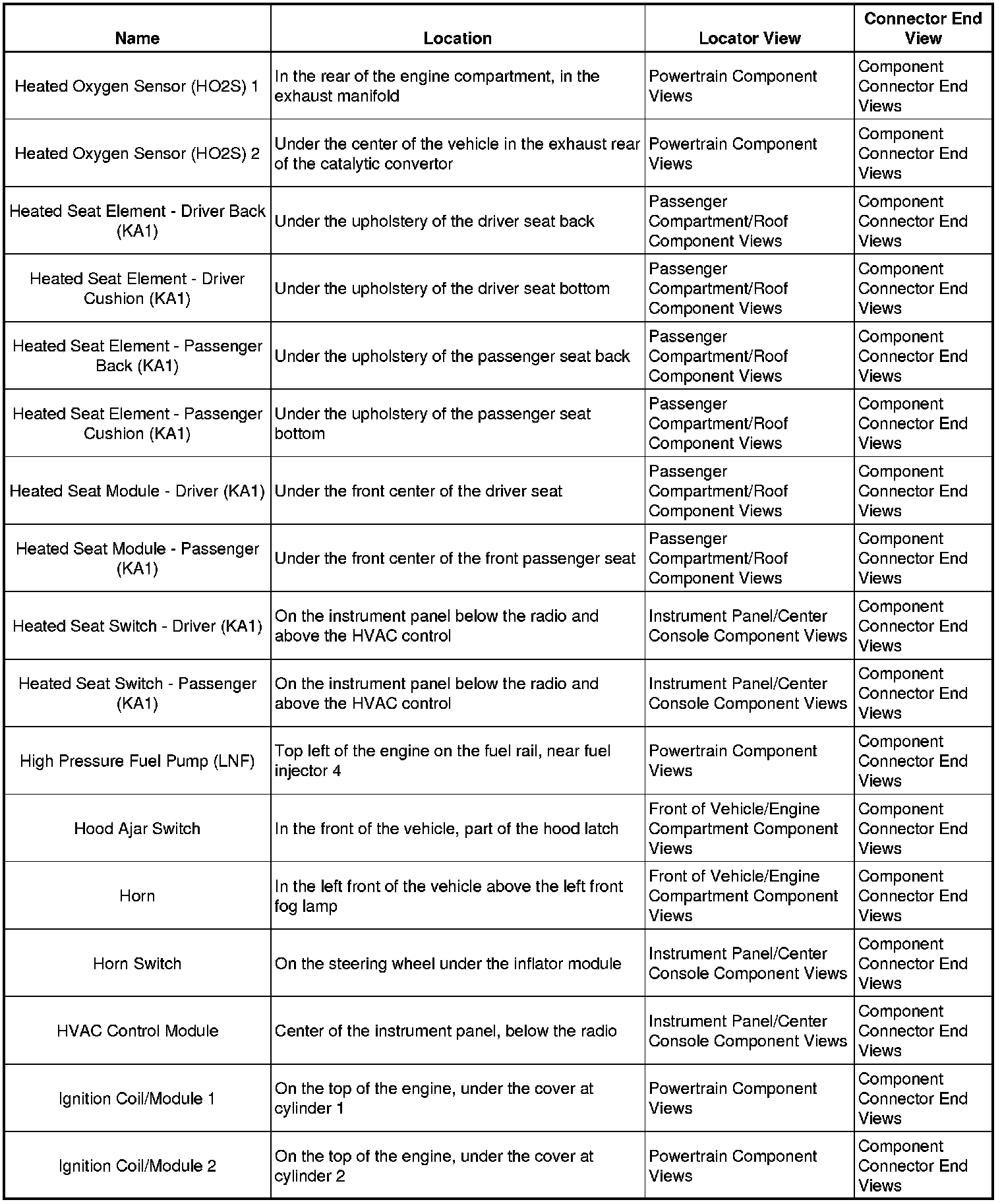

Fu - He:

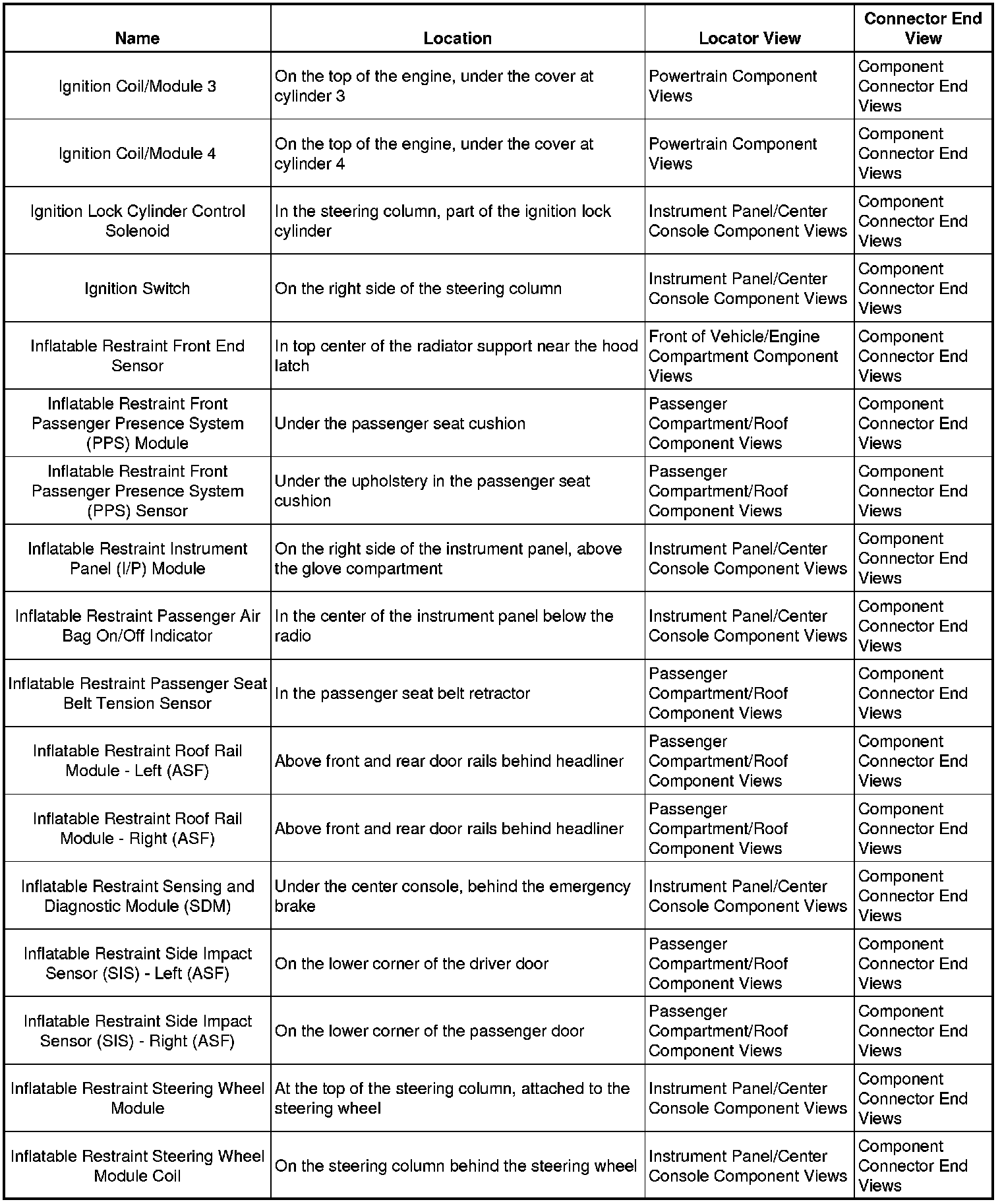

He - Ig:
Ig - In:

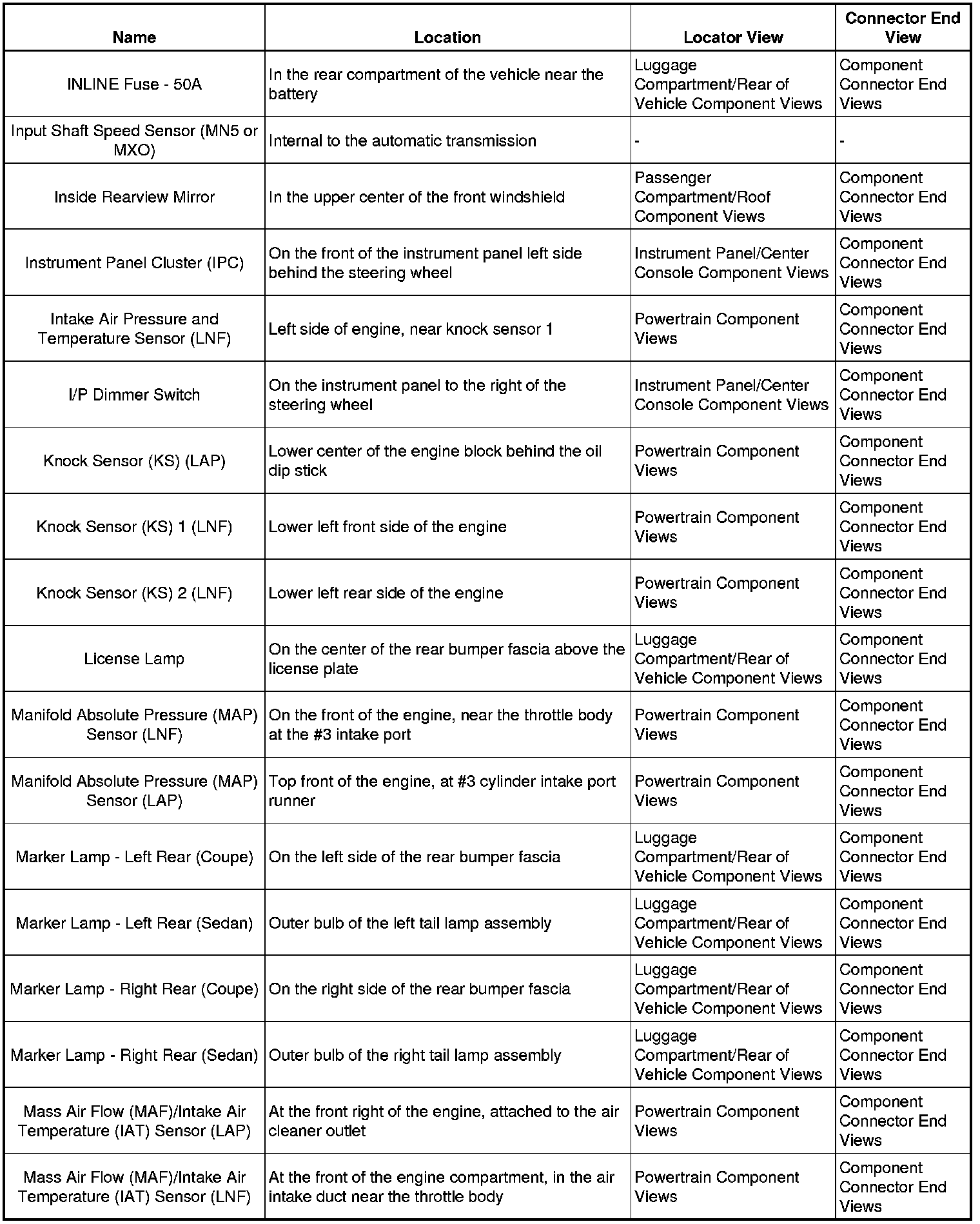

IN - Ma:

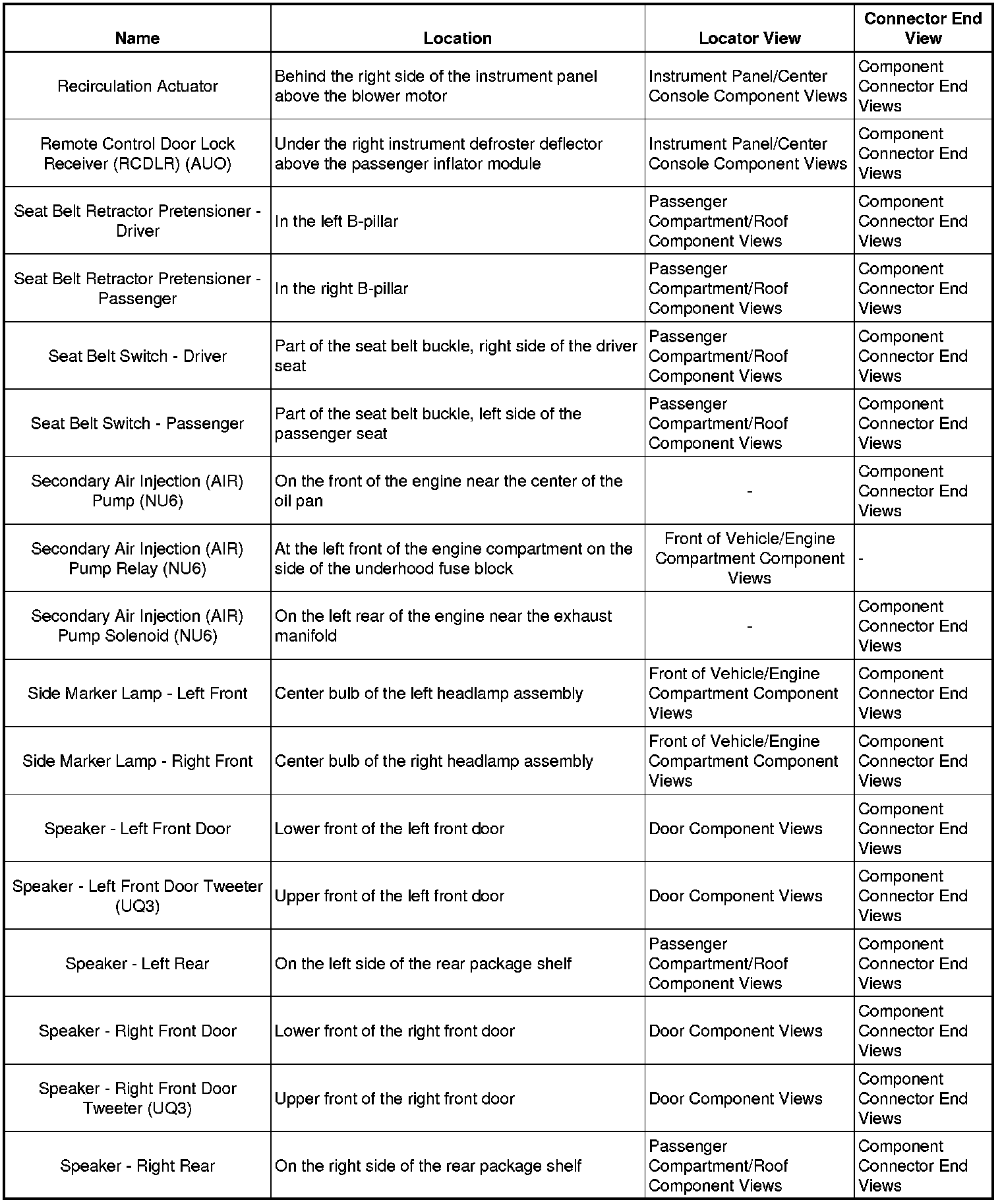

Mo - Re:

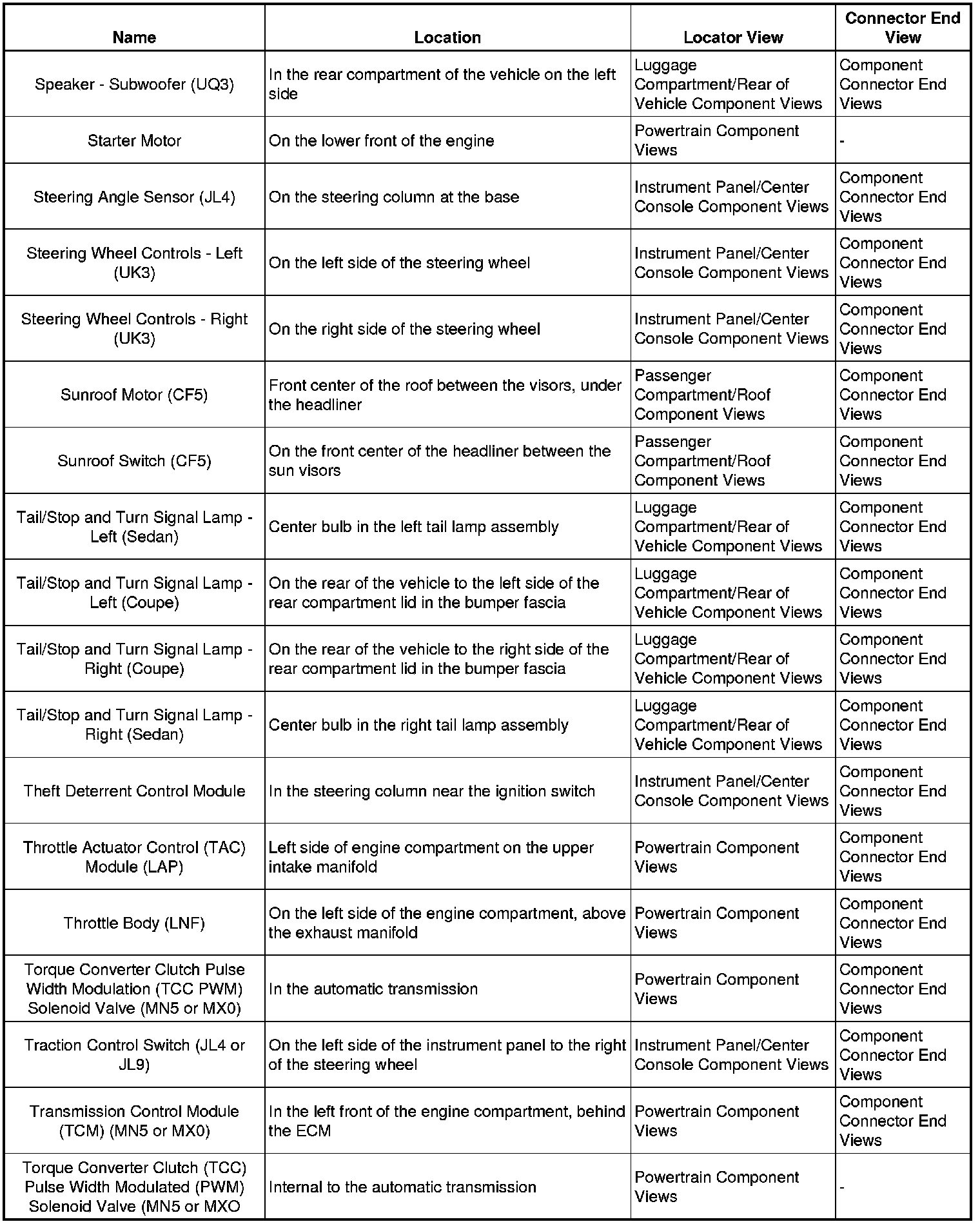

Re - Sp:
Sp - To:

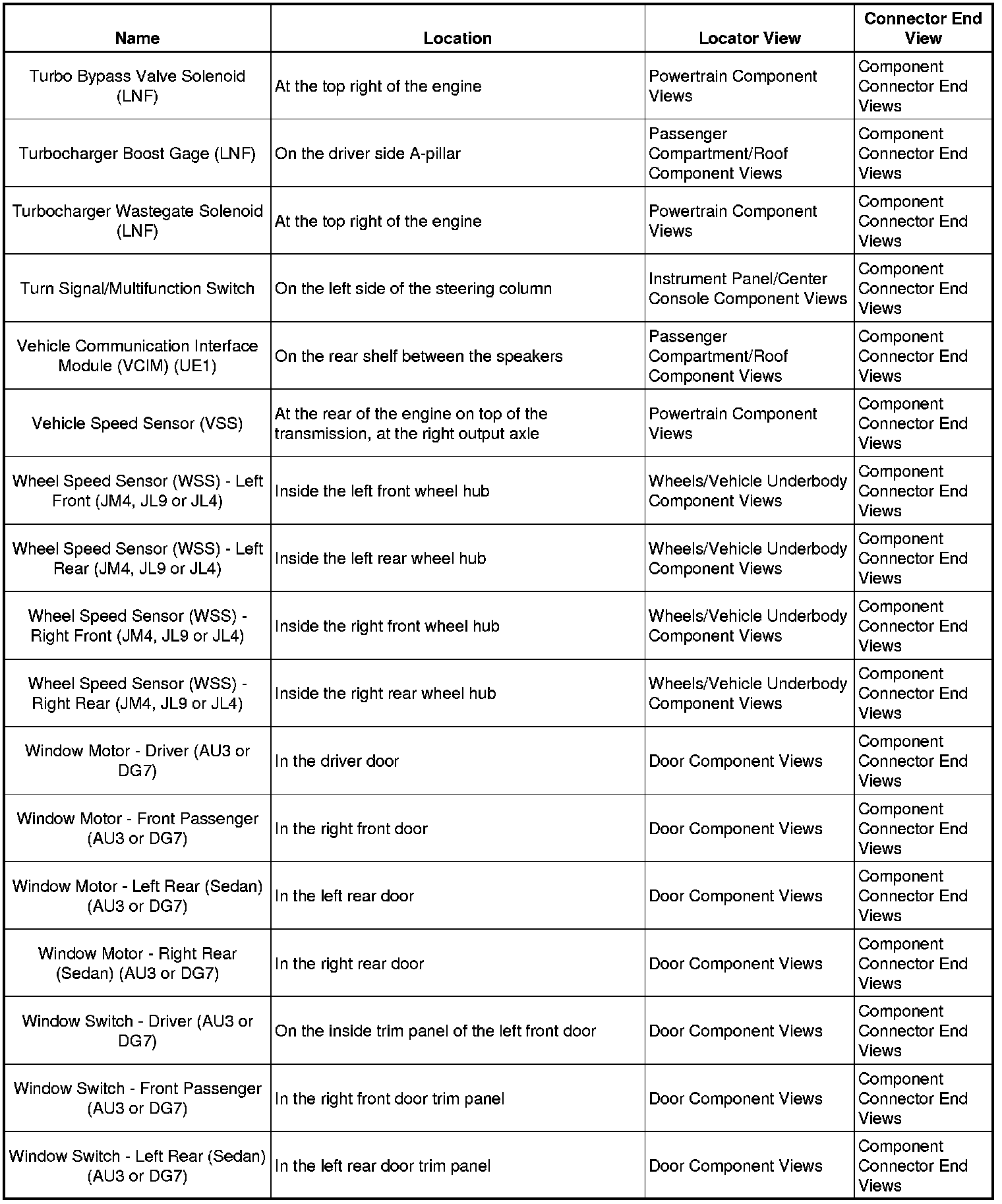

Tu - Wi:

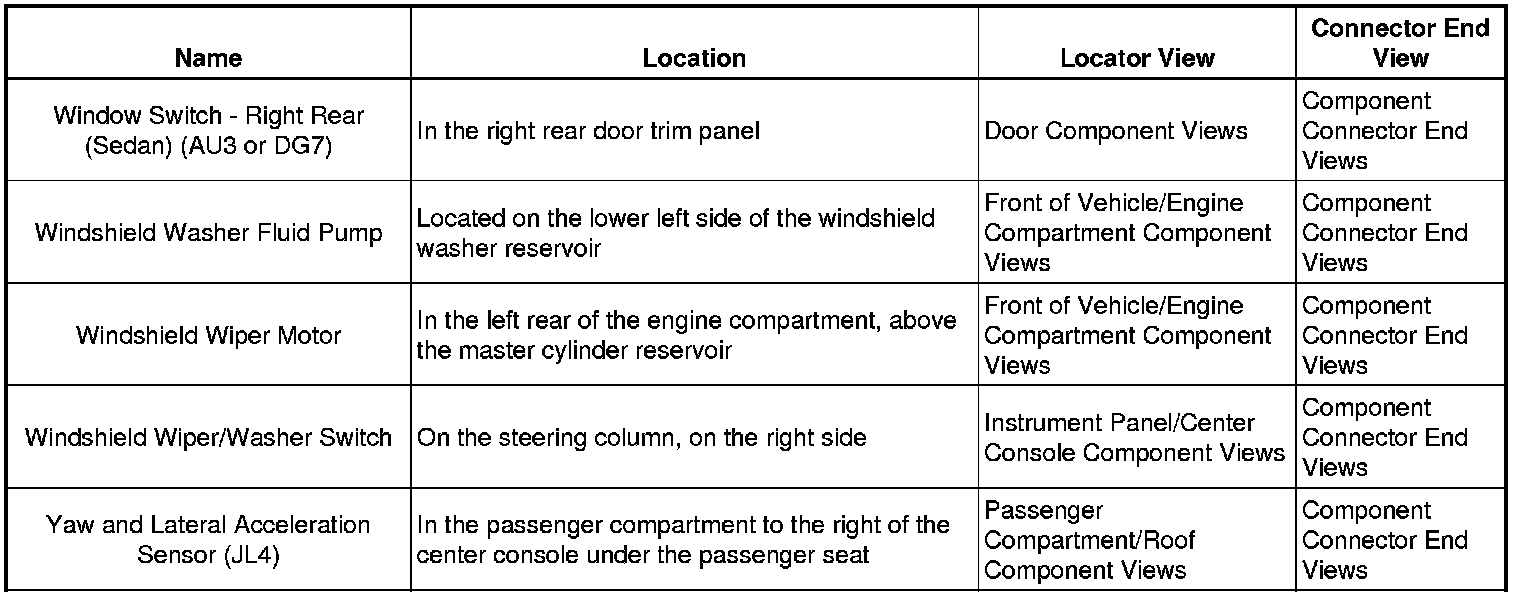

Wi - Ya:
