Harness Routing Views




Harness Routing Views

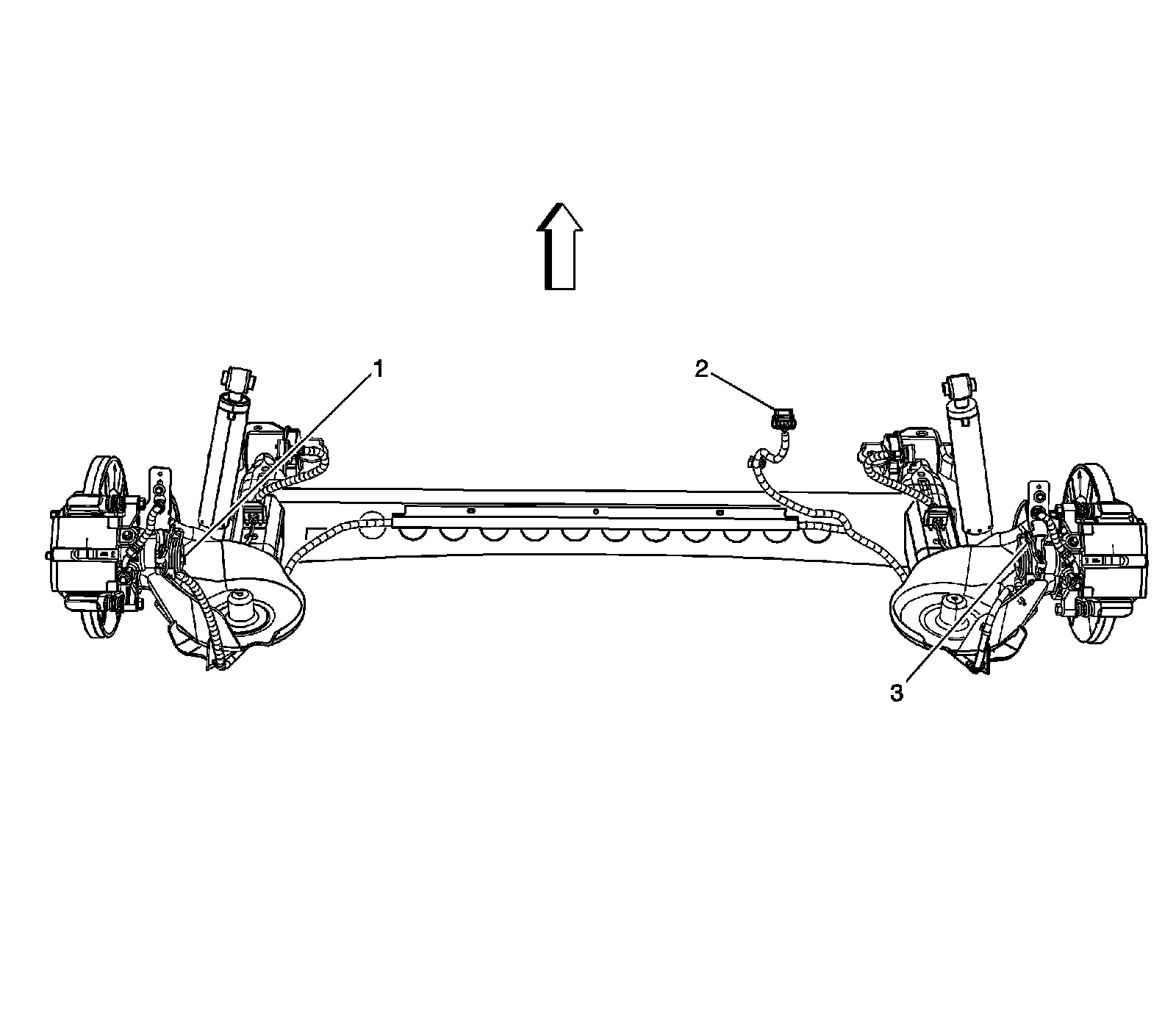

Rear ABS Harness




1 - Wheel Speed Sensor (WSS) - Left Rear
2 - X305
3 - Wheel Speed Sensor (WSS) - Right Rear
