Home >> Chevrolet >> 2009 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Back >> Service and Repair >> Front Seat Back Frame Replacement

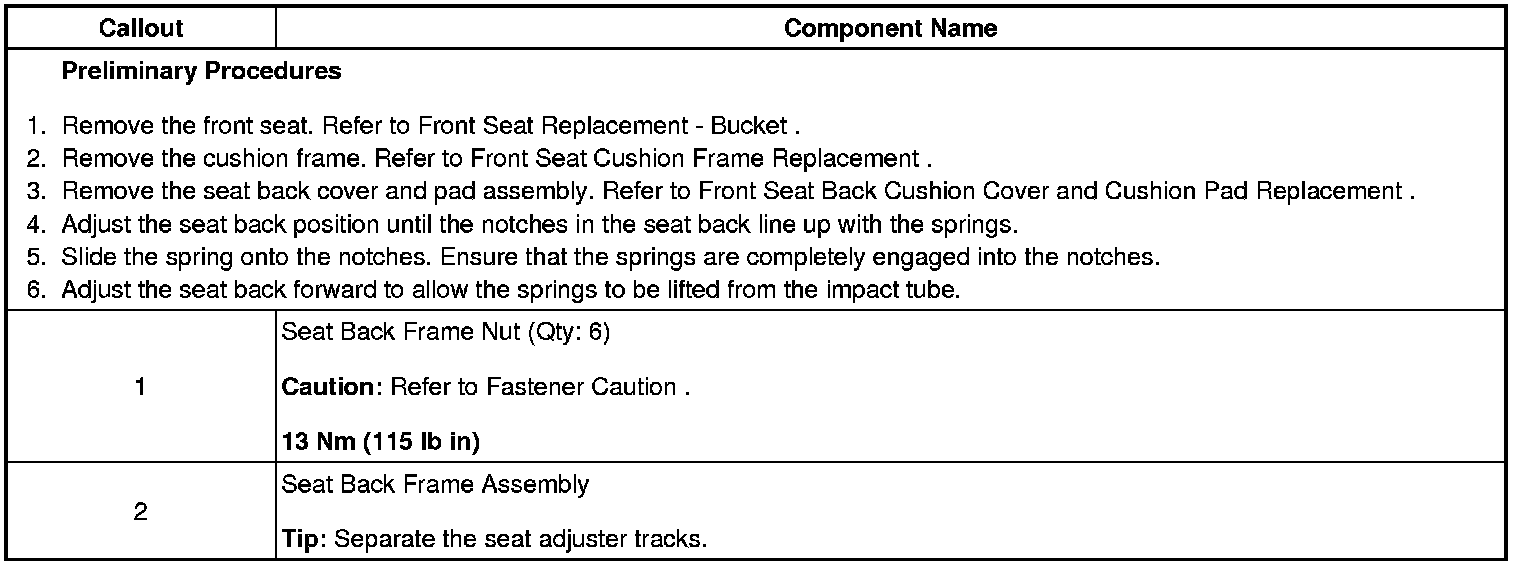

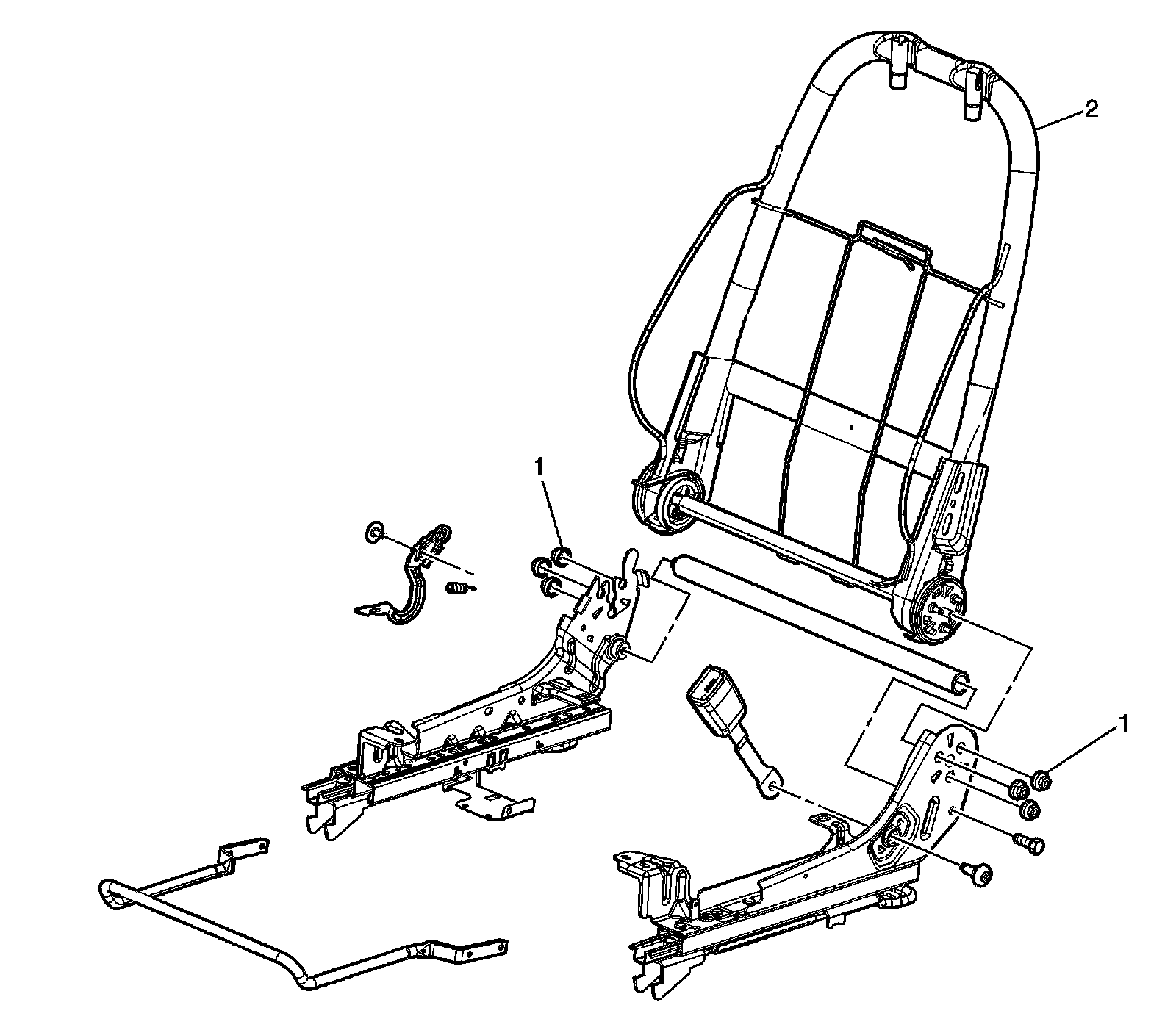

Front Seat Back Frame Replacement

Front Seat Back Frame Replacement
