Home >> Chevrolet >> 2009 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Sunroof / Moonroof Motor >> Diagrams

Sunroof / Moonroof Motor: Diagrams




Component Connector End Views

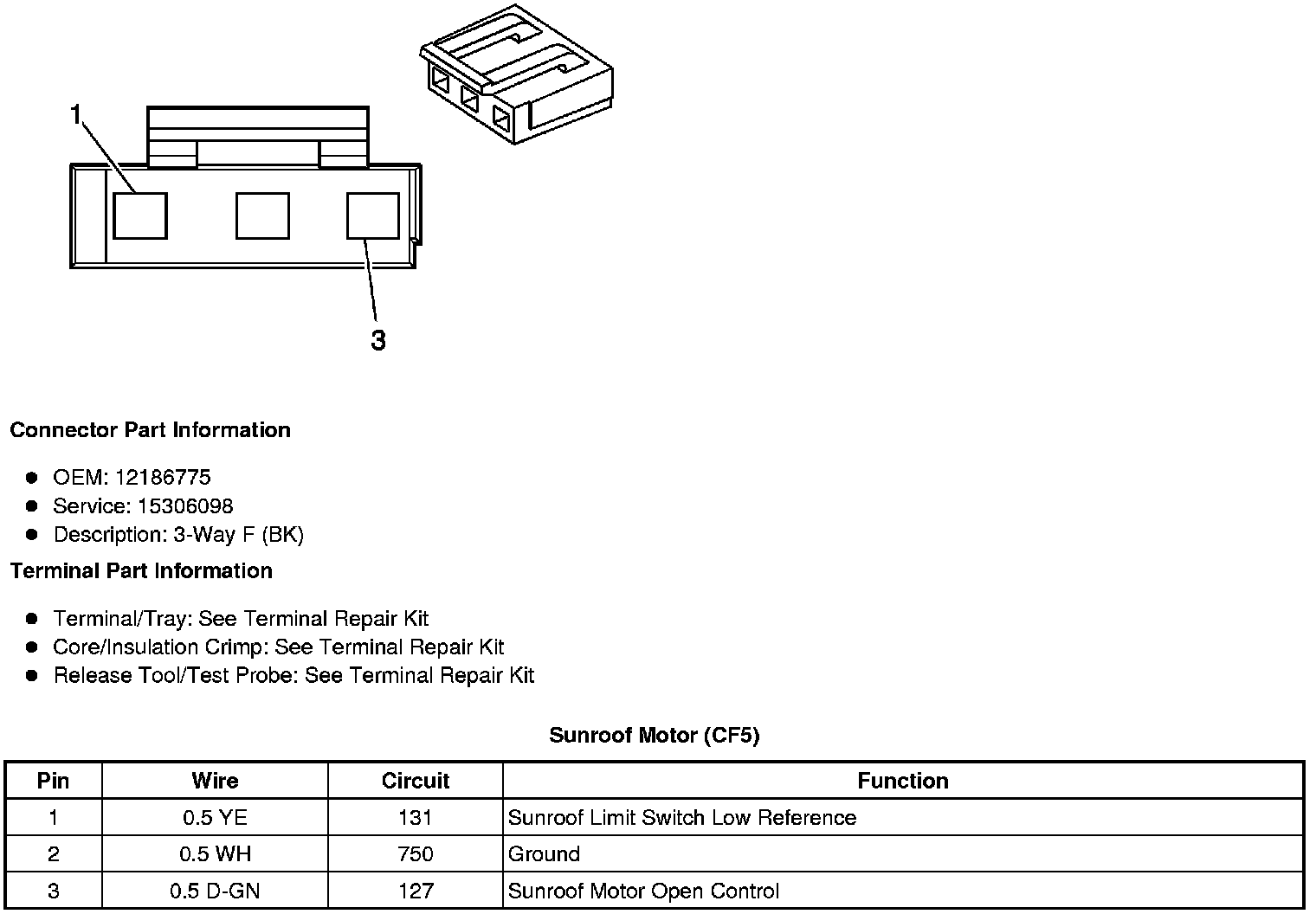

Sunroof Motor (CF5)
