Home >> Chevrolet >> 2009 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Grille >> Service and Repair >> Front Bumper Fascia Grille Replacement - Upper

Front Bumper Fascia Grille Replacement - Upper

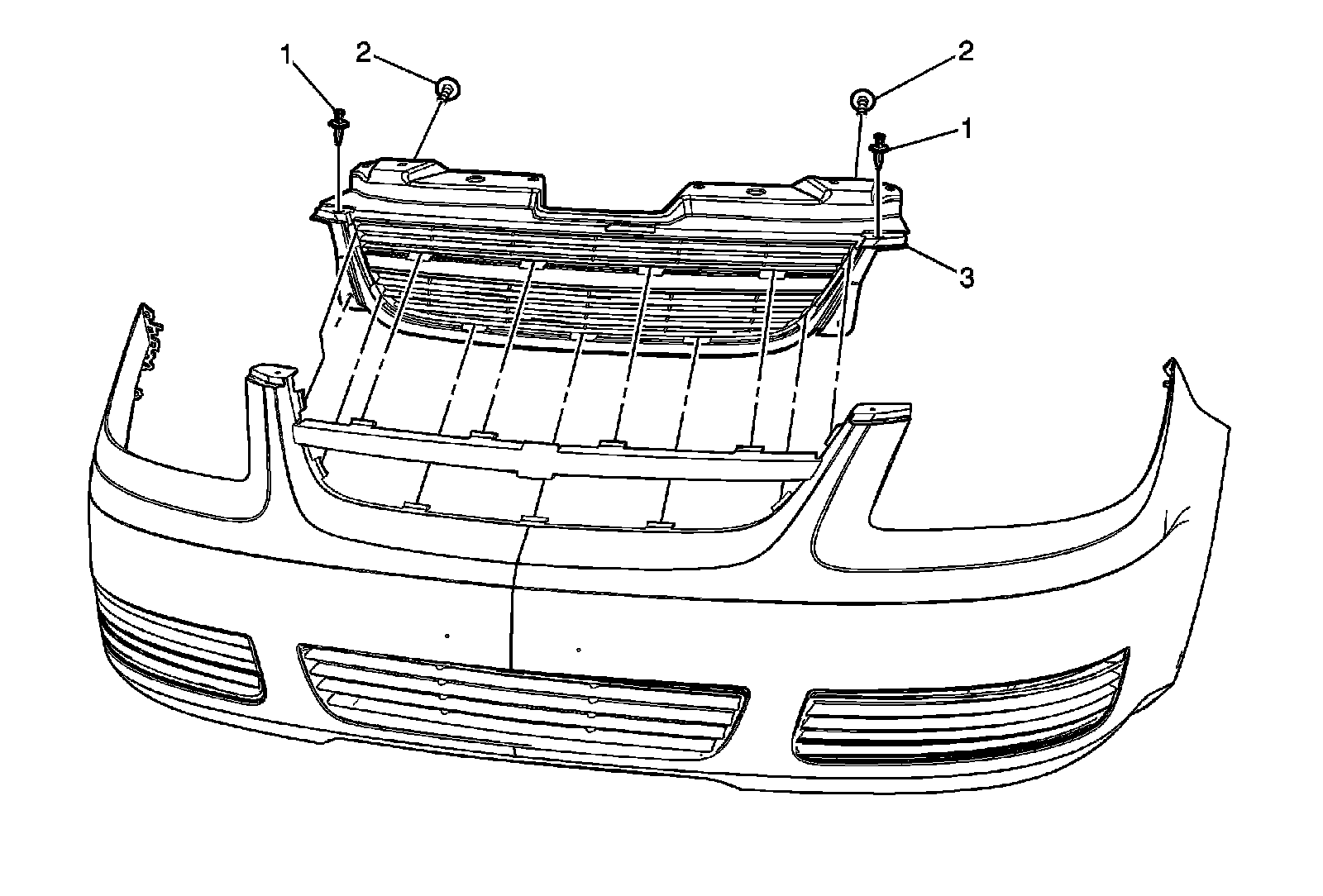

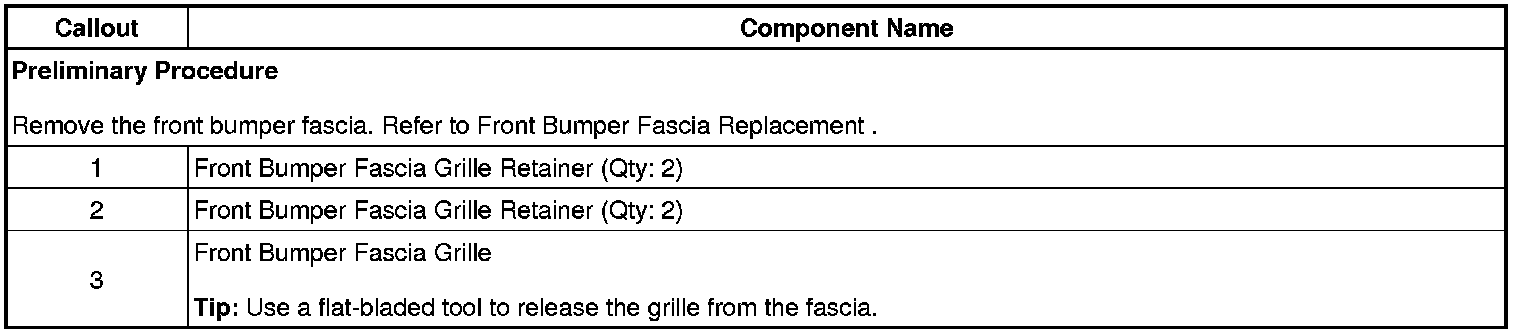

Front Bumper Upper Fascia Grille Replacement (Chevrolet)
