Rear Energy Absorber Replacement


Rear Energy Absorber Replacement

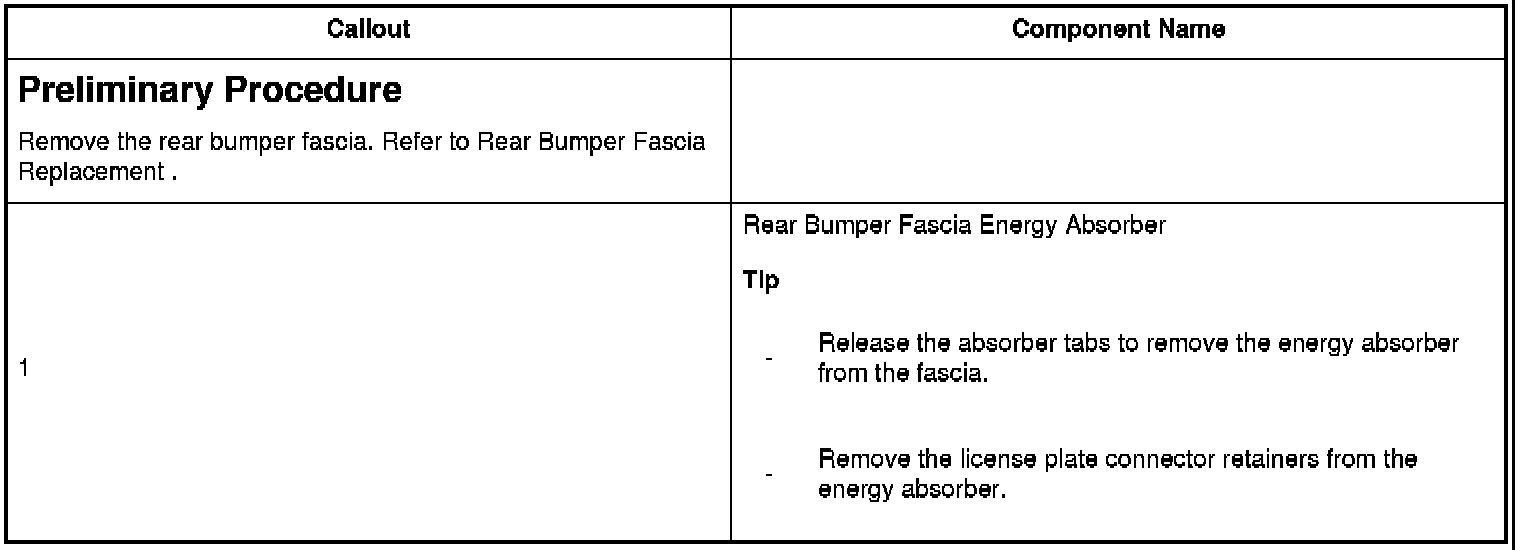

Preliminary Procedure

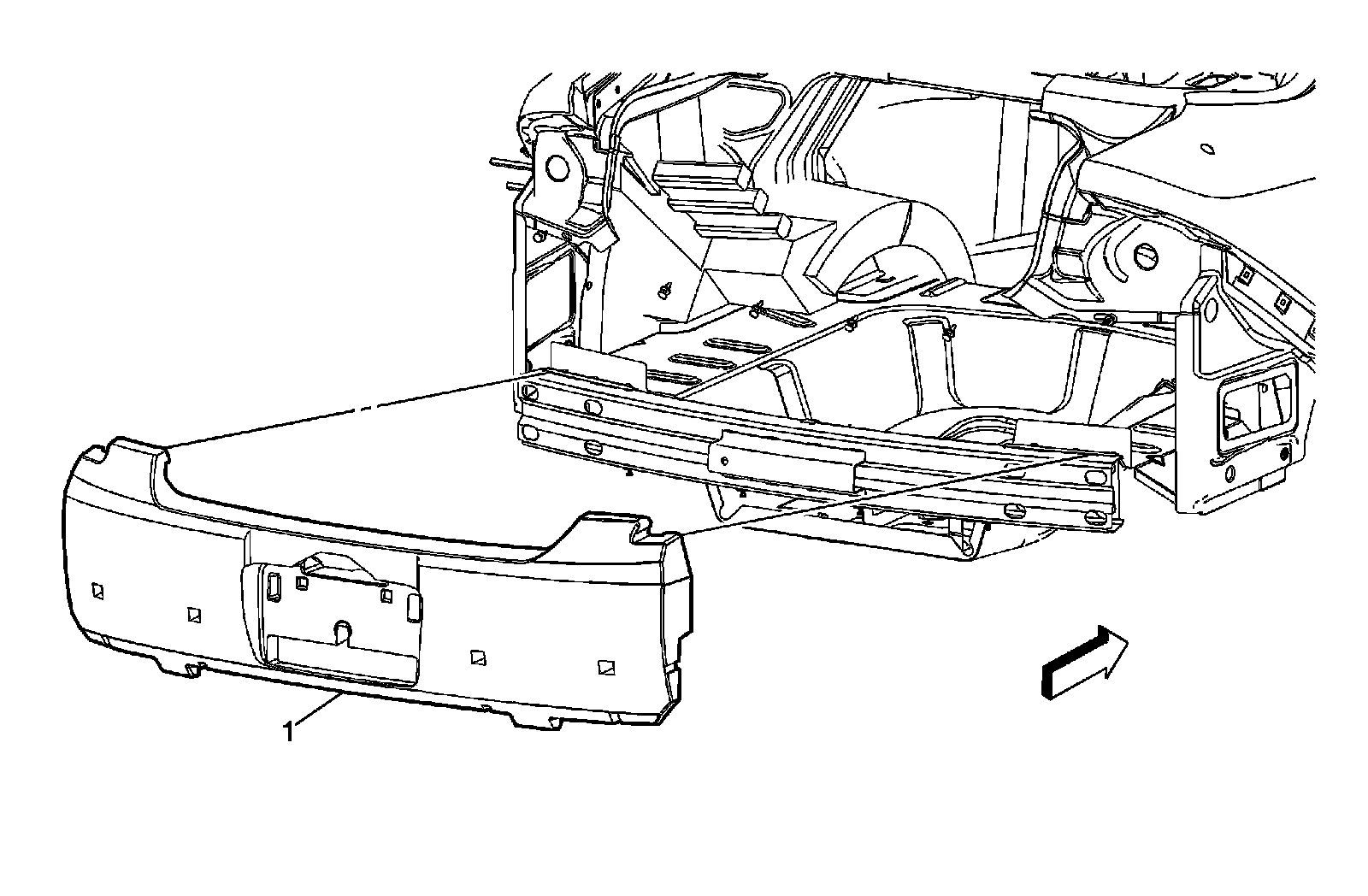

Tip-Release the absorber tabs to remove the energy absorber from the fascia.-Remove the license plate connector retainers from the energy absorber.
