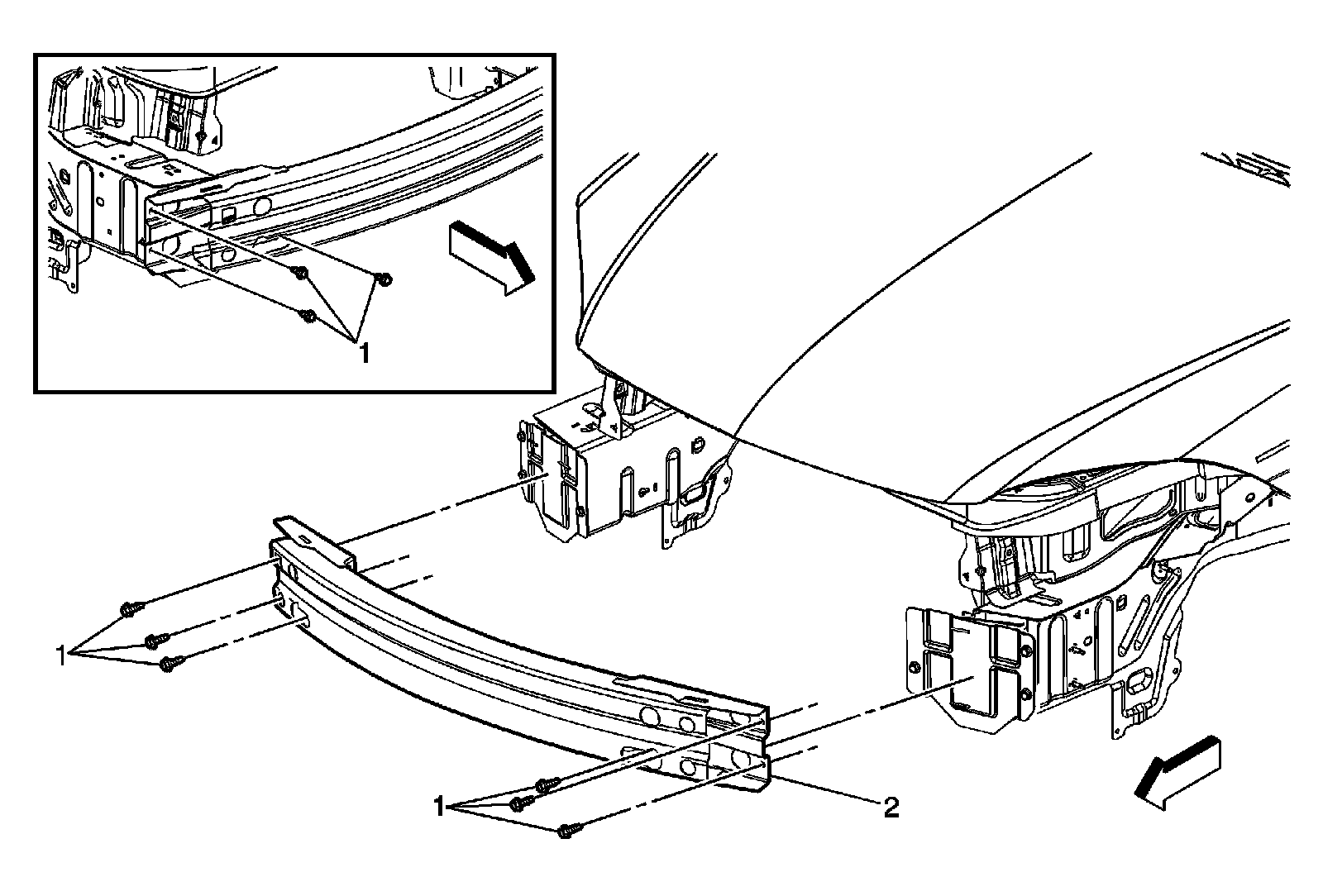

Front Bumper Impact Bar Replacement


Front Bumper Impact Bar Replacement

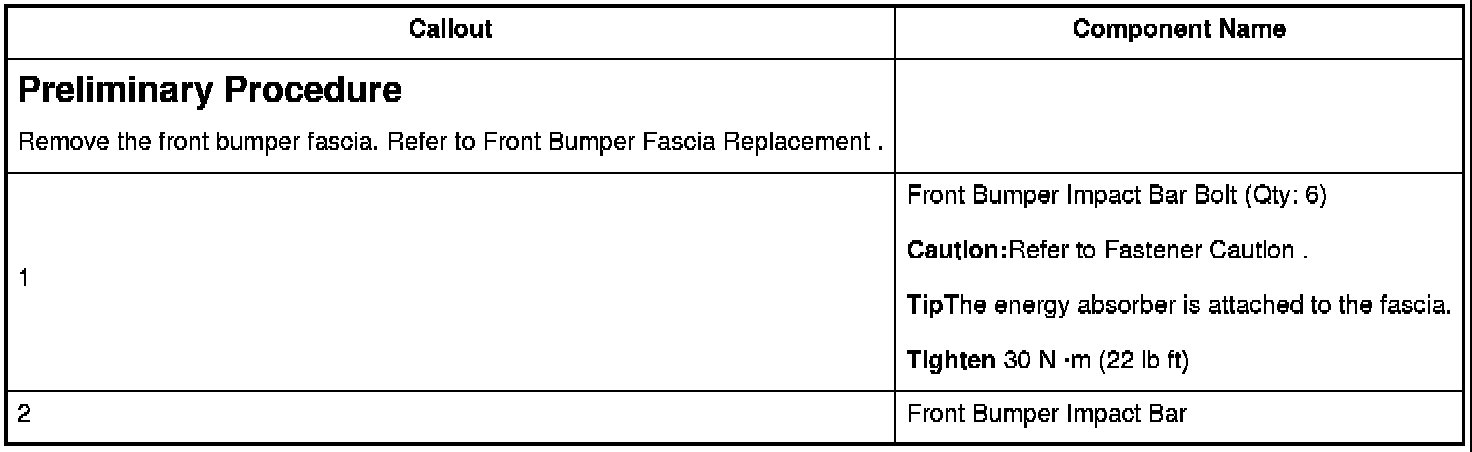

Preliminary Procedure

Caution:Refer to Fastener Caution.

TipThe energy absorber is attached to the fascia.
Tighten
