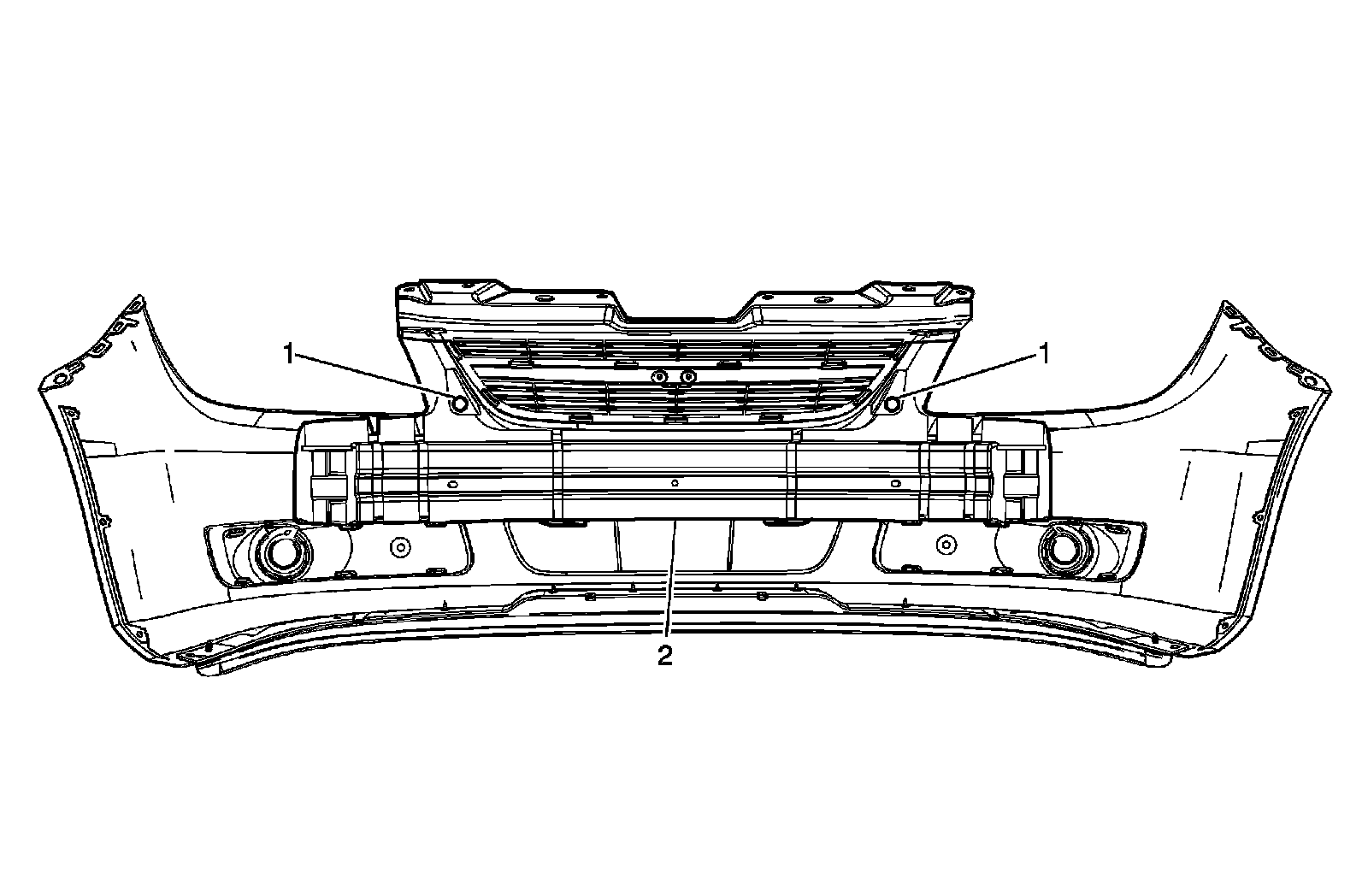

Front Bumper Fascia Energy Absorber Replacement


Front Bumper Fascia Energy Absorber Replacement

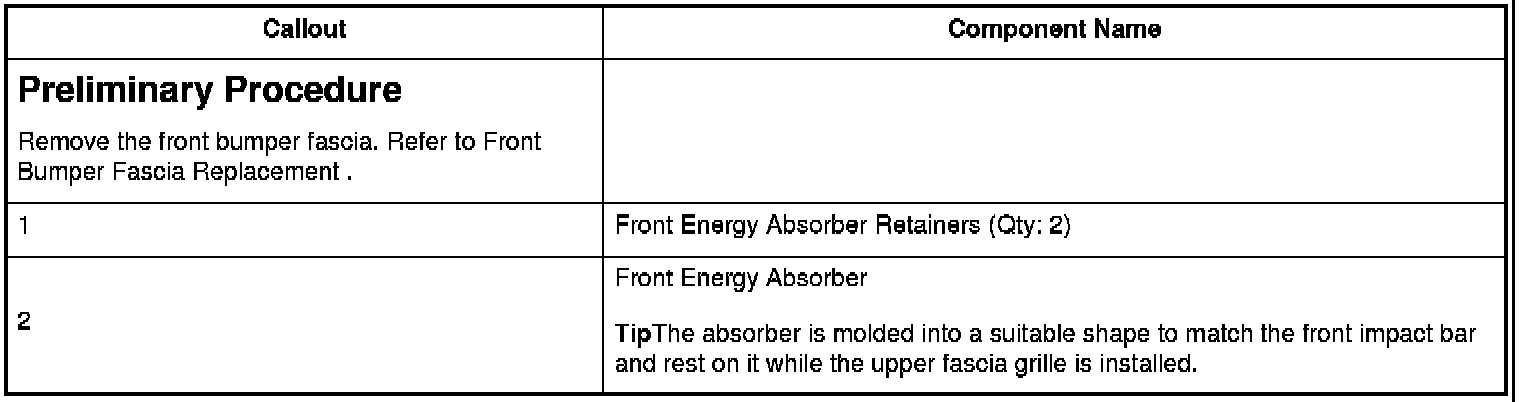

Preliminary Procedure

TipThe absorber is molded into a suitable shape to match the front impact bar and rest on it while the upper fascia grille is installed.
