P0102




DTC P0100, P0102, or P0103

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Initial Inspection and Diagnostic Overview) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Initial Inspection and Diagnostic Overview) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Initial Inspection and Diagnostic Overview) provides an overview of each diagnostic category.

DTC Descriptors
DTC P0100
- Mass Air Flow (MAF) Sensor Circuit

DTC P0102
- Mass Air Flow (MAF) Sensor Circuit Low Frequency

DTC P0103
- Mass Air Flow (MAF) Sensor Circuit High Frequency

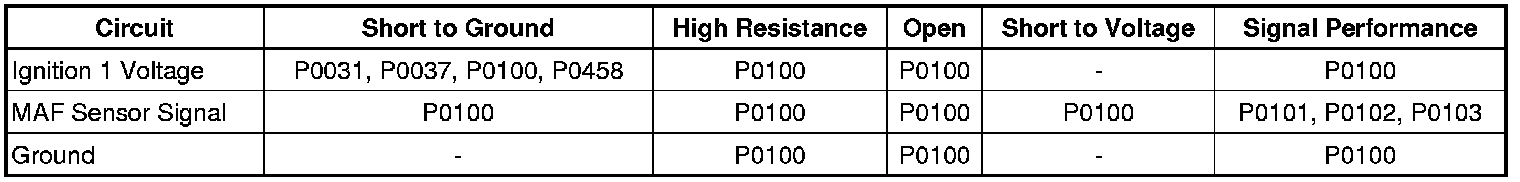

Diagnostic Fault Information





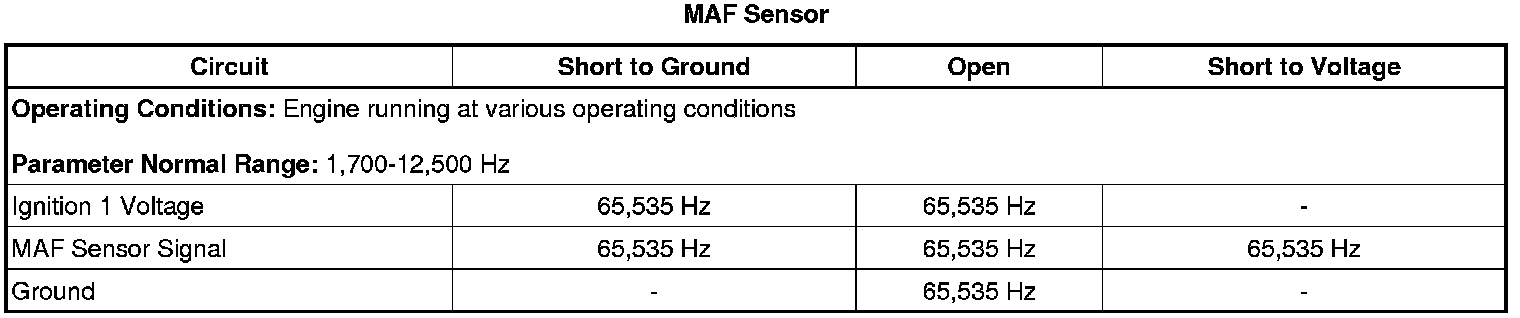

Typical Scan Tool Data





Circuit/System Description

The mass air flow (MAF) sensor is integrated with the intake air temperature (IAT) sensor. The MAF sensor is an air flow meter that measures the amount of air entering the engine. The engine control module (ECM) uses the MAF sensor signal to provide the correct fuel delivery for all engine speeds and loads. The MAF/IAT sensor has the following circuits:

* Ignition 1 voltage
* MAF sensor ground
* MAF sensor signal
* IAT sensor signal
* IAT low reference

The ECM applies 5 volts to the MAF sensor on the MAF sensor signal circuit. The sensor uses the voltage to produce a frequency based on the inlet air flow through the sensor bore. The frequency varies in a range of near 1,700 Hertz at idle to near 12,500 Hertz at maximum engine load.

Conditions for Running the DTCs

* The engine is running.
* The engine speed is greater than 300 RPM.
* The ignition 1 voltage signal is greater than 10.5 volts.
* The above conditions are met for greater than 1 second.
* This DTC runs continuously within the enabling conditions.

Conditions for Setting the DTC

P0100

The ECM detects that the MAF Sensor parameter is equal to 0 Hz for greater than 0.5 second.

P0102

The ECM detects that the MAF Sensor parameter is less than 1035 Hz for greater than 0.5 second.

P0103

The ECM detects that the MAF Sensor parameter is greater than 15,152 Hz for greater than 0.5 second.

Action Taken When the DTC Sets

* DTCs P0100, P0102, P0103 are Type B DTCs.
* The ECM will disable boost control and limit the system to mechanical boost only, resulting in a substantial decrease in engine power.

Conditions for Clearing the MIL/DTC

DTCs P0100, P0102, P0103 are Type B DTCs.

Diagnostic Aids

* The charge air cooler (CAC) is connected to the turbocharger and to the throttle body by flexible ductwork that requires the use of special high torque fastening clamps. These clamps cannot be substituted.
* A steady or intermittent high resistance of 15 ohms or greater on the ignition 1 voltage circuit will cause the MAF sensor signal to be increased by as much as 60 g/s.
* Depending on the current ambient temperature, and the vehicle operating conditions, a MAF sensor signal circuit that is shorted to the IAT signal circuit will increase or decrease the MAF sensor signal that is interpreted by the ECM. Additionally it may cause a rapid fluctuation in the IAT Sensor parameter.

Reference Information
Schematic Reference

Engine Controls Schematics (Electrical Diagrams)
Connector End View Reference

Component Connector End Views (Connector Views)
Description and Operation

* Turbocharger System Description (Description and Operation)
* Boost Control System Description Description and Operation


Electrical Information Reference

* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)

DTC Type Reference

Powertrain Diagnostic Trouble Code (DTC) Type Definitions (Diagnostic Trouble Code Descriptions)
Scan Tool Reference

Control Module References (Programming and Relearning) for scan tool information
Special Tools

J 38522 Variable Signal Generator

Circuit/System Verification

1. Engine operating at idle, observe the scan tool MAF Sensor parameter. The reading should be between 1,700-3,200 Hz.
2. A wide open throttle (WOT) acceleration from a stop should cause the MAF sensor parameter on the scan tool to increase rapidly. This increase should be from 2-6 g/s at idle to greater than 200 g/s at the time of the 1-2 shift.
3. Operate the vehicle within the Conditions for Running the DTC to verify the DTC does not reset. You may also operate the vehicle within the conditions that you observed from the Freeze Frame/Failure Records data.

Circuit/System Testing

1. Verify the integrity of the entire air induction system including all turbocharger components by inspecting for the following conditions:

* Loose or improper installation
* Water intrusion

2. Ignition OFF, disconnect the harness connector at the MAF/IAT sensor.
3. Ignition OFF for 90 seconds, test for less than 5 ohms between the ground circuit terminal B and ground.

• If greater than the specified range, test the ground circuit for an open/high resistance.

4. Ignition ON, verify that a test lamp illuminates between the ignition circuit terminal C and ground.

• If the test lamp does not illuminate, test the ignition circuit for a short to ground or an open/high resistance.

5. Ignition ON, test for 4.8-5.2 volts between the signal circuit terminal A and ground.

• If less than the specified range, test the signal circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the ECM.
• If greater than the specified range, test the signal circuit for a short to voltage. If the circuit tests normal, replace the ECM.

6. Ignition OFF, connect the red lead of the J 38522 to the signal circuit terminal A at the MAF/IAT sensor harness connector. Connect the battery voltage supply to B+. Connect the black lead to ground.
7. Set the J 38522 Signal switch to 5 volts, the Frequency switch to 5K, and the Duty Cycle switch to Normal.
8. Engine Idling, observe the scan tool MAF Sensor parameter. The scan tool MAF Sensor parameter should be between 4,950-5,025 Hz.

• If the MAF Sensor parameter is not within the specified range, replace the ECM.

9. If all circuits test normal, test or replace the MAF sensor.

Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.

* Mass Airflow Sensor Replacement (Service and Repair)
* Control Module References (Programming and Relearning) for ECM replacement, setup, and programming
