X160
X160

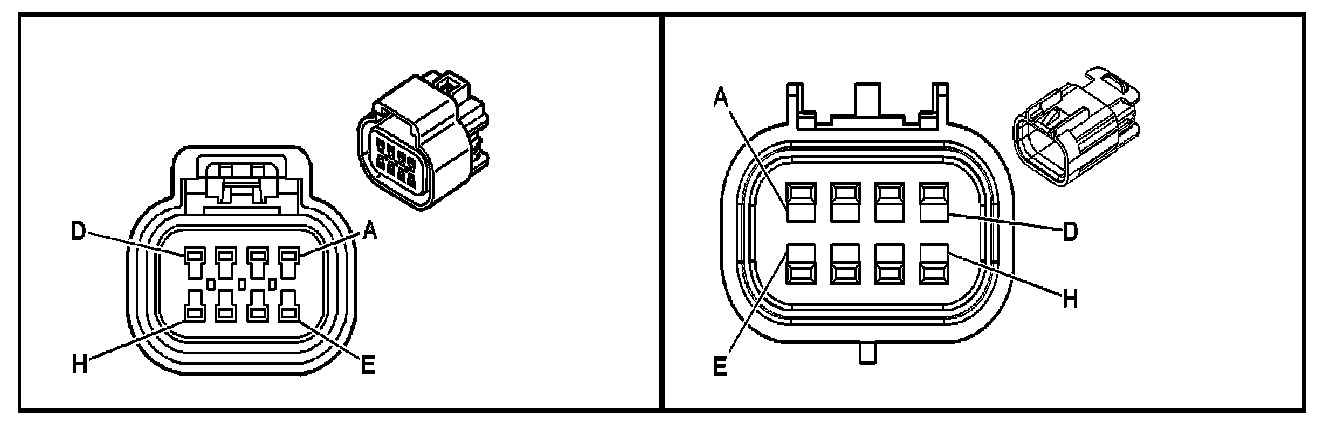

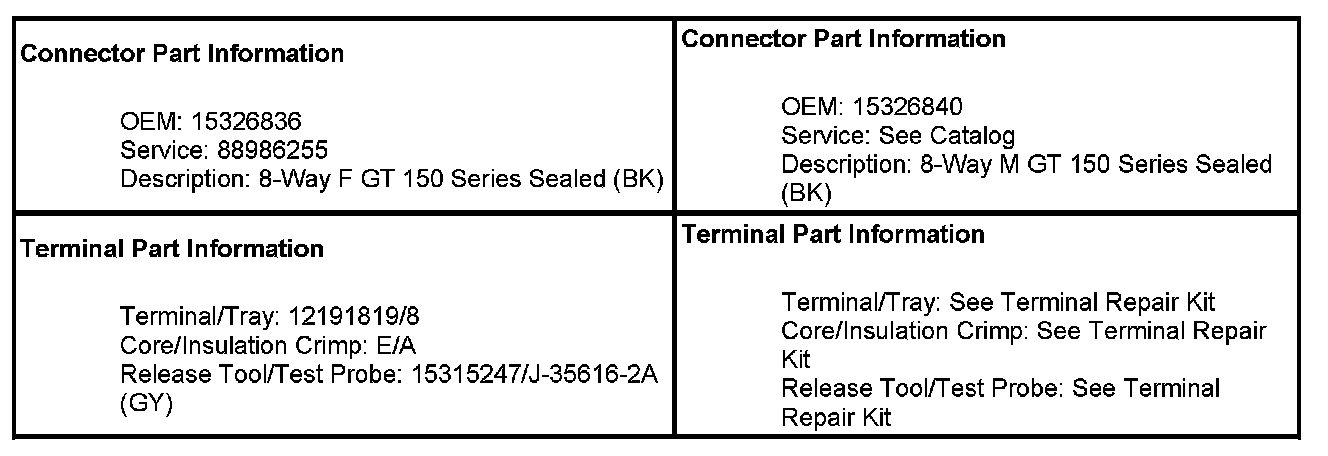

Inline Harness Connector End Views

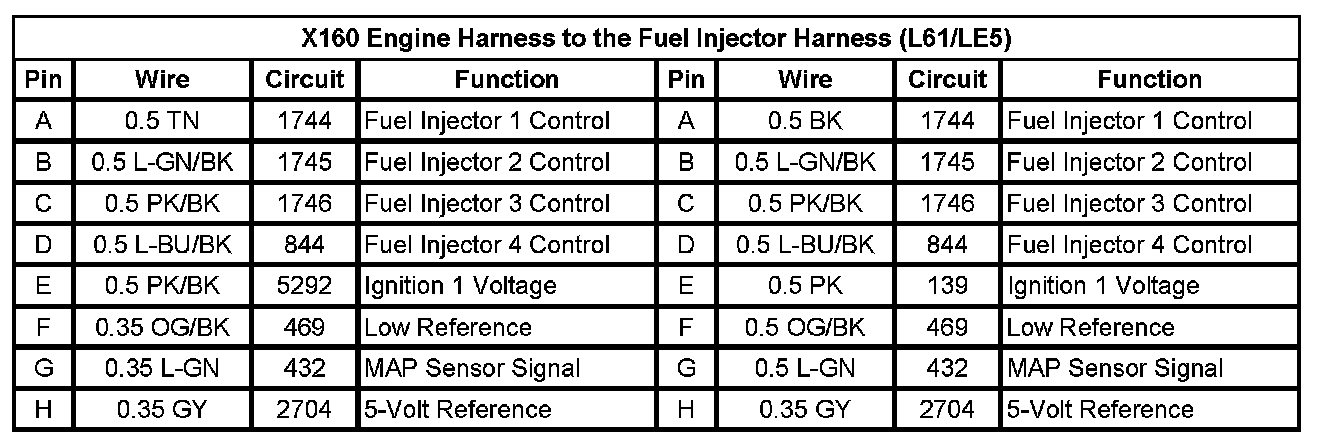

X160 Engine Harness to the Fuel Injector Harness (L61/LE5)
