Seat Belt Buckle Switch: Diagrams



Component Connector End Views - Continued

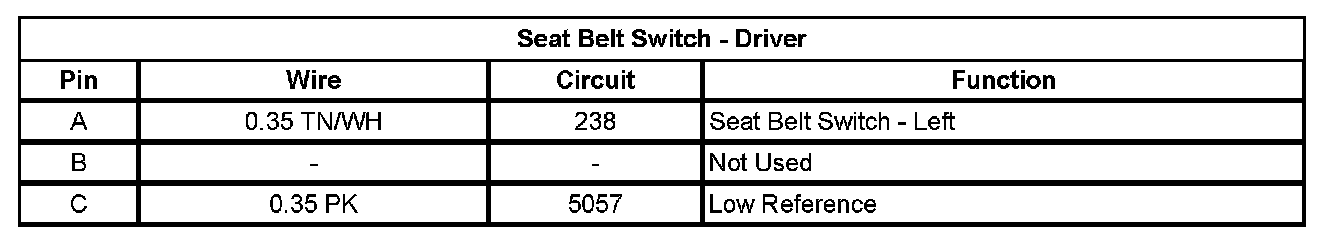

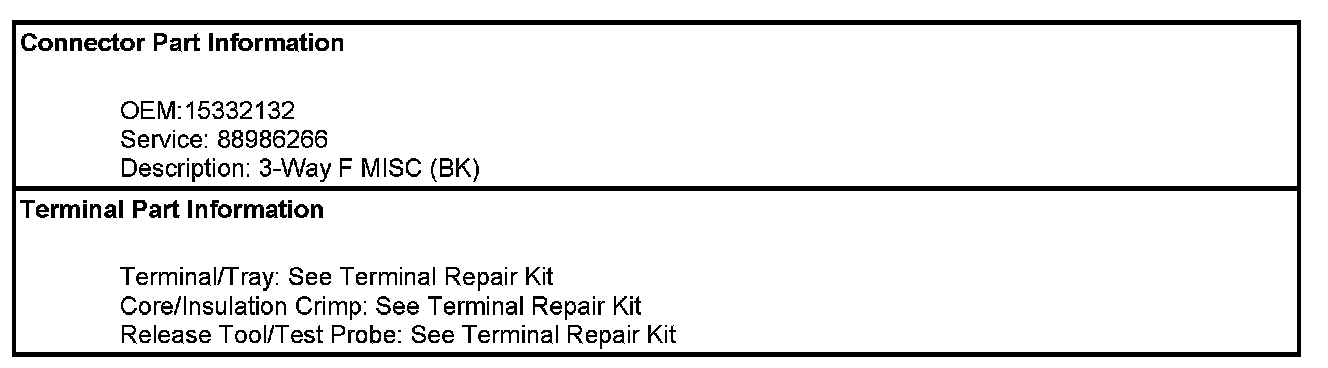

Seat Belt Switch - Driver

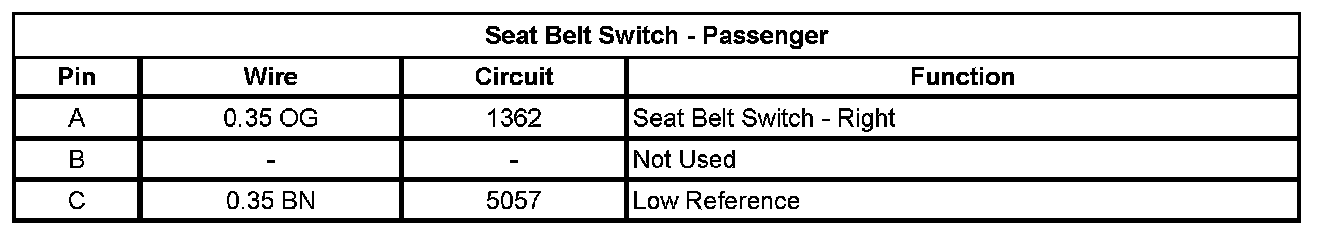

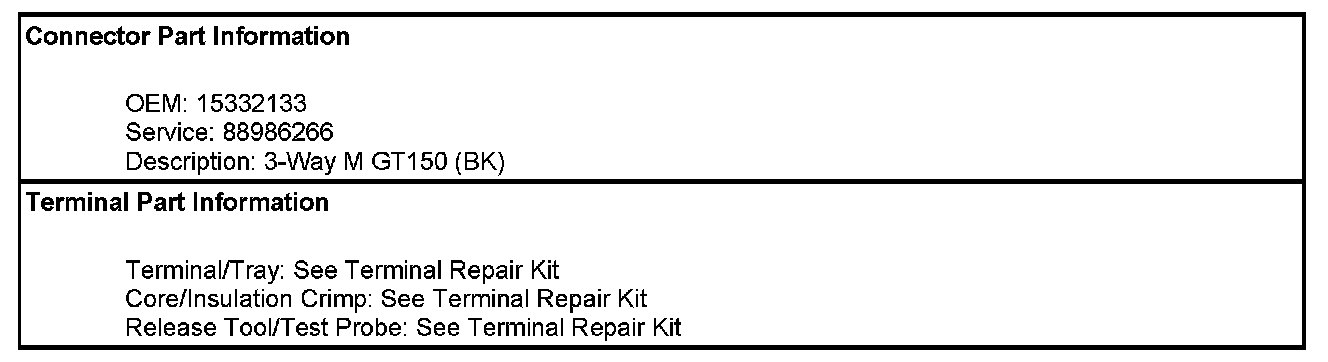

Seat Belt Switch - Passenger
