Home >> Chevrolet >> 2008 >> Cobalt L4-2.4L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Turn Signal Switch >> Diagrams

Turn Signal Switch: Diagrams

Component Connector End Views - Continued

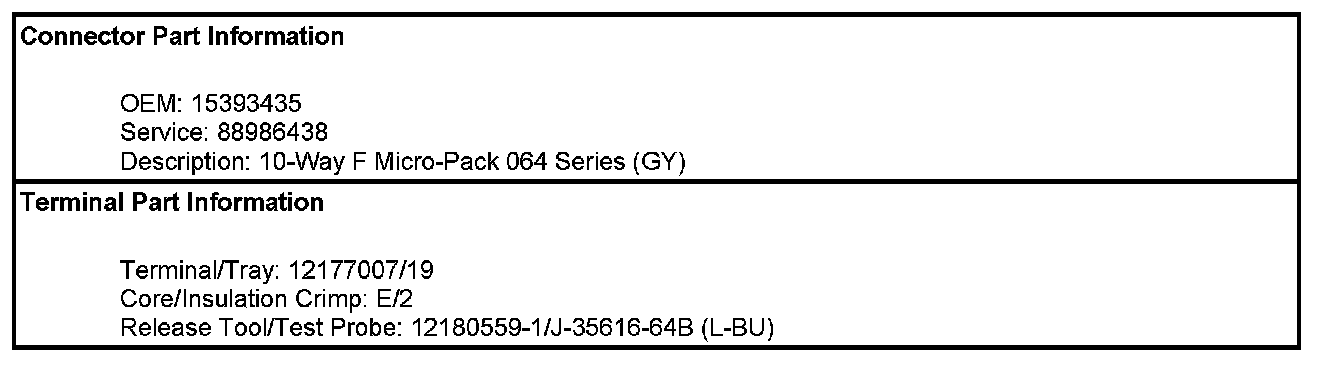

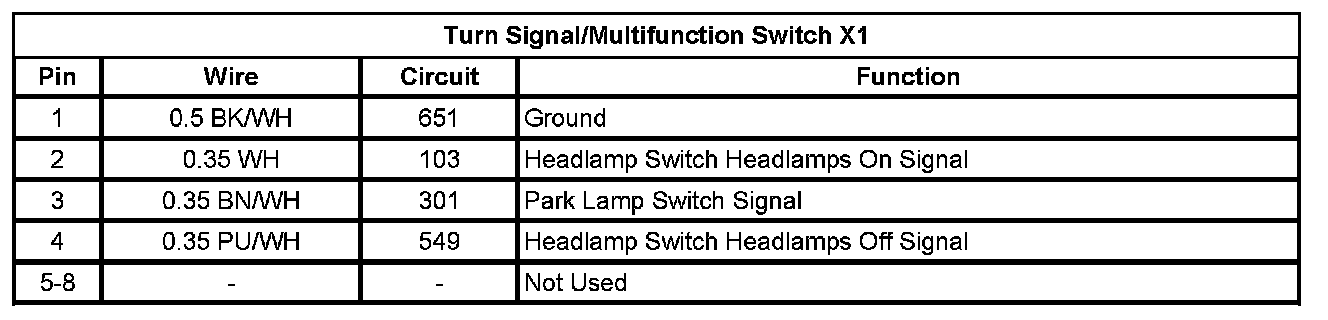

Turn Signal/Multifunction Switch X1

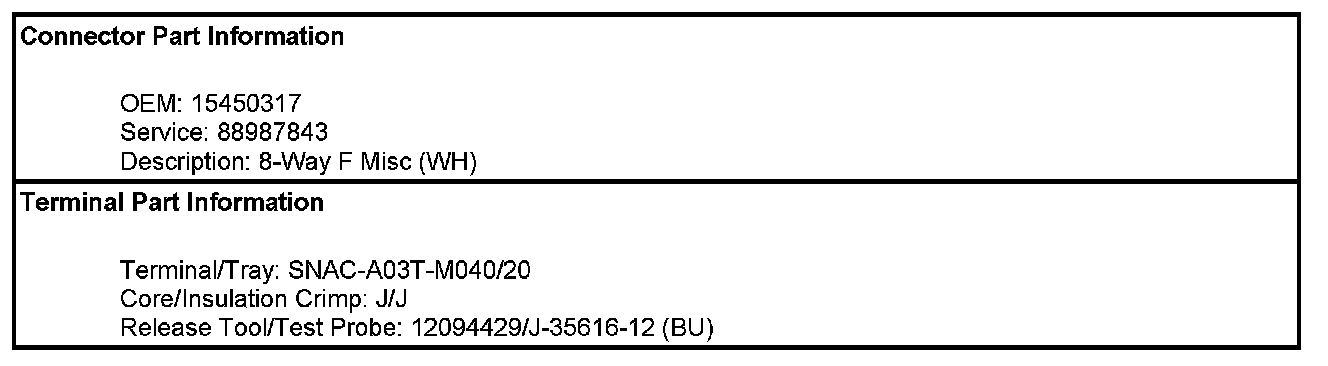

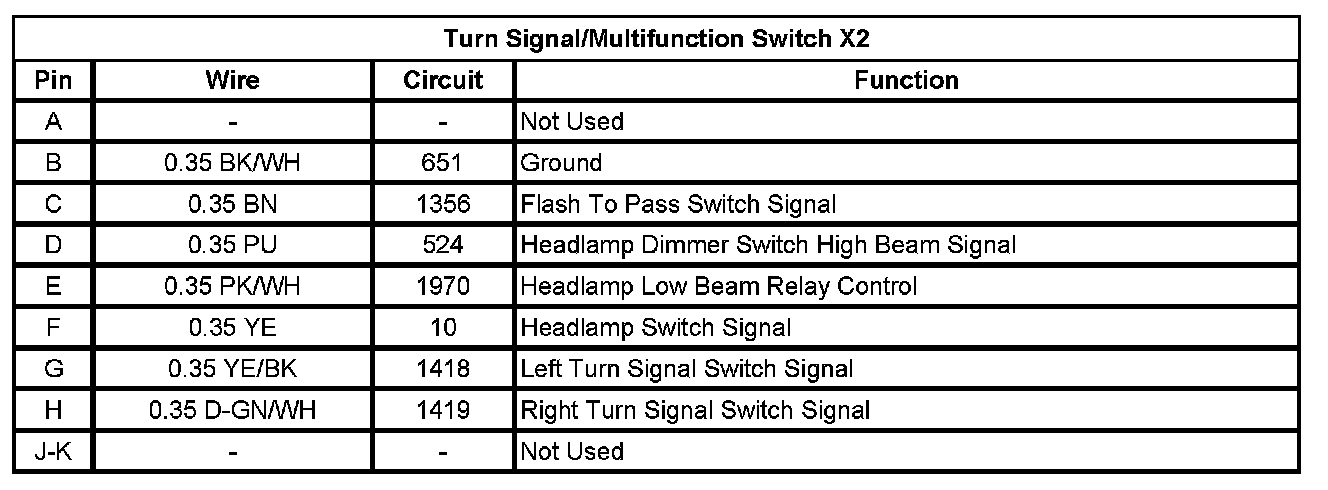

Turn Signal/Multifunction Switch X2
